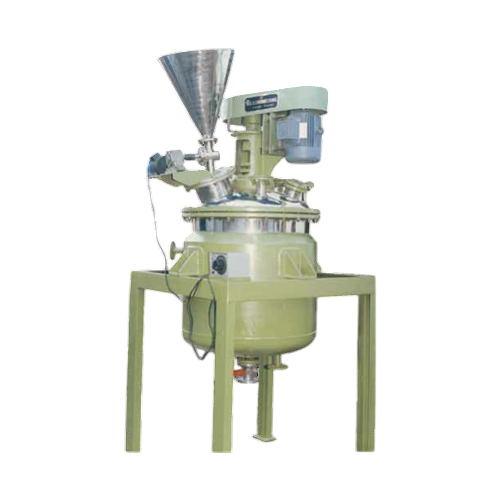

Reaction Vessel By Prakash Industries

Our organization have been actively engaged in manufacturing, exporting and supplying a premium quality Reaction Vessel in Mira Bhayandar, Maharashtra, India.

We manufacture Reaction vessel for 50 Ltr Capacity to 60000 Ltr capacity
Material of construction SS 304, SS316 and MS.

REACTION VESSEL are manufactured using mild steel or stainless steel as per the requirement of our customers. These products are available at competitive market prices. These product are fully tested hydraulically by our experts, to ensure high standards of quality. These products are known for their unique design and dimensional accuracy.

Drive:
a c Complete dry unit consist of tapered, Roller Bearing, Bearing Housing with bearing, Flexible coupling Stuffing, Box with gland pulling arrangement, Lenton ,Bottom tripond with PTFE bush

Welding:
Welding work is performed by Argon Arc process for S. S. Parts.and rest electric are using suitable electrodes.
Limpet Coil Welding:
a c Limpet welding work is performed by using high grade filler wire.
a c Jacket Closure Ring Welding work is performed by using high grade filler rods to withstand closure ring tension.

Stiffener Ring:
a c Stiffener ring is provided on Inner Shell of Jacket in between Inner Shell and Outer Jacket to Intensify main vessel and to provide uniform circulation and minimize stagnation of heating or cooling medium.

Finish:
a c All weld joints will be finished from inside and outside, S S. Parts is cleaned from inside and outside. Two coats of primer/ red oxide will be given on M.S. parts from outside.

Testing:
a c Equipment are tested Hydraulically as per design Pressure
Service:
a c Complete after sales servicing is provide by our fully trained and competent engineers.
