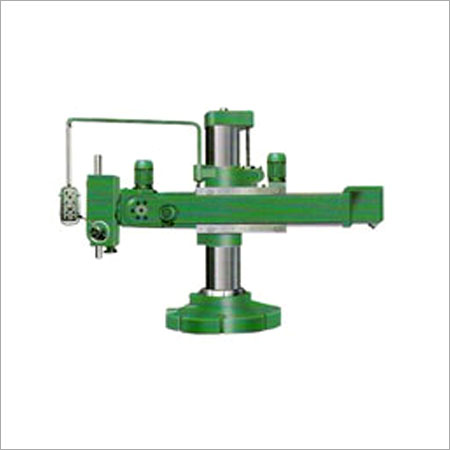

Radial Drill Machine (Br- 38) For Industrial Use

We are the noticeable Exporter, Distributor, Supplier and Trading Company a wide ranges of Radial Drill Machine (BR- 38) in Ahmedabad, Gujarat, India. The offered item is manufactured utilizing the finest evaluation crude material and propelled innovation.

Model :BR- 38
Capacity :38mm
Coloumn Diameter :170mm
Spindle Nose :MT-4
Dist. From Spindle :620mm
to Pillar Surface
Spindle Travel :250mm
No. Of Spindle Speed :8
Coloumn Diameter :127mm
Spindle Speed (RPM) :110-2125
Base To Spindle Nose :810mm
Drilling Motor :1 & 0.5 H.P.
Diameter of Ram :78 mm

WORKING RANGE

Dist. From Spindle to base (Max/Min) :950/240
Dist. From Colum to Spindle :825/385
Max. Drilling Radius :910

ELECTRIC

Drill Head Motor (1440RPM) :1.5
Lifting of arm Motor (1440 RPM) :0.5 H.P
V-BELT Section :B-47& B-24

OTHER

Machine Measurement 1280x930x1855
Size of box TABLE 300x300x385


This model can make hole a little more than BR 25 and the making hole capacity is 38mm. The column diameter is 170mm and the distance of drilling head from the spindle is 620mm which helps for precise making hole operation. The number of spindle speed that can be obtained in this model is 8. The spindle speed is 110-2125 rotations per minute and the diameter of ram is 78mm. The spindle is made of EN forged steel and all the parts are processed with the help of imported grinding instruments to make it easy to fix.
