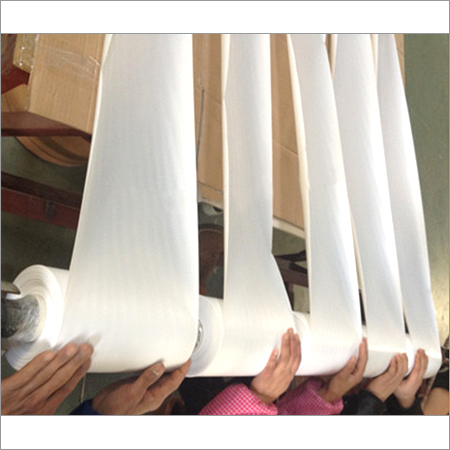

Ptfe Film - 0.05-0.5mm Thickness, Natural Color Options Available | High Density Unsintered Teflon Film With Excellent Dielectric Strength And Versatile Electrical Applications

We are one of the most well-distinguished companies in the market that are into supplying a huge spectrum of PTFE Film in Tianjin, China. High density unsintered extruded PTFE film is a versatile, high quality, unsintered PTFE film with excellent dielectric strength and conformability.A These qualities make it suitable for a variety of electrical applications such as coil winding, wrapping wire harnesses, wire bundles and primary, high temperature cable and high grade heating cable insulation.A The film has been widely used for electric hookup wire in aerospace and military industries. The chemical resistance and microporosity of this film also make it suitable for use in Zinc-air battery applications.

Specification
ItemUnitSpecificationTolerance
Thicknessmm0.05i 0.5A 0.005
Width mma Y5A 2%
Lengthma Y50
ColorNatural color
Black, white, blue, green, red, yellow, brown, orange, purple, gray
Main properties
Item Unit Value
Tensile strengthLongitudinal MPa a Y20
Traverse a Y1.0
Elongation
at breakLongitudinal % a Y100
Traverse a Y400
Apparent densityg/cm3 1.0i 1.6A 0.05
Longitudinal shink rate %a 30
Dissipation factori 1MHzi ---a 0.0003
Dielectric constant(1MHzi ---a 2.2
Dielectric strength (DC) kV/mm a Y80
Volatile loss % a 0.1
