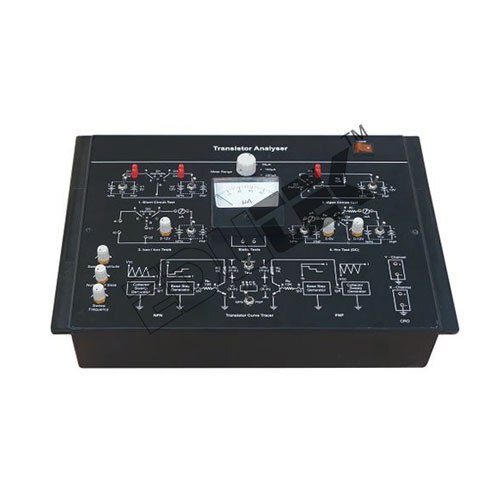

Pnp & Npn Transistor Tester - 500 Hz To 4 Khz Step Frequency, 0-20 V Collector Sweep Amplitude, 16 Selectable Steps, 16 Test Points, Micro-ammeter 0-300 µA
Price: 50.0 INR / Piece
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| Output | Visual indication and measurement |
| Interface | Direct insertion socket |
| Resolution | Discrete ON/OFF |
| Input | Transistors (PNP & NPN types) |
| Thermal Conductivity | Standard PCB level |
| Usage | Semiconductor testing |
| Operating Temperature | 0AdegC to 50AdegC |
| Features | Easy operation, reliable testing, clear LED indication |
| Display Type | Other, LED indicator |
| Power Source | DC powered |
| Power Supply | External DC supply |
| IP Rating | IP21 |
| Components | Test socket, indicator LEDs, main PCB, enclosure |
| Response Time | Instant (< 1 sec) |
| Charging Voltage | 12 V DC |
| Product Type | Electronic Tester |
| Application | Laboratory, Service Centers |
| Rated Voltage | 12 V DC |
| Supply Voltage | 12 V DC |
| Size | Handheld, compact |
| Dimension (L*W*H) | 14 cm x 8 cm x 3.5 cm |
| Function | Testing PNP & NPN transistors |
| Color | Blue and white |
| Weight | Approx. 180 grams |
| Capacity | Single transistor at a time |
| Current Rating | Up to 2A test current |
| Thickness | 3.5 cm |
| Frequency | DC Testing |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features
PNP & NPN TRANSISTOR TESTER
Step Frequency: 500 Hz
4 KHz Sweep Frequency: 500 Hz
4 KHz Collector sweep amplitude: 0
20 V No. of steps: 0
16 steps (selectable) Transistor Types: Only small plastic packages having power ratings below 500 Mw.
On board micro-ammeter: 0
300 A (moving coil type) Collector-base Supply: 12 V max
Emitter-base Supply: 5 V max
Test Points: 16 nos.
