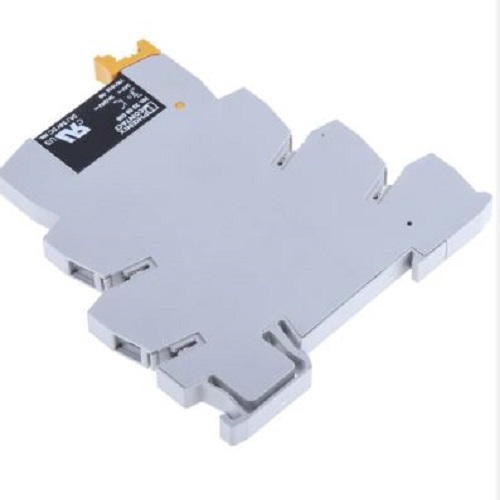

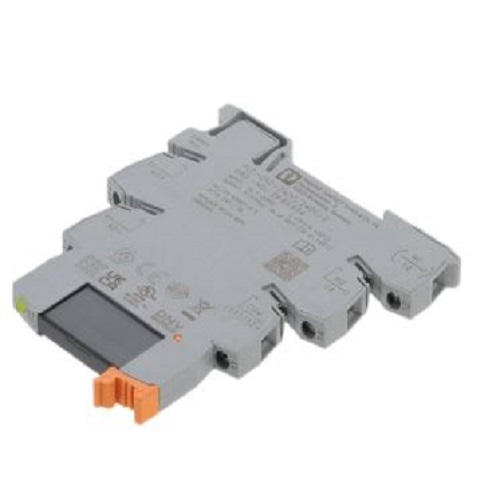

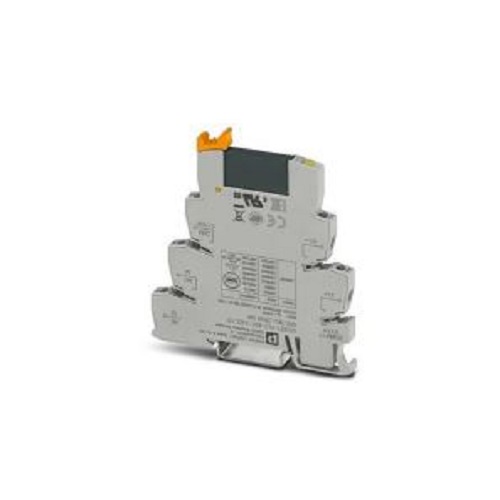

Phoenix Solid-state Relay - Ambient Temperature: 25 C To +60 C Celsius (Oc)
Price: 750.00 INR / Set
(750.00 INR + 0% GST)
Get Latest Price
1 Pack Contains :
1
Minimum Pack Size :
10
In Stock
Product Specifications
| Contact Resistance | N/A Ohm (I(c)) |
| Dielectiric Strength | 2.5 kV AC Kilopascals (KPa) |
| Ambient Temperature | 25 C to +60 C Celsius (oC) |
| Mechanical Life | N/A Seconds |
| Working Temperature | 25 C to +60 C Celsius (oC) |
| Protect Feature | Other |
| Contact Form | 1 NO (1 Form A) |
| Power Consumption | 0.2 W (24 V 8.5 mA = 0.204 W) Watt (W) |
| Color | Gray |
| Coil Voltage | N/A Volt (V) |
| Contact Material | N/A |
| Coil Power | N/A |
| Power Rating | Up to 99 W at 33 V DC / 3 A |
| Product Type | Solid-State Relay |
| Insulation Resistance | 100 M |
| Theory | Solid State Relay |
| Usage | PLC output interfacing and signal isolation, Industrial automation and machine control, Conveyor and material handling systems, Packaging and assembly machines, Process control systems, Solenoid valve and DC actuator control, DC motor and lamp switching (within rated specifications), Control panel and DIN rail installations, High-speed electronic switching applications, Factory automation and instrumentation systems |
| Contact Load | Other |
| Operate Time | 20 s Seconds |
| Terminal Type | General Purpose |
| Supply Terminal | A1 Positive (+24 V DC) A2 Negative (0 V DC) |
| Size | Miniature |
| Usage & Applications | PLC output interfacing and signal isolation, Industrial automation and machine control, Conveyor and material handling systems, Packaging and assembly machines, Process control systems, Solenoid valve and DC actuator control, DC motor and lamp switching (within rated specifications), Control panel and DIN rail installations, High-speed electronic switching applications, Factory automation and instrumentation systems |
| Rated Voltage | 24 V DC Volt (V) |
| Operating Temperature | 25 C to +60 C Celsius (oC) |
| Cable Type | N/A |
| Dimension (L*W*H) | (W H D): 6.2 80 94 mm Millimeter (mm) |
| Weight | 36 g Grams (g) |
| Phase | N/A |
| Display Type | LED indicator |
| Frequency | N/A Hertz (HZ) |
| Warranty | 1 year |
| Features | The Phoenix Contact PLC-OSC-24DC/24DC/2 (Part No. 2966634) is a compact solid-state relay interface module designed for industrial automation applications. It features a 24 V DC control input and a 3 33 V DC output with up to 3 A switching capability. The module provides reliable electronic switching with fast response time, making it suitable for frequent switching operations. Key features include galvanic isolation between input and output (2.5 kV), reverse polarity protection, integrated surge suppression, and an LED status indicator for easy monitoring. Its slim 6.2 mm DIN-rail mounting design saves panel space and allows high-density installation |
| Rated Current | 3 A DC Ampere (amp) |
| Conductor | Screw connection |
| Material | Polyamide (PA), industrial-grade insulating plastic |
| Payment Terms | Cash Advance (CA), Cash in Advance (CID) |
| Supply Ability | 100 Per Week |
| Delivery Time | 1 Days |
| Packaging Details | Standard industrial box packing with protective cushioning (single unit), bulk packed in cartons for shipment. |
| Main Domestic Market | All India |
| Returnable | No |
| Product Unit | 10 Set/Sets |
| Price Type | fixed |
| Packsize | 1 |
| Unit Type | Set/Sets |
| Stock Quantity | 50 |
| Color | Gray |
| Mop | 10 |
| Moq | 10 |
| Price | 750.00 INR (Approx.) |
| Brand Name | Phoenix Contact |
| Currency | INR |
| Minimum Ordered Packs | 10 |
| Minimum Order Quantity | 10 |
| GSTIN | 0% |
