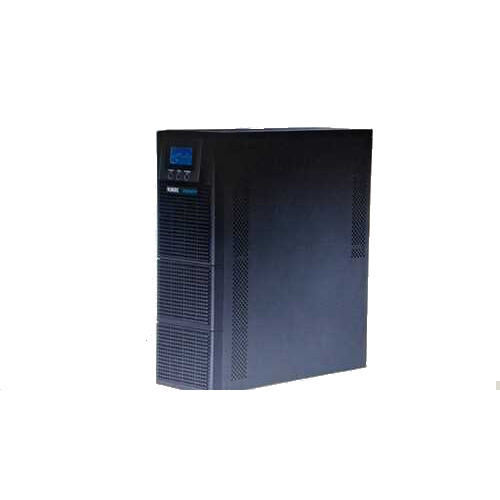

Numeric Onfiniti 10 Kva Online Ups - Color: Black

General Specification :-
Output power capacity: 8000 W
Technology: On-line, double conversion, VFI-SS-111
OVCD: Available
Waveform: Sinusoidal
Display Panel: LCD Display + LED Panel
Input Parameters
Input Voltage: 230 VAC
Input Voltage Range: 176 V - 300 VAC @ 100% load A 3%; 110 V- 300 VAC @ 50% load A 3%
Connection: Terminal block
Input Power Factor: a Y 0.99 (with full linear load)
Input Frequency Range: 50-60 Hz A 8% auto sensing
THD of input current: < 7% at full linear load and normal voltage
Output Parameters
Outlets: Terminal block
Output Voltage: 230 VAC (adjustable to 220/230/240 VAC) A 1%
Output Frequency: 50 / 60 Hz A 0.1Hz
Frequency synchronisation: 46 to 54Hz
Crest factor: 3:01
THD of output voltage: < 3% at full linear load; < 5% at full non-linear load
AC-AC Efficiency: a Y93% @ 100% Load
ECO mode: Not Available
Converter mode: Available
Configurable bypass: Available
Overload capacity in Line Mode: 105 - 110% 30 mins, 111 - 130% 5 mins, 131 - 150% 10 sec
Overload capacity in Battery mode: 105 - 110% 3 mins, 111 - 130% 30 secs, 131 - 150% 3 sec
Batteries and battery charger characteristics
Number of batteries: 16/17/18/19/20
Battery capacity: Depending on the capacity of external batteries
Battery type: VRLA / Tubular / Lithium-Ion
Rated Battery Voltage: 192/204/216/228/240 Vdc
Battery Charging current: 4A default A 10% (1A/2A/4A Selectable)
Recharge time (to 90%): 9 hours
Communication and management
Communications ports: RS232 and USB
Connector for network interface: Optional -SNMP/MODBUS/Dry Contacts
Environment conditions
Operating Temperature: 0 A C to +40 A C
Protection index: IP 20
Relative humidity (%): 0% to 95% (non-condensing)
Storage temperature: -10 A C to +50 A C
Noise level at 1 m (dBA): < 58 dBA
Reference directive and standards
Safety: IEC 62040-1 & IS 16242 (Part1):2014
EMC: IEC 62040-2
Performance and test requirements: IEC 62040-3
Storage temperature: -10 A C to +50 A C
Other compliance: CE, RoHS
