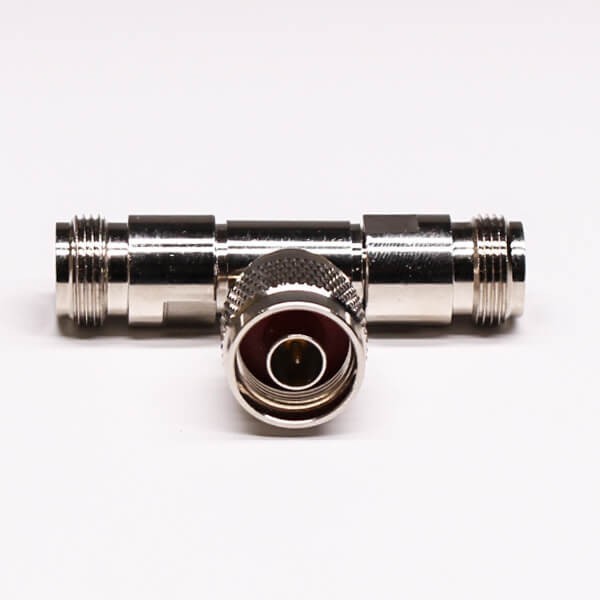

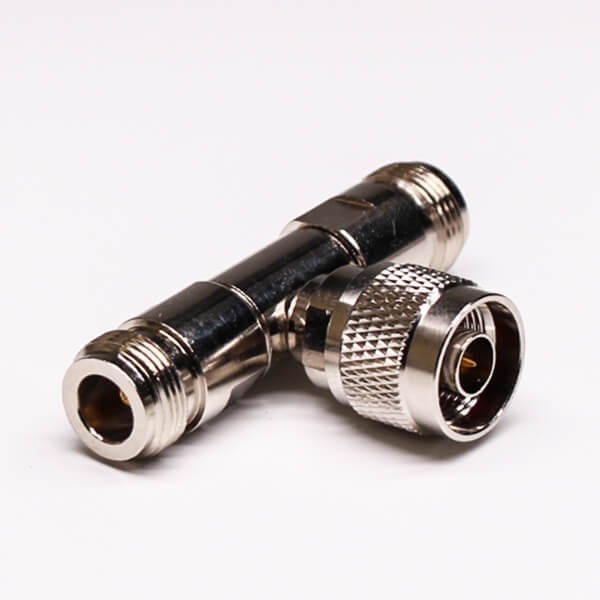

N Type Rf Adapters Tee Joint Male To Two Female Coaxial Connector
Share

N Type Rf Adapters Tee Joint Male To Two Female Coaxial Connector

Price: 190 INR / Piece

Get Latest Price

Minimum Order Quantity :

5 Piece

Brand Name :

3an Telecom

In Stock

In Stock

Product Specifications

Main Domestic MarketAll India

Product Overview

Key Features

Techinial Datasheet:
Electrical Characteristics
Impedance50 ohm
Frequency Range: 0~13 Ghz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage: 2500 V rms
Working Voltage: 1000 V rms
Center Contact Resistance 1.0 m (Milliohms max.)
Outer Contact Resistance 0.2 m (Milliohms max.)
Insultation Resistance 5 x 10 m (Megohms min.)
Mechanical Characteristics
Coupling: 5/8-24 thread
Contact Retention: 6 lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Temprature Range: -65C ~ +125C ( PE Cable-40C ~ +85C )
Vibration: MIL-STD-202 Meth.204
Corrosion resistance: MIL-STD-202 Meth. 101
