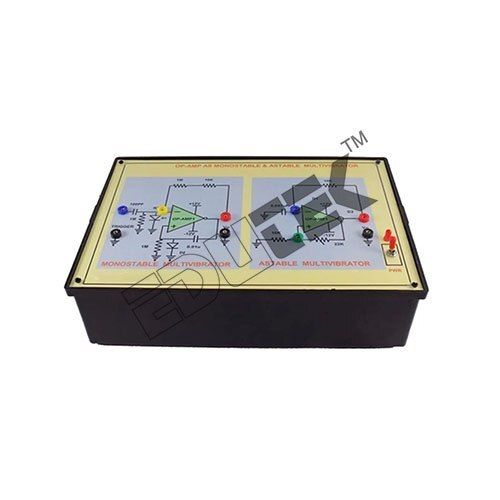

Multivibrator (Astable/ Monostable) Using Op Amp - Application: Engineering Electronics Instruments
Price: 1200.00 INR / Piece
(1200.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Output | Square Wave (Astable), Pulse Output (Monostable) |
| Power Supply | 12V DC regulated |
| Power Source | External DC Adapter (12V) |
| Operating Temperature | 0C to 50C |
| Interface | Manual switches for mode selection and triggering |
| IP Rating | Not rated |
| Features | Configurable as astable or monostable; breadboard-type test points; visual LED output |
| Display Type | Other, LED indication for output |
| Color | Green/Blue PCB with mounted components |
| Components | Operational Amplifier (IC 741 or equivalent), Capacitors, Resistors, Switches, LEDs, PCB |
| Input | Trigger Pulse (for monostable mode) |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Response Time | Milliseconds (depends on RC components) |
| Product Type | MULTIVIBRATOR (ASTABLE/ MONOSTABLE) USING OP AMP |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 12V DC |
| Supply Voltage | 12V DC |
| Size | Standard trainer kit size |
| Dimension (L*W*H) | 130 mm x 90 mm x 40 mm (Approx.) |
| Function | Multivibrator (Astable/Monostable Mode) |
| Weight | Approx. 80 grams |
| Current Rating | 200 mA (max) |
| Thickness | 1.6 mm PCB |
| Capacity | Single experiment setup |
| Frequency | Adjustable; range depends on R and C values (typically Hz to kHz) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Color | Green/Blue PCB with mounted components |
| GSTIN | 0% |
Product Overview
Key Features
MULTIVIBRATOR (ASTABLE/ MONOSTABLE) USING OP AMP
On board circuit to study op-amp as monostable Multivibrator
On board circuit to study op-amp as astable Multivibrator.
ON/OFF switch and LED for power indication.
Bare board Tested Glass Epoxy SMOBC PCB is used.
Block Description Screen printed on glassy epoxy PCB
All interconnections are made using 2mm banana Patch cords
