Multi Layer Mesh Belt Konjac Palm Silk Coconut Meat Cassava Ginger Slice Dryer - Color: Customized

Price:

Get Latest Price

Minimum Order Quantity :

In Stock

Product Specifications

Usage	Drying fruit chips,vegetables,fish,meat,etc.
Width	2600 Millimeter (mm)
Height	2000 Millimeter (mm)
Length	10000 Millimeter (mm)
Weight	1654 Kilograms (kg)
Product Type	Mesh belt konjac dryer
Color	customized
Size	customized
Automation Grade	Automatic
Features	Rust proof
Automatic	Yes
Feature	Lower Energy Consumption
Warranty	1 Year
Frequency	50 Hertz (HZ)
Voltage	150 Volt (v)
Payment Terms	Paypal
Main Domestic Market	All India
Supply Ability	10 Per Month
Delivery Time	10 Days
Sample Policy	Contact us for information regarding our sample policy
Sample Available	No
Certifications	CE,ISO,CCC
Packaging Details	As an industrial standard
GSTIN	0%

Product Overview

Key Features

Multi layer mesh belt konjac palm silk coconut meat cassava ginger slice dryer, yeast maggot dryer

Automatic Tunnel Continuous Oven Vegetable Dehydrators For Sale Mushroom Dehydrator Machine Dried Garlic Tomatoes Potato Machine

PRODUCTION DESCRIPTION

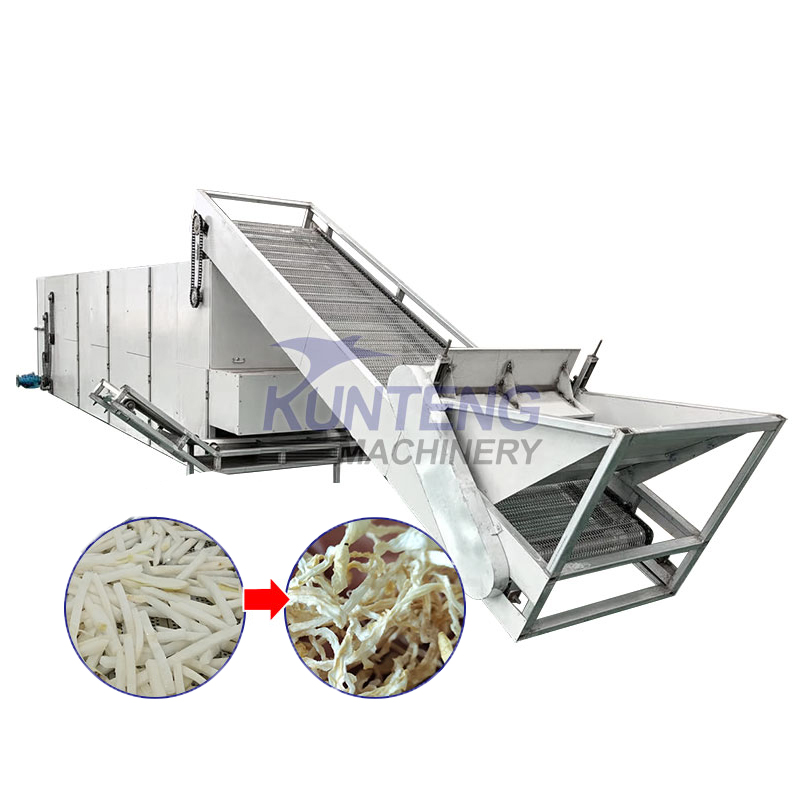

Chain mesh belt dryer

Continuous mesh belt conveyor fruit and vegetable dryer,mushroom dryer,potatoes drying machine, adopts multi-layer mobile mesh belt transmission technology, inner mesh surface adopt 304 stainless steel which has the advantages of moisture resistance,corrosion resistance and no rust. the hot air flow passes through the mesh belt from bottom to top,multi-layer circulation turnover and drying layer by layer, with uniform and sufficient heat and mass exchange, high production efficiency, good product quality and large drying area, which can realize mass continuous production.

WORKING PRINCIPLE Continuous mesh belt conveyor fruit and vegetable dryer,mushroom dryer,potatoes drying machine, vegetables, fruits and other raw materials are conveyed from the first layer to the last layer by a conveyor belt and the dried vegetables and fruits are conveyed by a discharge conveyor. The belt vegetable and fruit dryer uses hot air as the drying medium. The hot air passes through the material from the bottom to the top. The final moisture comes out of the top of the belt vegetable fruit dryer. The dryer can not only use heat for drying, but also use strong air for drying. Therefore, it can improve drying efficiency and shorten drying time. It is more convenient and no require manual loading and discharging.

KUNTENG Automatic Tunnel Continuous Oven Vegetable Dehydrators For Sale Mushroom Dehydrator Machine Dried Garlic Tomatoes Potato Machine has 30 years of rich industry experience and a data base of hundreds of agricultural products drying processes. We can customize food drying production lines and supporting facilities at different prices according to customers' needs for different materials.

we provide the whole fruit and vegetable drying production line,Free design scheme,Free guided installation,Raw vegetables and fruits through a series of washing, slicing, blanching, drying, packaging processes,The final product moisture can reach less than 10%.We have a wealth of experience and this is a mature set of processes.

Our continuous mesh belt conveyor fruit and vegetable dryer,mushroom dryer,potatoes drying machine, has a large application range, all kinds of materials can be dried without damaging the nutritional value,such as vegetables,fruits,grain,maize,rice,fish,biltong,cassava,paddy,mango,corn,cocoa beans,tomato,onion, pasta,chips, red chilli,meat, sesame seed, coffee beans,coconut copra,garlic,hemp,tea leaf,black soldier fly, alfalfa, charcoal briquette,mushroom,flower,pineapple, grapes.etc.

Product parameters

Large ginger mushroom fruit and vegetable dryer production dehydrated carrot pumpkin chips potatoes drying machine sardine drier
Model(Width*Length)	KT1.5-6-4	KT2-8-4	KT2-9-4	KT2-10-4	KT2-12-4
Layers	4
Drying area()	29	45	51	57	69
Spread thickness of material(mm)	50-200
Working temperature()	0-120
Working time(hour)	24
Capacity(t/h)	100-150kg/h	200kg/h	250kg/h	300kg/h	500kg/h
heat exchange furnace(M)	3.212.7	3.91.263	3.91.263	4.71.53	4.71.53
Induced draft fan(kw)	11	15	15	22	22
Exhaust fan(kw)	1.5	2.2
Feeding conveyor(kw)	1.5	2.2	2.2	2.2	3
Discharge conveyor(kw)	0.55
Total power(kw)	14.55	19.25	19.95	26.95	27.75
LP gas consumption (90 degree fanrenheit)	20m/H	25m/H	28m/H	30m/H	36m/h
Place requirement (WLH)M	4.5142.7	5192.8	4.5202.8	5.5212.8	5.5232.8

Our service

1. Three guarantee services ,

2. The equipment is well debugged before leaving the factory,

3. On-site installation and debugging of large-scale equipment technicians,

4. The technician will teach you the operating instructions of the equipment,

5. All the above are free.
