Model-8cts-8 Channel 4-20ma Sourced Scanner Display

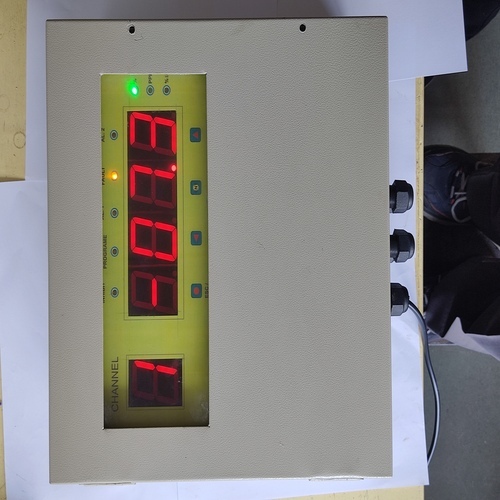

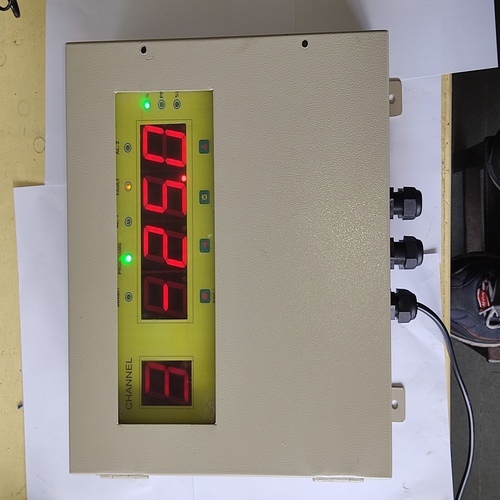

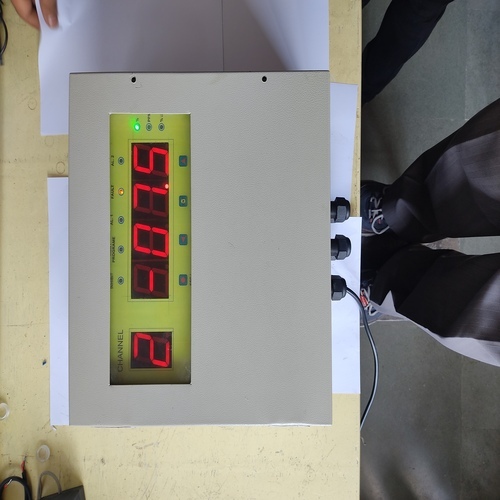

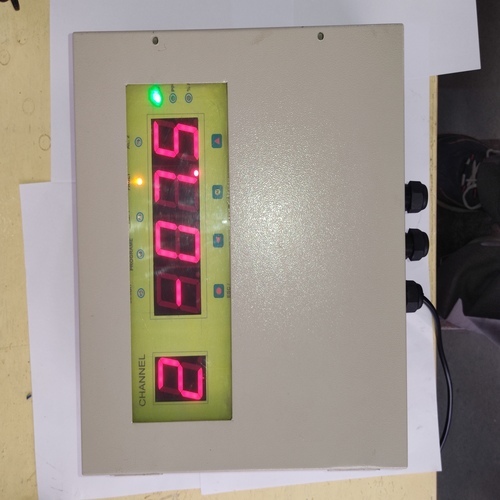

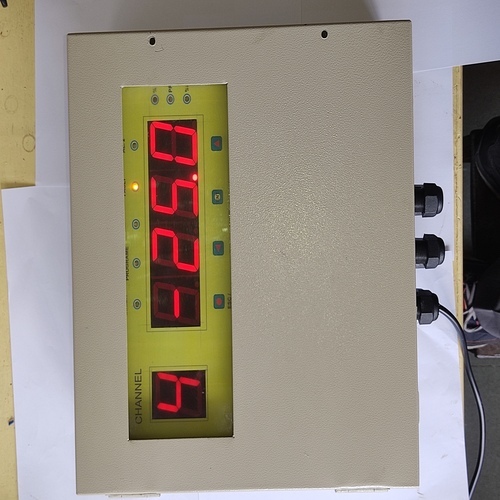

Model 8CTS is a unique instrument which monitors upto eight 4-20mA signals of three wire transmitters. It allows scaling of the display from a large variety of ranges and resolutions as permitted by the 4-digit LED display. It displays a scaled parameter reading and channel number and units. It provides two alarms and one Fault alarm with corresponding relay contacts. A Tower Lamp is connected for area annunciation visibility of status. Sensors are user provided.


STANDARD SPECIFICATIONS
Channels: Upto Eight
Display: 4 digit LED 10mm high
Ranges: 0-2 , 0-5, 0-10, 0-20, 0-25, 0-0-50, 0-100, 0-200, 0-500, 0-1000, 0-1500, 0-1000, 0-2000
Resolution: No DP, 000.0, 00.00, 0.000
Linearity: +0.5 %
STANDARD SPECIFICATIONS CONTINUED

Power: 110 to 220VAC 50 Hz 1 A
Power Supply: 24 VDC to transmitter
Current out: Maximum 200mA per sensor
Output voltage: 18V on sensing terminals
Alarms: Two visual alarms, user settable throughout the range
Alarm Relay: One C-NO OR C-NC contact of 50VA rating provided for each set-point
Working Temp: 0 to 45C
MOC : MS sheet metal powder coated with transparent display window
Size O/A: 275x 325 x 130 mm deep
Weight: 2.5 Kg
IP rating: IP54
Comm. Port: RS485 Modbus RTU For connection to PLC /SCADA
Tower lamp: 3 lights ( Red , Yellow & Green) and buzzer.
