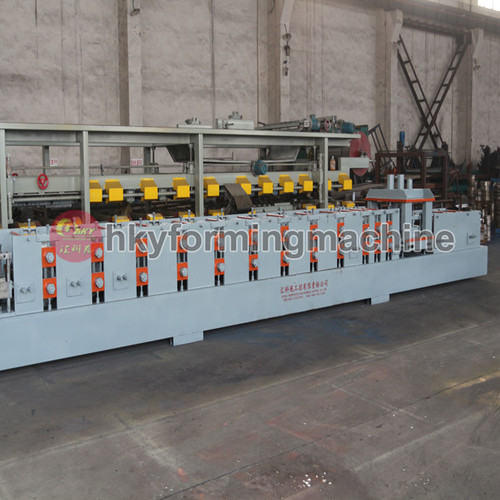

Blue Metal C Purlin Roll Forming Machine

Backed by a team of diligent experts, we have been able to manufacture and export a wide range of Metal C Purlin Roll Forming Machine in Cangzhou, Hebei, China.

Metal c purlin roll forming machine is designed to be used to make the C purlin for roofing beam within the bottom width from 100 to 300mm and the height could be from 30 to 80mm and the material thickness could be from 1.5 to 3.0mm. This lower cost machine but with high quality performance. It is good for the professional machine users as it needs to change the spacers for many different sizes manully.

Process Flow of metal c purlin roll forming machine:

Uncoiling-Feeding material into machine-Roll forming-Measuring length-Auto cutting-Products receiving

Parameters of the metal c purlin roll forming machine

raw material: GI/PPGI/AL
thickness: 1.5-3 mm
working speed: 17 m/min
control system: PLC
total power: 22 kw
total weight: about 8 ton

Forming device of metal c purlin roll forming machine

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when

it is working Feature : Ensure stability, precision and lifetime.
