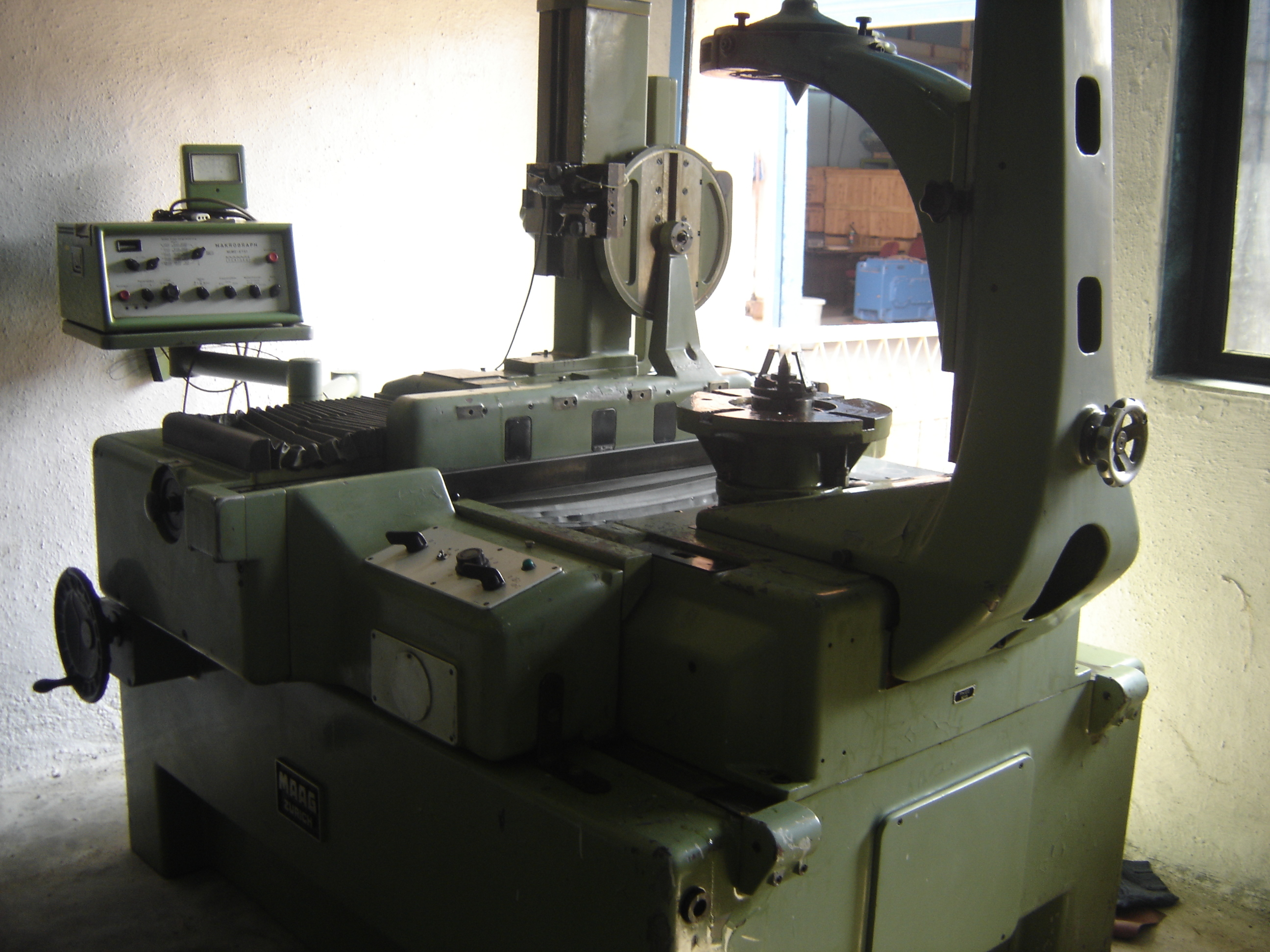

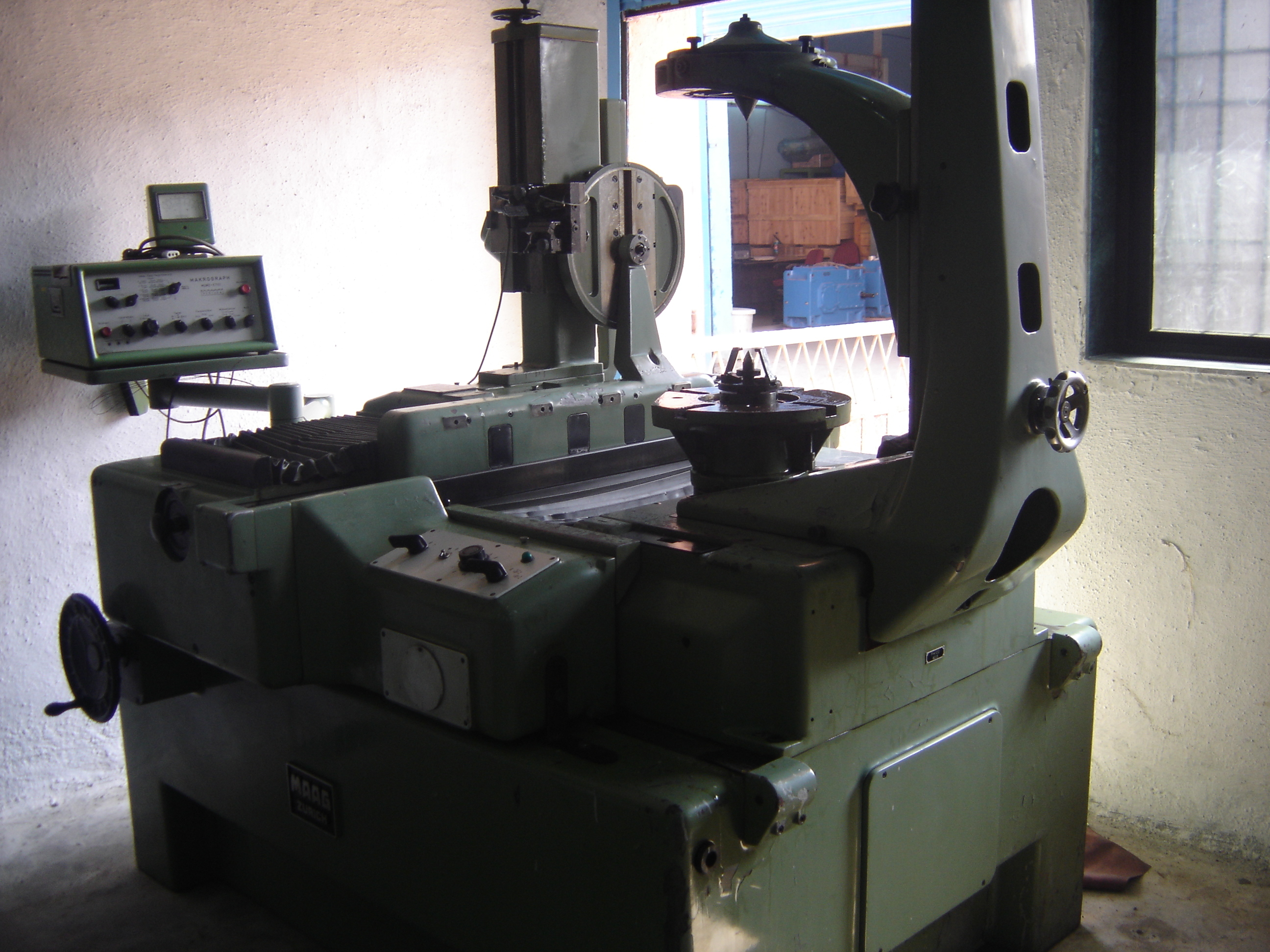

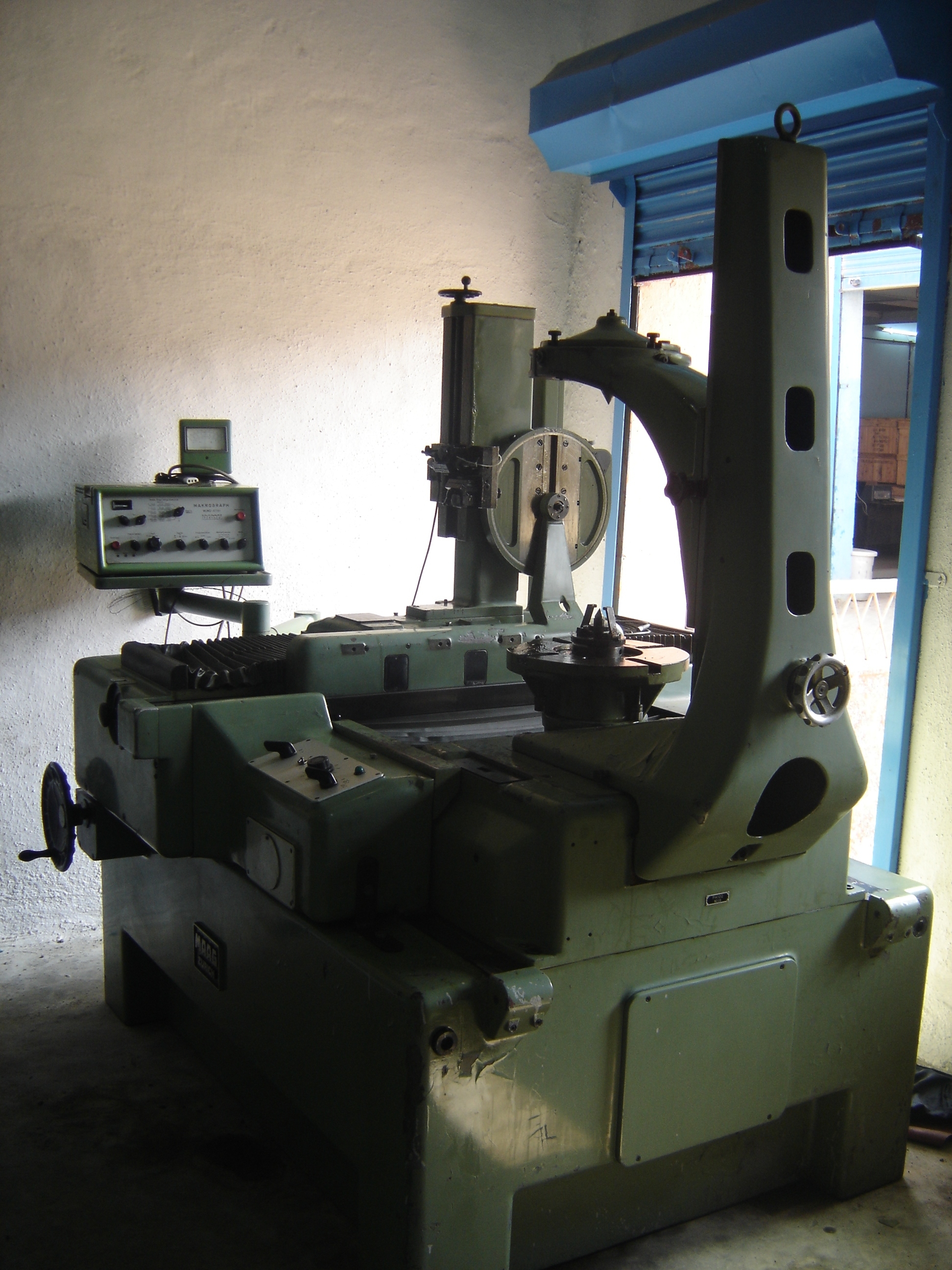

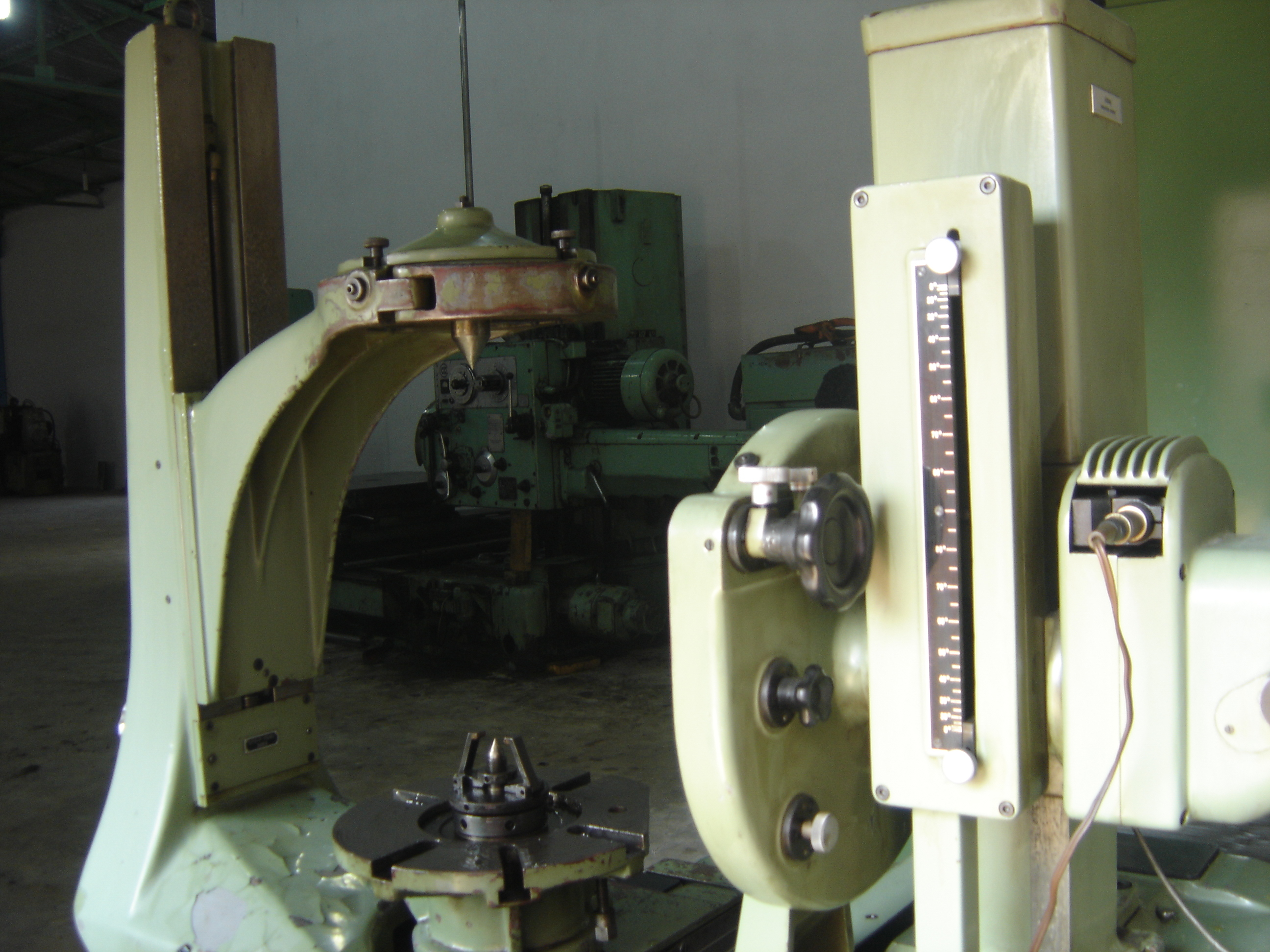

Maag Ph 100 Universal Lead And Involute Tester For Sale

Machine Id:857
Model:PH 100
Make:Maag
Year:1990
Dimensions:
Power:
Location:Mumbai Warehouse,India

Category:Gear Testers
Serial No:
Country:Switzerland
Type of Machine:Universal LEAD AND INVOLUTE TESTER
Weight:0.0
Asking Price:onrequest

Specification:
MAAG PH-100 LEAD AND INVOLUTE TESTER

Technical Data

Min Tooth Size Module 0.5
DP 50
Max Tooth Size Module 20
DP 1.25
Min/Max Adjustable Base Circle Diameter 200/1000mm
Max Generating Path w/Max Base Circle 600mm
Max Tip Circle Diameter A 1050mm
Max Pinion Length (using vertical support) H 830mm
Min Pinion Length (using vertical support)
a) Standard Model 290mm
b) Special Model (w/special vertical support) 100mm
Min/Max Shaft Diameter for Steady L 100/200mm
Diameter of Standard Work Table d 350mm
Diameter of Large Work Table (special model) D 750mm
Adjustability of Pick-Up Slide V 350mm
Max Facewidth b
At Helix Angle of 0 Deg 260mm
At Helix Angel of 60 Deg 130mm
Total Scanning Height M 678mm
Error Magnification of Recorder Unit With:


Read-Off Accuracy for Base Circle 0.001mm
Read-Off Accuracy for Helix Angle 1 sec.
Max Permissible Weight of Gear 1000kg
Mains Rating 400 VA
Overall Length of Machine 2470mm
Overall Width of Machine 1640mm
Overall Height of Machine w/Vertical Support 2300mm
Weight of Machine 2500kg
