Lorenz Ls154 ( Cnc 6 Axis ) Cnc Gear Shaper Machine For Sale
Price:
Get Latest Price
Brand Name :
Lorenz
In Stock
Product Specifications
| Max workpiece diameter | 152 mm |
| Max tooth width | 42 mm |
| Max axial travel | 65 mm |
| Rapid travel C | 4830 mm/min |
| Stroking motor power | 18.5 kW |
| Stroking speed | 100-1250 spm |

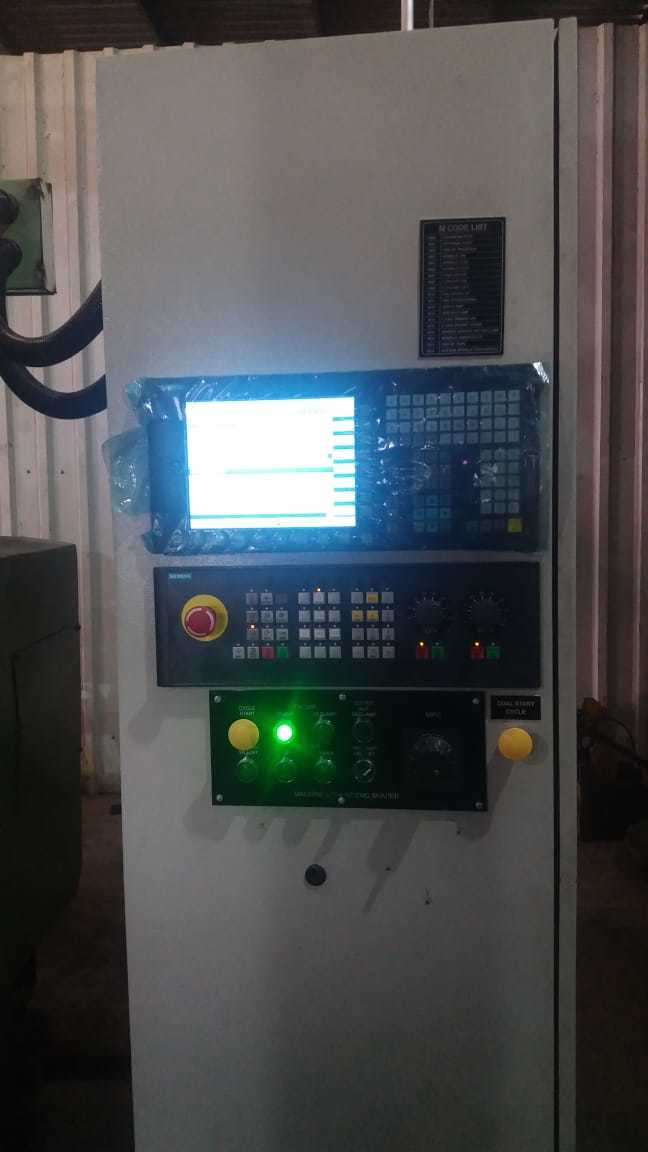

| Control system | Siemens 828 |
| Features | High precision, 6-axis CNC, Efficient operation, Durable design, Siemens system, Versatile machining |
Product Overview
Key Features
Machine Id:1133
Model:LS154 ( CNC 6 AXIS )
Make:Lorenz
Year:0
Dimensions:
Power:
Location:Mumbai Warehouse,India
Category:Gear Related Machines
Serial No:
Country:Germany
Type of Machine:CNC Gear Shaper 6 Axis
Weight:0.0
Asking Price:onrequest
Specification:
CNC Gear Shaper 4 Axis with siemens 828 System,
Machine Mechanical Specifications:
Pitch rating depending on application5 DPMod 5 mm
Maximum workpiece external diameter6"152 mm
Maximum workpiece internal diameter11"280 mm
Maximum tooth width (face width)1.65"42 mm
Maximum axial travel2.56"65 mm
Rapid travel - C (Cutter)190"/min4830 mm/min
D (Table)380"/min9660 mm/min
X70"/min1800 mm/min
Z70"/min1800 mm/min
Maximum X travel 175 mm
Minimum X travel -30 mm
Maximum Z travel 65 mm
Minimum Z travel 0 mm
Stroking motor power25 HP18.5 kW
Stroking speed range, infinitely variable100-1250 Strokes per minute
Stroking GuideHydrostatic, Spur
Machine Equipment List:
Power Clamping
Tailstock
4" Riser block
Spring Leveling Wedges
Servo controlled cutter elevation
Cutter positioning

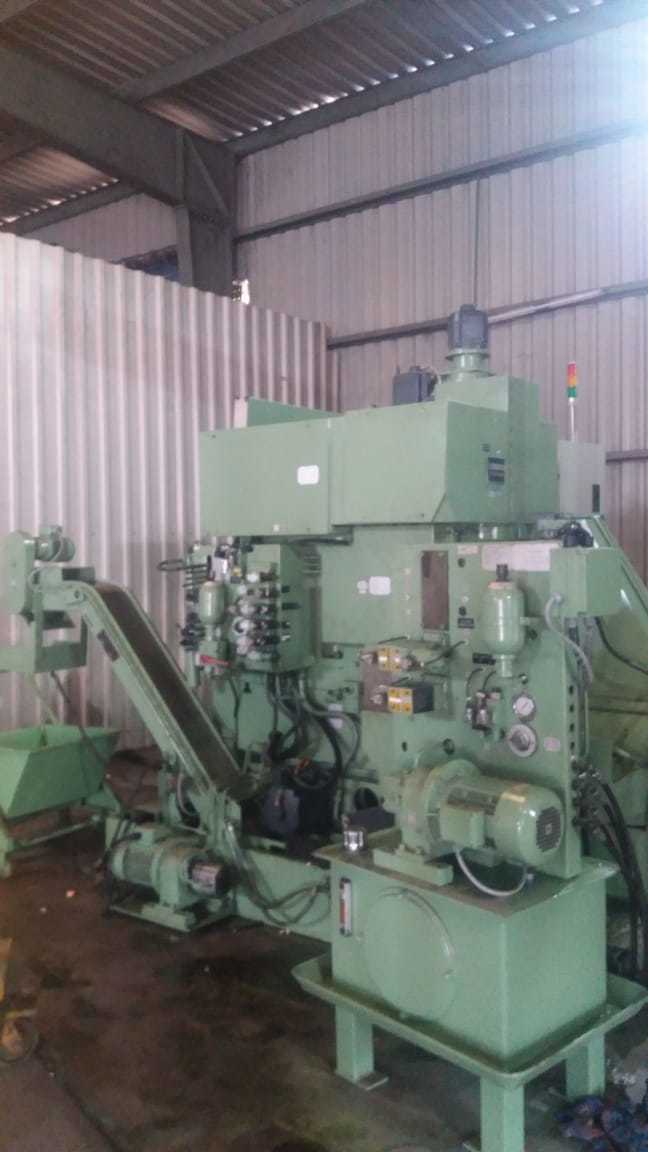

Chip conveyor
Model:LS154 ( CNC 6 AXIS )
Make:Lorenz
Year:0
Dimensions:
Power:
Location:Mumbai Warehouse,India
Category:Gear Related Machines
Serial No:
Country:Germany
Type of Machine:CNC Gear Shaper 6 Axis
Weight:0.0
Asking Price:onrequest
Specification:
CNC Gear Shaper 4 Axis with siemens 828 System,
Machine Mechanical Specifications:
Pitch rating depending on application5 DPMod 5 mm
Maximum workpiece external diameter6"152 mm
Maximum workpiece internal diameter11"280 mm
Maximum tooth width (face width)1.65"42 mm
Maximum axial travel2.56"65 mm
Rapid travel - C (Cutter)190"/min4830 mm/min
D (Table)380"/min9660 mm/min
X70"/min1800 mm/min
Z70"/min1800 mm/min
Maximum X travel 175 mm
Minimum X travel -30 mm
Maximum Z travel 65 mm
Minimum Z travel 0 mm
Stroking motor power25 HP18.5 kW
Stroking speed range, infinitely variable100-1250 Strokes per minute
Stroking GuideHydrostatic, Spur
Machine Equipment List:
Power Clamping
Tailstock
4" Riser block
Spring Leveling Wedges
Servo controlled cutter elevation
Cutter positioning
Chip conveyor
