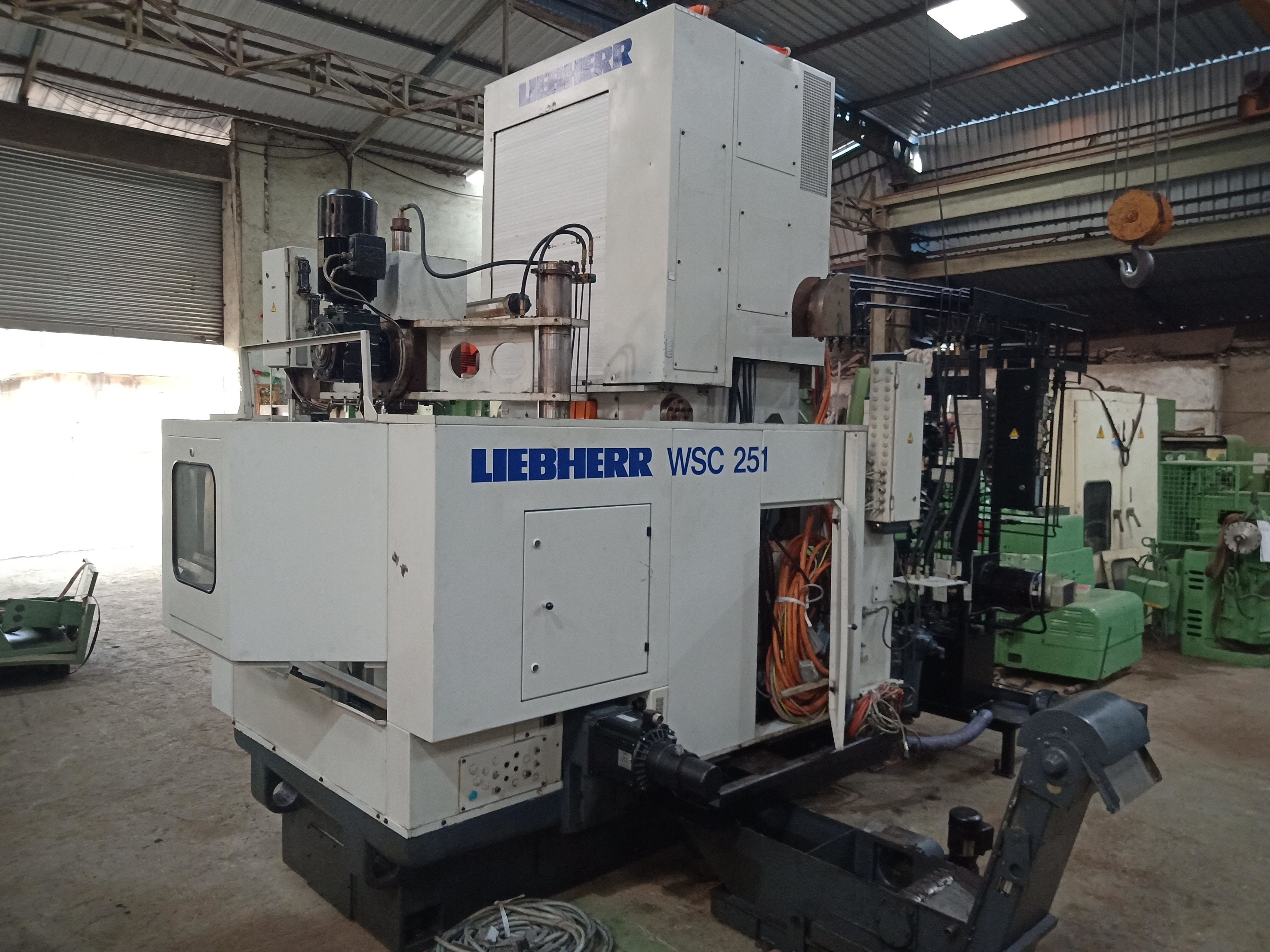

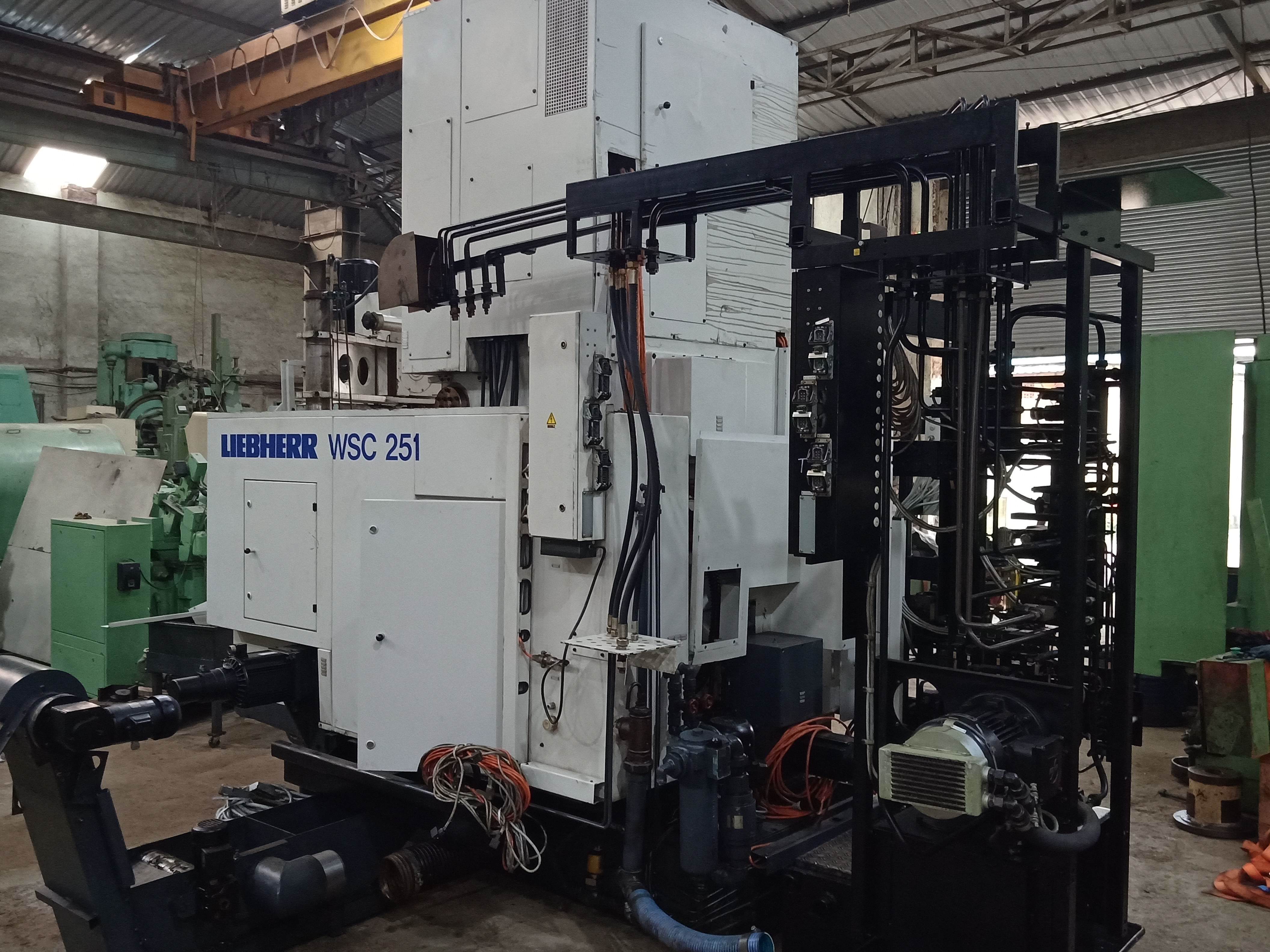

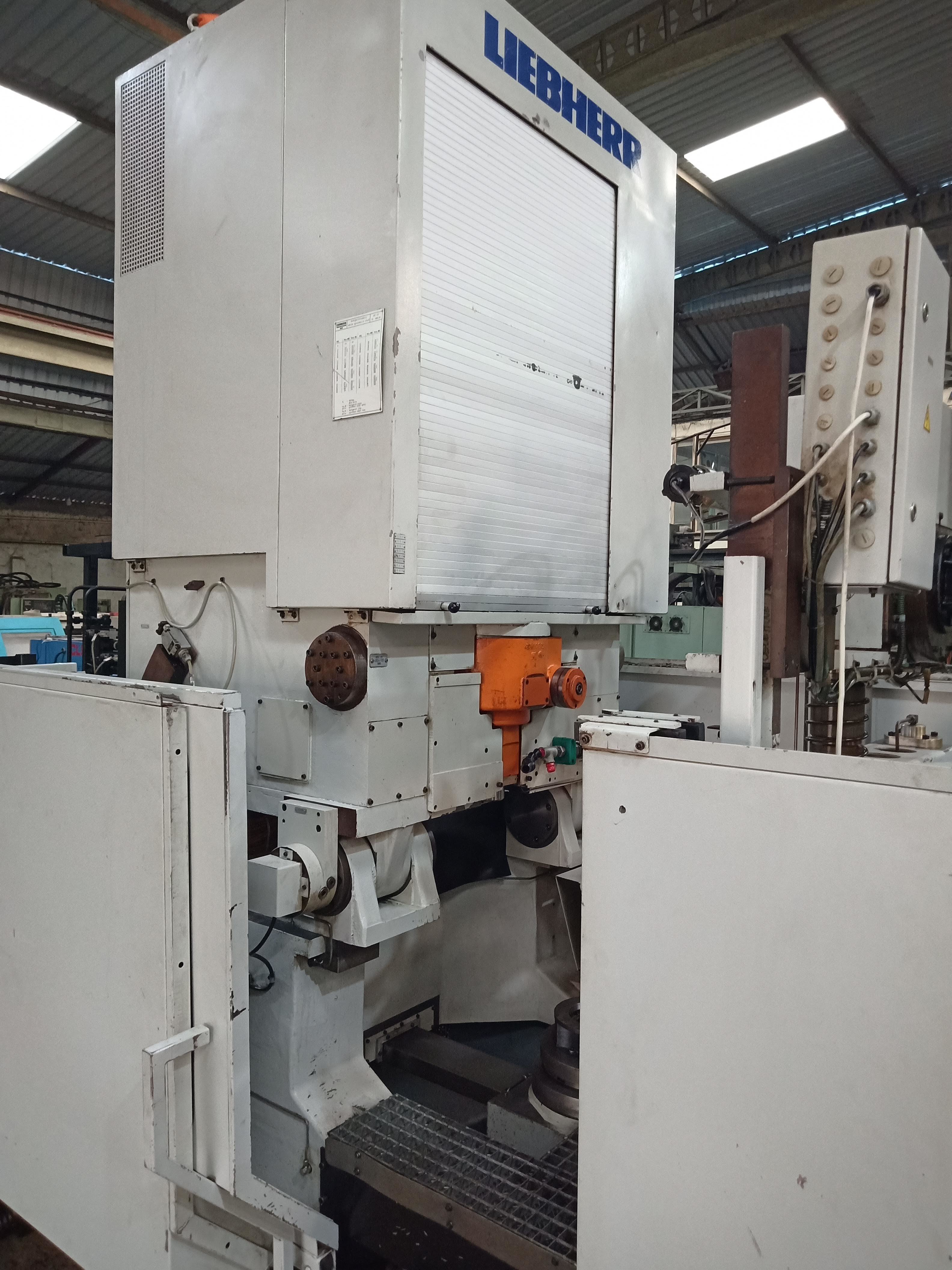

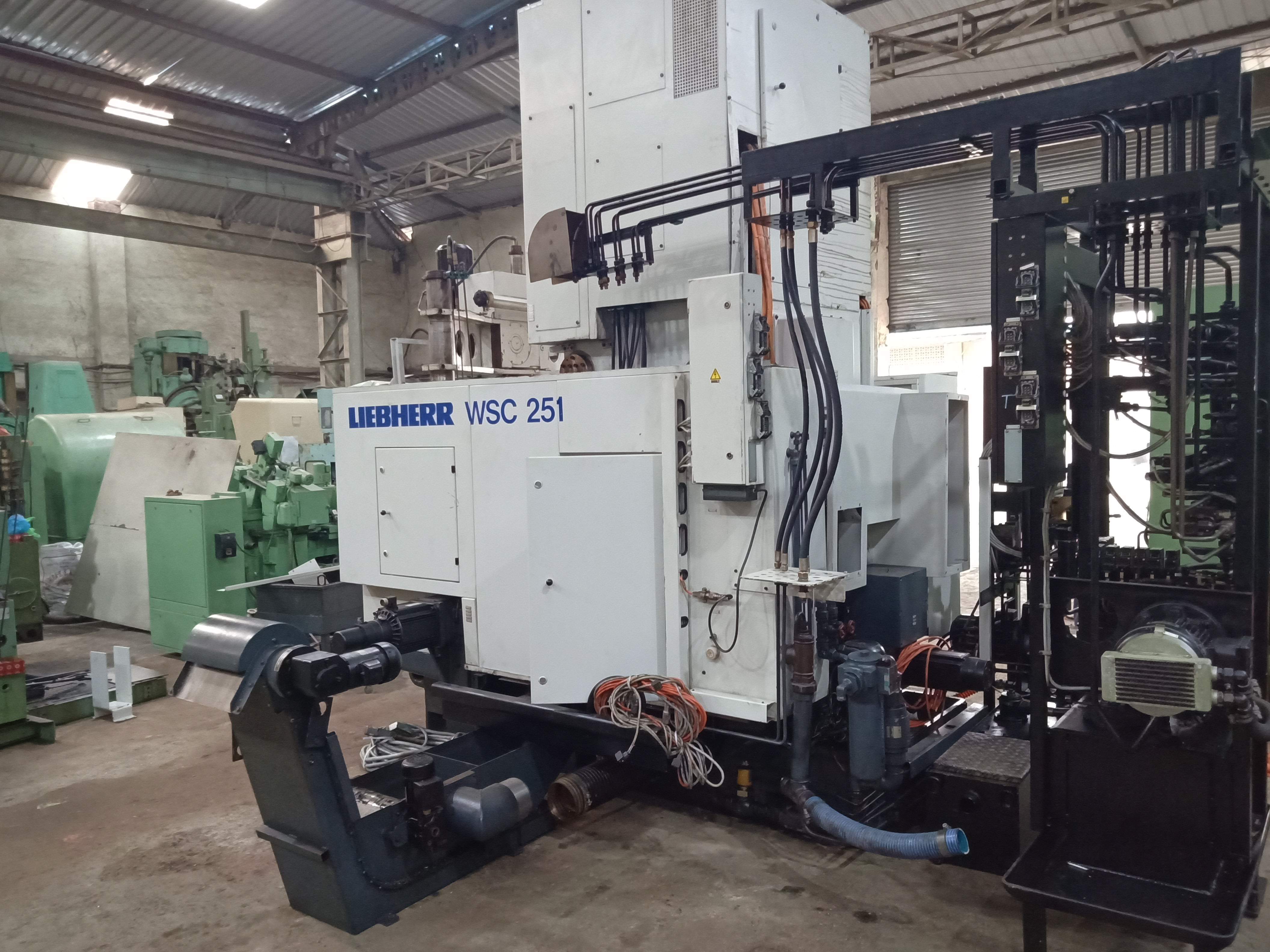

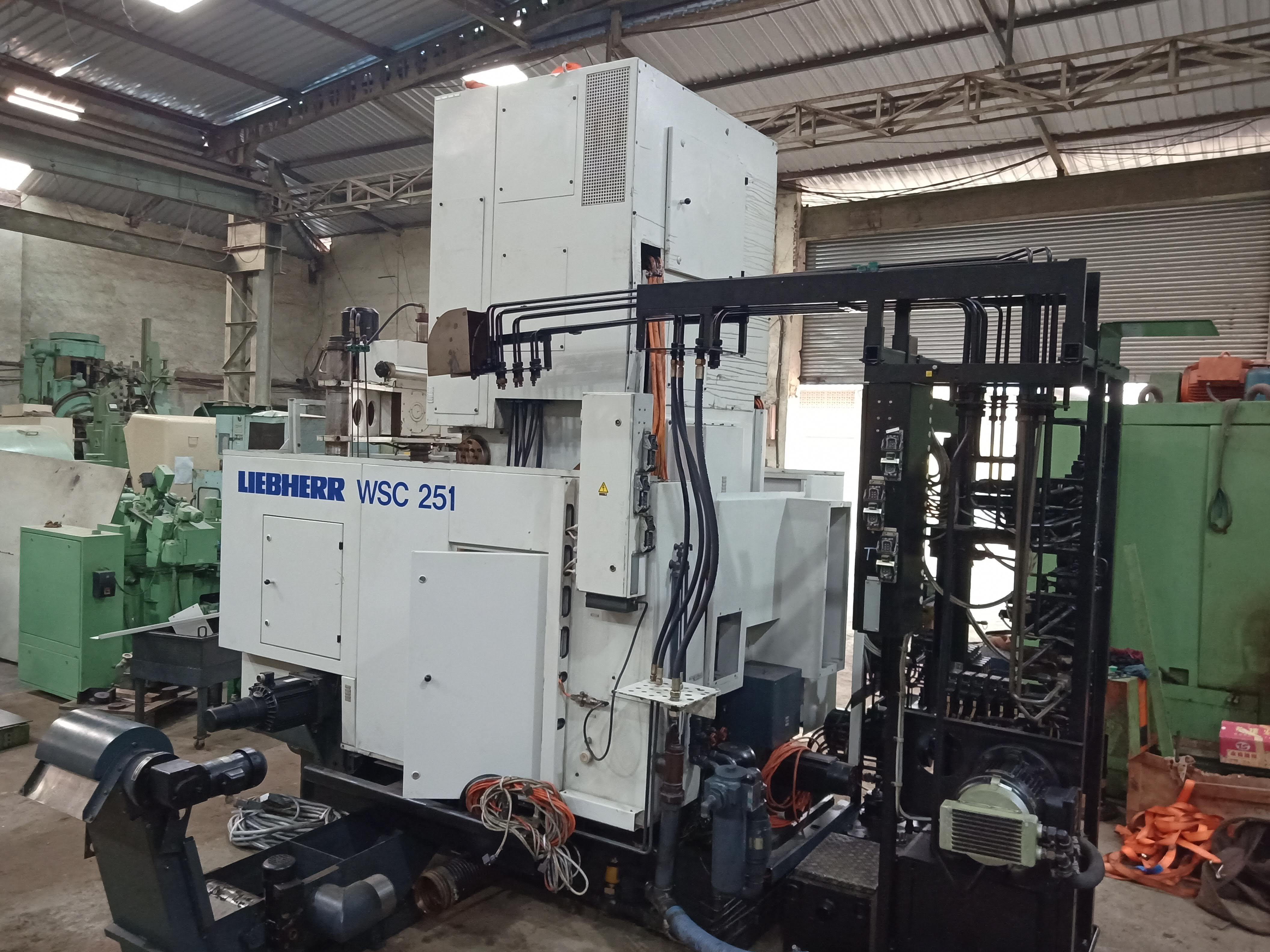

Liebherr Wsc 251six Axis Cnc Gear Shaping Machine With Adjustable Taper

Machine Id:1164
Model:WSC 251
Make:Liebherr
Year:1995
Dimensions:
Power:
Location:Mumbai WareHouse, India

Category:Gear Shapers CNC
Serial No:
Country:Germany
Type of Machine:Six Axis CNC Gear Shaping Machine With Adjustable Taper 10 degree
Weight:0.0
Asking Price:onrequest

Specification:
Six Axis CNC Gear Shaper With 10 Degree Adjustable Facility (CNC B Axis).
Very Unique Machine with Extra Raiser block 200 mm.
SPUR Hydrostatic spindle guide.
Workpiece clamping hydraulic.





This machine is being offered in as is condition Old Orriginal Liebherr CNC System is Discarded.
We can also offer it with an optional rebuild, recontrol or recertification. We Shall Carry Out The Following Process If You place order For Retroffting.All recontrolled and recertified machines are fully cleaned. All moving slides, spindles and parts handling systems are inspected for problems. Any gibs or adjustable backlash systems are adjusted to the best possible settings. All hydraulic, coolant, lubrication and pneumatic systems are checked for proper functionality and leaks. All filters are replaced. All worn hoses, broken cables, connectors, buttons, lamps and wires are replaced. All guarding is installed and checked. All machine cycles are tested. Parts are cut to verify the machine capability. Charts from the test cutting are documented for your viewing





Technical Data:

Max. Wheel Diameter: 250 mm
Gear Width: 80 mm
Max. Module: 6
Min. Module: 0.5
Max. distance between table and spindle-nose: 310 mm
