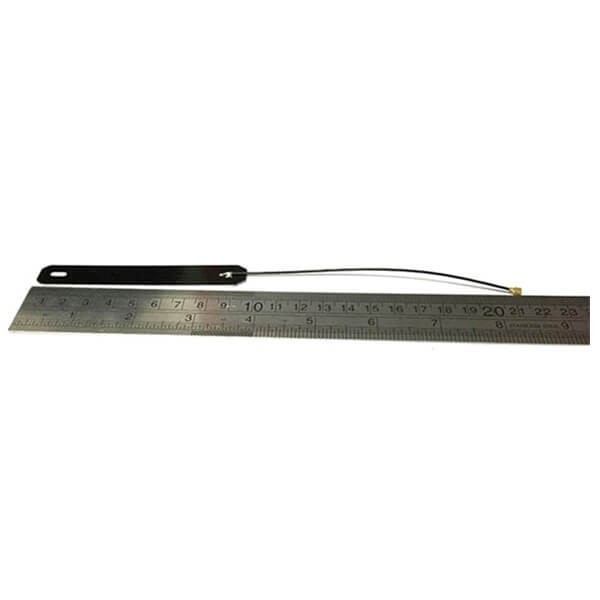

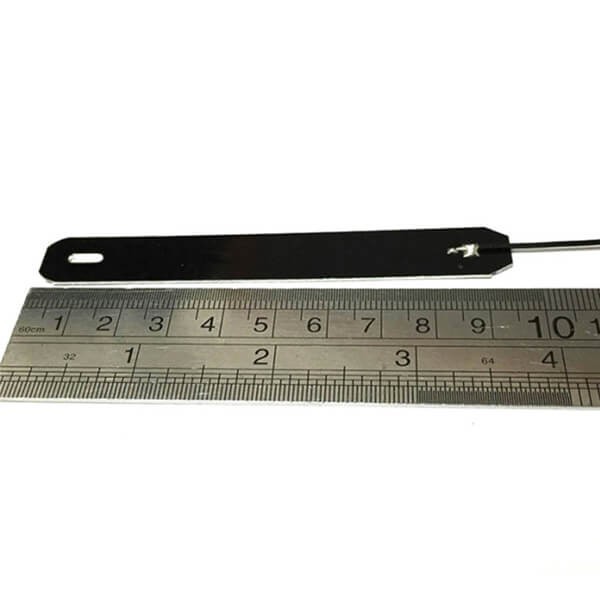

Internal 5dbi 4g Lte Pcb Antenna With Ipex Connector
Share

Internal 5dbi 4g Lte Pcb Antenna With Ipex Connector

Price: 120 INR / Piece

Get Latest Price

Minimum Order Quantity :

5 Piece

Brand Name :

3an Telecom

In Stock

In Stock

Product Specifications

Install TypeAdhesive Mount
Usage & ApplicationsLTE/WCDMA/CDMA/GSM signal reception and transmission
Cable Type1.13mm RF coaxial
Rated Temperature-40AdegC to +85AdegC
Number of Conductor1
Conductor ShapeFlat
Impedance50 I(c)
Operating Temperature-40AdegC to +85AdegC
WeightApprox. 5g
Locking TypePush fit (IPEX)
Core NumberSingle
Core MaterialFR4
InsulationYes
Conductor TypeSolid
Diameter1.13mm (cable)
Dielectiric Strengtha%0Y=1000V AC/min
FeaturesHigh gain, Low VSWR, Compact size, Lightweight, Easy installation, Stable Performance, Internal PCB design, Wideband 4G LTE frequency support
Tensile StrengthHigh
Product TypeInternal PCB 4G LTE Antenna
Length120mm (including cable)
VoltageOther, 50V Max
Insulation MaterialOther, Polycarbonate (PC)
ApplicationOther, 4G LTE Routers, Module, IoT Devices, M2M, Gateway, Telecommunication
Conductor MaterialCopper
Jacket MaterialOther, Polyvinyl Chloride (PVC)
Storage Temperature-40AdegC to +85AdegC
Connector ColorGold
Shield MaterialTinned Copper
Jacket ColorBlack
Dimension (L*W*H)100mm A-- 17mm A-- 1.2mm
MaterialFR4/Epoxy
ColorGreen (PCB) / Black (cable)
Size100mm A-- 17mm A-- 1.2mm
Main Domestic MarketAll India

Product Overview

Key Features

Main Specifications

Impedance50
VSWR2.0Max
Gain2dbi
RadiationOmni-Directional
PolariizationVertical
Working Temperature-40TO+60
