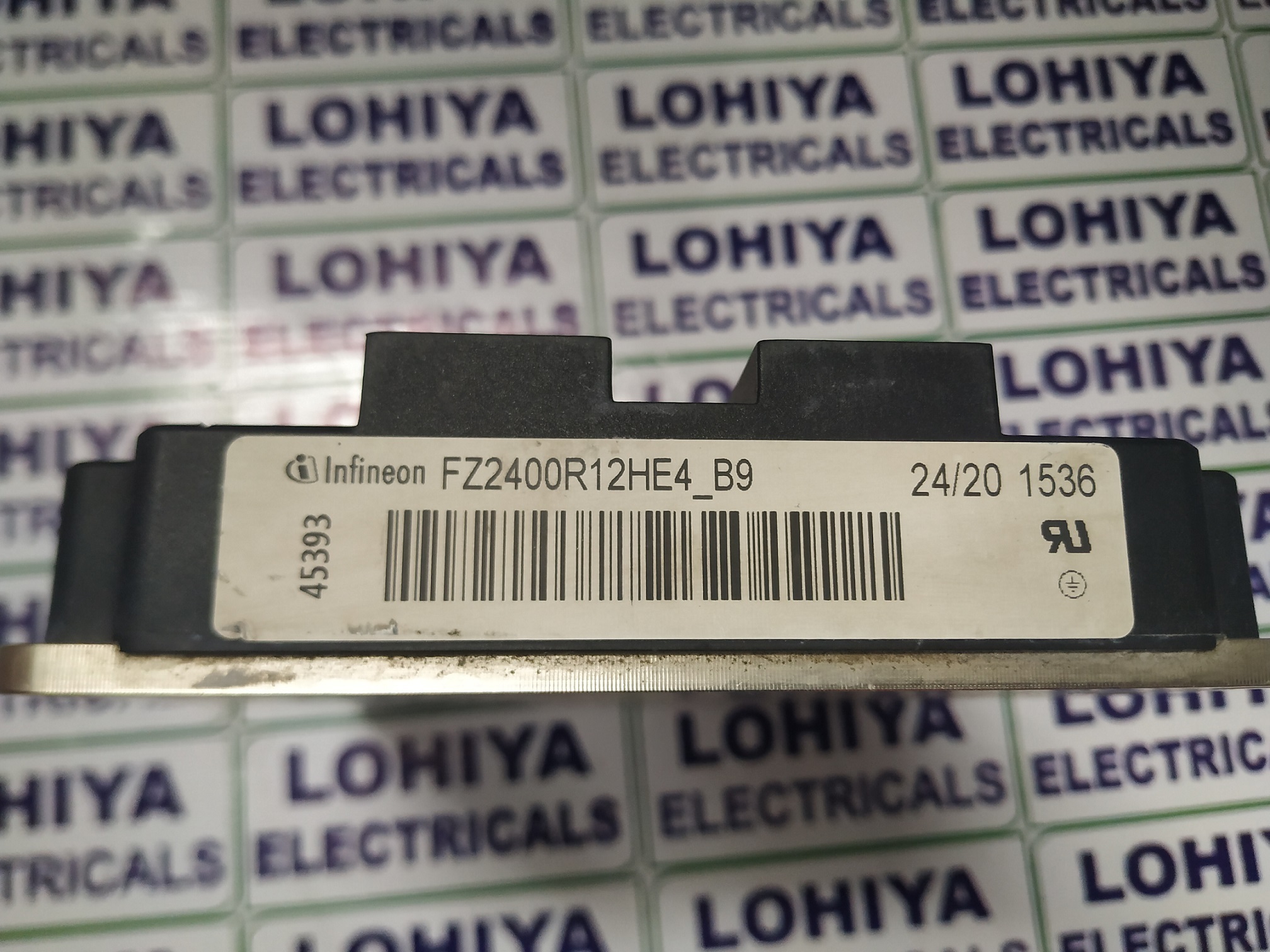

Infineon Igbt Module Fz2400r12he4_b9

Price:

Get Latest Price

Brand Name :

Infineon

In Stock

Product Specifications

Panel Type	Module Type
Protection Class	Class I
Connectivity Type	Screw Terminal
Rated Operation Voltage	1200V
Way	3 Phase
Cover Material	Other, Plastic/Composite
Rated Insulation Voltage	6kV (1 min)
Control System	PWM/Switching Control
Thickness	Standard Module
Current Rating	2400A
Protection Level	Other, IPM level protection
Cooling System	Forced Air or Liquid Cooling
Operating Voltage	up to 1200V
Features	Low Saturation Voltage, High Reliability, Integrated Protection
Base Material	Other, Copper Base Plate
Components	IGBT with FWD (Freewheeling Diode)
Rated Current	2400A
Product Type	Other, IGBT Power Module
Material	Other, IGBT (Insulated Gate Bipolar Transistor), Silicon, Plastic Case
Surface Finish	Other, Matte/Industrial
Standard	IEC/UL Standard Compliant
Surface Color	Black
Rated Voltage	1200V
Frequency (MHz)	up to 20kHz
Maximum Output Current	2400A
Dimension (LWH)	190mm x 140mm x 40mm (Approx.)
Application	Industrial Drives, Power Inverters, Motor Control
IP Rating	Other, IP20
