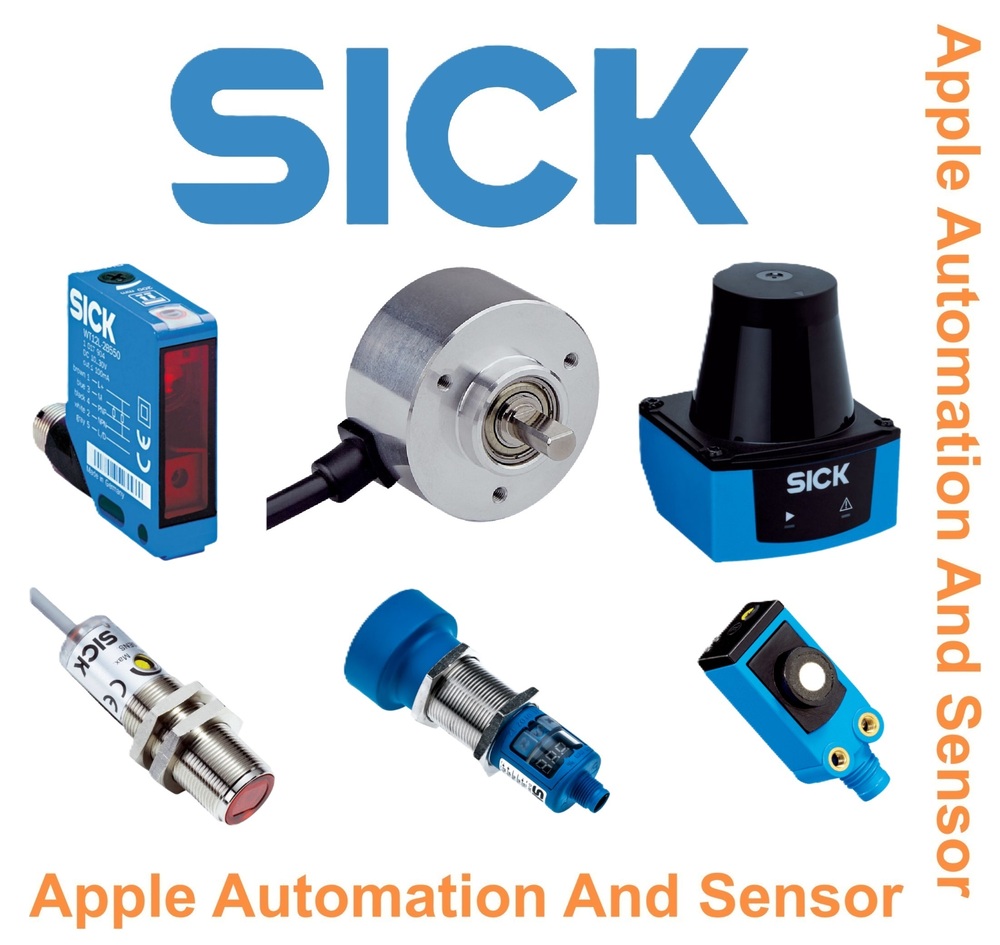

Incremental Encoder - 5v Dc, 12-24v Dc Supply Voltage, Up To 120khz Response Frequency | Compact Size, Durable Design, Easy Install, Versatile Output

Backed by rich industry experiences, we are leading Exporter and Trading Company of Incremental Encoder in Foshan, Guangdong, China.
Specifications:-
Output wave: Square wave
Output signals A, B, Z, (Line driver output A, A, B, B, Z, Z phase)
Current consumption:a 180mA
Response Frequency:0~120KHz
Output phase difference: 90A A 45A
Supply voltage 5V DC, 5-12V DC, 12-24V DC
Signal leveVha Y85%Vcc, Vha 0.3V
Number of pulses:50, 60, 100, 120, 125, 150, 180, 200, 250, 256, 300, 360, 400, 500, 512, 600, 900, 1000, 1024, 1200, 1800, 2000, 2048, 2400, 2500, 3000, 3600(Other number of pulse available on request)
Output circuit: Open collector NPN, Push pull, Line driver, Voltage
MECHANICAL SPECIFICATIONS
Speed without sealing 6000rmp
Rotor moment of inertia Appraisal 18.5x10-6Kgm2
Starting torque without sealing: d2.0x 10-2Nm (+25*C)
Maximum load permitted on shaft: Radial: 85N, Axial: 50N
Shock resistance: 980m/s2, 6ms, 2 times each on XYZ
Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ
Working life: MTBFe30000h (+25*C, 2000rpm)
Weight: Appraisal 460g (9 pin plug radial)
ENVIRONMENTAL SPECIFICATIONS
Working humidity: 30~85% (No condensation)
Storage temperature: (-40a ~100a )
Working temperature: (-25a ~85a )
Protection class: IP54IP54
