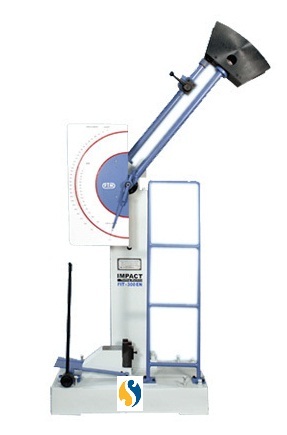

Impact Testing Machine For Izod,charpy & Amp; Tension Impact Test Machine Weight: 120 Kilograms (Kg)

SPECIFICATIONS:

The Pendulum is mounted on antifriction bearings
It has two starting positions, the upper one for Charpy and the lower one for Izod testing. On release, the pendulum swings down to break the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture & height of raise after rupture of the test specimen; the measurement is read from the maximum pointer on the dial scale.


Charpy Test:
The sample to be tested is kept on support anvils that are typically made from Alloy Steel. These anvils are fitted on the base of the machine. There is also an end stopper that holds the sample in a central position between the support anvils.

Izod Test:
The Izod test piece is clamped vertically in Izod support anvils, fitted at the foot of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece & Allen screw enable clamping of the test piece at correct height with the help of Izod setting gauge
The highly strained & wearing parts like support blocks & strikers are of special alloy steels duly heat treated
Safety guard for the user is provided.
Initial potential energy for Charpy is 300 Joules & for Izod is 170 Joules with a Least Count of 2 Joules (for Analogue models) & resolution of 0.5 Joules (for Digital Model).
