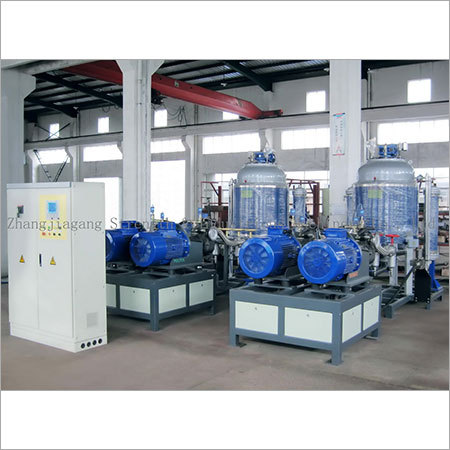

Hpm100 P Refrigerator Cabinet Pu Foaming Machine

Technical Specifications:- * Type: HPM100P; * Suitable foaming system: Rigid foam, half-rigid foam, * Suitable material viscosity 22 degree Centigrade: Polyol: Max. 1500 mPa. S, Isocyanate: Max. 1000 mPa. S * The flow capacity ranges: 150~1600g/s, * Mixing ratio range adjustable 1: 3 ~ 31: 1 * Pouring programming time: 0.50~99.99sec * Water supply required: Processed running water, flow capacity: 300L/min. Brings R1" the ball valve; *The compressed air supply required: 0.7 Mpa, flow capacity: 600NL/min. Dry, oil-less, the dew point -20 degree Centigrade; With the 1.0Mpapressure relief valve and R3/4 " the ball valve; * The nitrogengas supply required (if needs): 0.7 Mpa, flow capacity: 600NL/min. Withthe 1.0Mpa pressure relief valve and R3/4" the ball valve; * Power supply required: Three phase 380V/50Hz plusmn10% or as customer's local condition * Control voltage: AC220V/DC24V; * Enclosure and gas-exhausting system for the units of polyol /cyclopentane; * The flammable gas detecting and monitoring system; * Nitrogen gas pressurization for the container; * Ex type of the motors, valves and relevant electric elements; * Grounding; * Leakage monitoring and control; * Nitrogen gas filling for the mixing head pouring area (mold or cabinet space);
