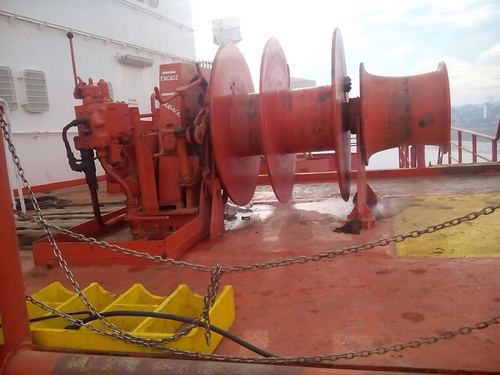

Horizontal Drive Hydraulic Winch

By utilizing skills of our dexterous workforce, we are indulged in manufacturing and supplying a huge spectrum of Drive Hydraulic Winch in Changwon, Gyeongsangnam-do, Korea South.
1.Specification
Horizontal / Drive / Right-Angle
Stages : 1,2,3 / 2,3 / 2,3
Ratio : 1/3 ~ 1/350 / 1/20 ~ 1/140 / 1/20 ~ 1/140
Capacity [ton] : 2~20
Drum diameter [mm] : 270 ~ 700
Drum width [mm] : 350 ~ 1,000
Hydraulic Motor : 55cc or 80cc or 107cc
Working pressure [bar] : 200 ~ 250
Output speed [rpm] : 20
Hydraulic Braking torque [N.m] : 350 ~ 900
Hydraulic Brake releasing pressure [bar] : 15 ~ 35
Hydraulic Brake max pressure [bar] : 315
a Make to order according to customera s need

2. Features
- Reduction gear ratio in two speed system
- Make to order according to customera s need

3. Application
- Mooring arrangements
- Cargo gear arrangement for marine shipbuilding
- Construction equipment
- Distribution industry

4. Company Information
YoohanENS Co., Ltd. manufactures Planetary Reducer, Winch, Hydraulic component in mechanical industry. We are concentrated on research- development to provide a differentiated service based on accumulated technology and know-how.
YH ENS R&D tries to improve professional competence for high efficiency and specially guaranteed durability.
