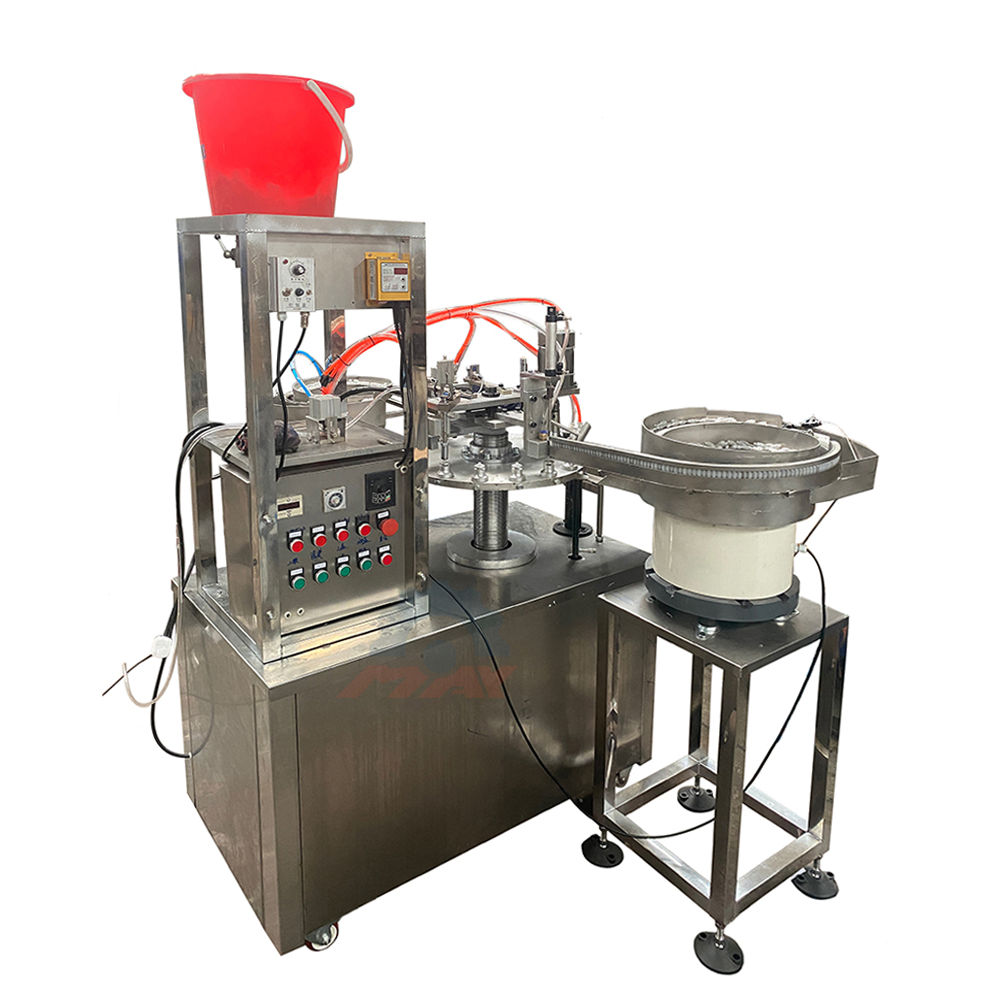

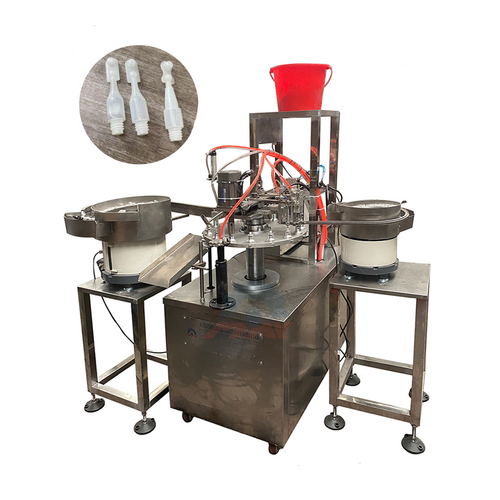

Half Gram Super Glue Filling And Capping Machine

Youtube video: https://youtu.be/KR3EpEVlDY0

Introduce:

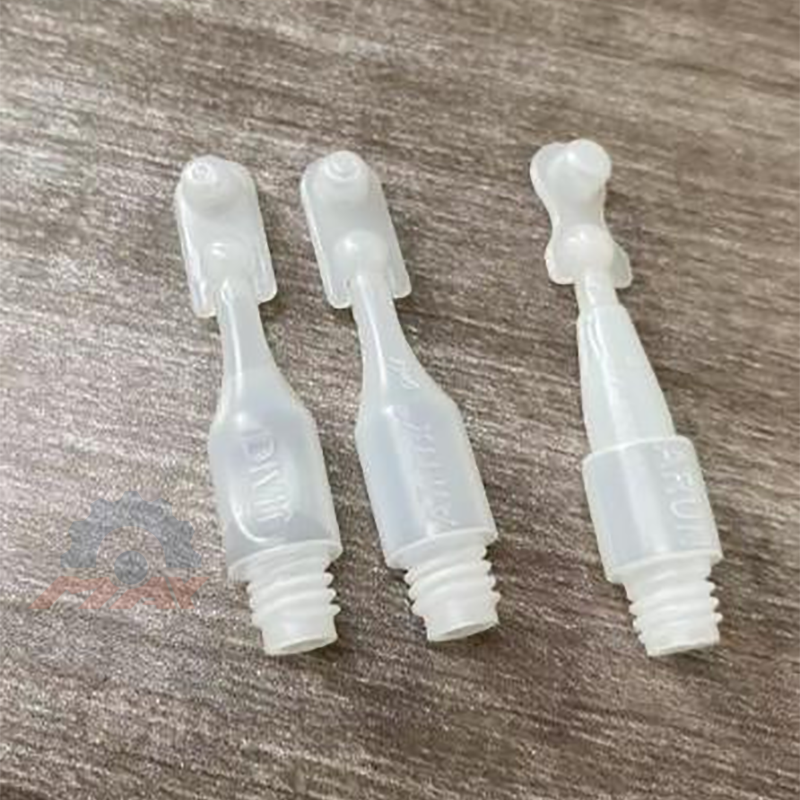

The machine is a new adhesive machine for adhesive factory,which main used for of plastic tube packing.It use 16 tubes station to move working then finish all working during moving.

Use:
It mainly for liquid product ,such as 502glue, instant glue, super glue, cyanoacrylate adhesiveglueanaerobic adhesive (glue)crew-thread glue UVgel uv curable adhesive)

Machine function:
Feed-bottle(manual/automatic),filling,capping(manual/automatic),screw cap,push out -bottle


Working principle :
While adopting the self-motion suction device inhale material and filling warranty the electromagnetism impact disc to screw-cap,can insure the cap screws on to wanting the degree.This machine adopting variable speed control, photo electricity control,live up to filling when meet tube, if no tube do not to filling .The machine apply to the 502 glue water. This machine not only the first -selection ideal equipment of trade of the adhesive produce.but also at all suitable even in such aspects as medicine, cosmetics, condiment ,auxiliary materials,advertisement soaked bean-noddles.

Technical parameters:

Voltage : 220V10% 50-60Hz
Working Capacity : 20-40Pcs/Min) VFDAdjust)
Filling Volume : 0.1-3ml
Filling Percent : 99%
Screw Cap Percent : 99%
Bottle shape : Flat and Round (customized mould)
Tube_cup : 16Pcs)
Power : 1.1Kw
Size : 11005601550
Weight : 650Kg

Contact information :
Email: sales@mautotech.com
Whatsapp and Wechat : 0086-15961807542
Tel:+86-15960807542
Skype: a9778501346
QQ: 651229738
Wuxi Maxwell Automation Technology CO.,Ltd
