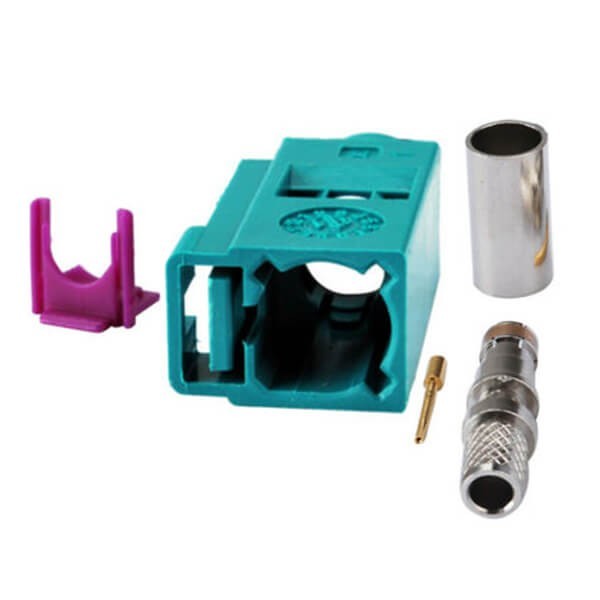

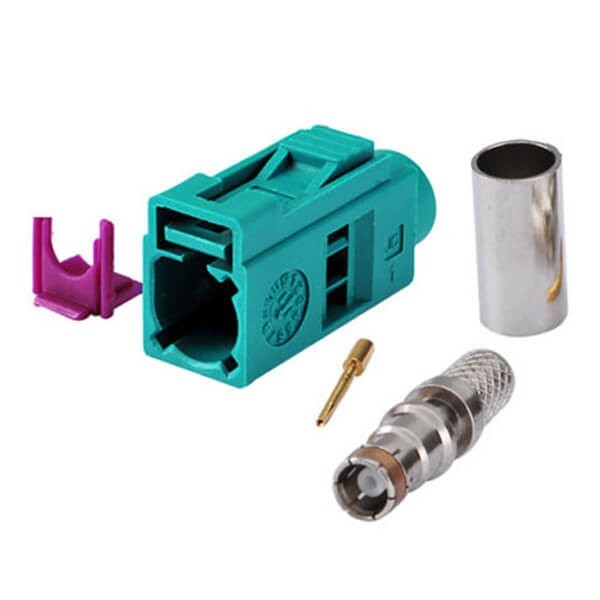

Fakra Connector Types Z Female Crimp Solder
Share

Fakra Connector Types Z Female Crimp Solder

Price: 120 INR / Piece

Get Latest Price

Minimum Order Quantity :

10 Piece

Brand Name :

3an Telecom

In Stock

In Stock

Product Specifications

Usage & ApplicationsAutomotive, infotainment, GPS navigation, telecommunications
Armored MaterialNot armored
Cable TypeRF coaxial cable (optional with cable)
Conductor TypeOther, Stranded or solid (as per cable)
Install TypeCable crimp/solder installation
WeightApprox. 7g
Conductor ShapeRound
Core NumberSingle core
Rated Temperature-40AdegC to +105AdegC
Impedance50 Ohm
Diameter8.2 mm max
Tensile StrengthMinimum 90 N with crimp sleeve
FeaturesZ type code for automotive RF communication; Secure locking system; Snap-on interface; Crimp and solder termination compatibility; Suitable for high frequency up to 6 GHz
InsulationPTFE dielectric
Locking TypeSnap-on with locking interface
Operating Temperature-40AdegC to +105AdegC
Core MaterialCopper
Number of Conductor1
Dielectiric Strength1000 V RMS min
Product TypeFakra Connector Type Z Female Crimp Solder
LengthStandard as per cable or application need
VoltageOther, 60 V RMS max
Insulation MaterialPTFE
ApplicationOther, GPS, GSM, automotive RF applications, multimedia interfaces, telematics
Conductor MaterialCopper
Jacket MaterialPVC
Storage Temperature-40AdegC to +85AdegC
Connector ColorBlack
Shield MaterialCopper alloy with tin plating
Jacket ColorOther, Custom (default: black)
Dimension (L*W*H)Refer to datasheet; typically approx 23 mm length
ColorBlack or as specified
MaterialBrass, PTFE, copper alloys
SizeStandard Fakra Z interface size
Main Domestic MarketAll India

Product Overview

Key Features

Description: RF Connector,Fakra Connector,Female,right angle,Solder,Crimp,for Cable,RG58,LMR-195,RG400,RG142,Brass,Nickel plating
Features:
RF Connector,Fakra Connector,Female,right angle,Solder,Crimp,for Cable,RG58,LMR-195,RG400,RG142,Brass,Nickel plating
FAKRA rf coax circular connector, designed for automotive industry. With secondary locking structure
14 different mechanical and color codes discrimination and misplaced structure to prevent mismatch;
Safe and fully automatic assembly system to ensure the competitive price and high efficiency. Achieve the ROHS standard;
Widely used in car navigation systems, remote control systems, car TV, audio equipment, antenna and so on;
From the OEM Original Factory, same quality with much better price.
