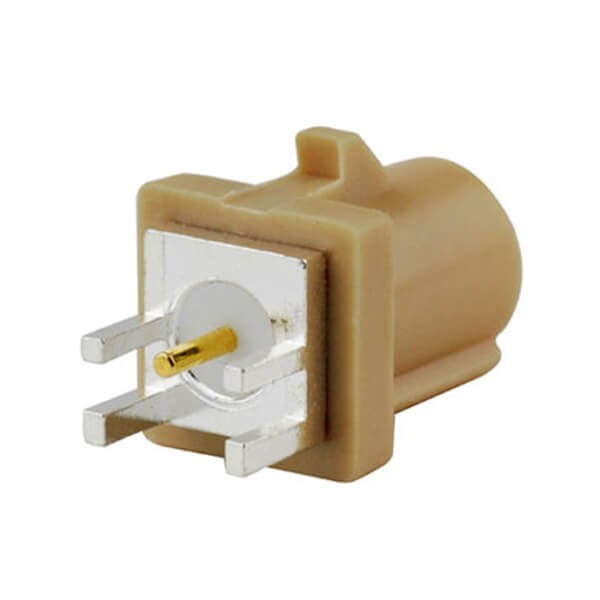

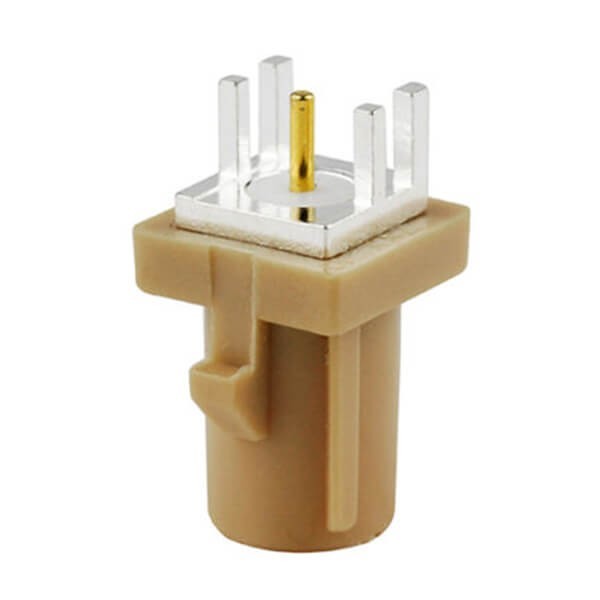

Fakra B Connector Fakra Smb Male Pcb Mount Plug Straight End Launch Beige Bluetooth Rf Connector
Price: 145 INR / Piece
Get Latest Price
Minimum Order Quantity :
5 Piece
Brand Name :
3an Telecom
In Stock
Product Specifications
| Usage & Applications | Automotive, Bluetooth modules, communication devices, RF modules |
| Operating Temperature | -40AdegC to +105AdegC |
| Diameter | Outer body approx. 8 mm |
| Dielectiric Strength | >1000 V RMS at sea level |
| Weight | Approx. 4 grams |
| Conductor Type | Solid |
| Number of Conductor | 1 |
| Cable Type | N/A (connector for PCB mounting) |
| Rated Temperature | -40AdegC to +105AdegC |
| Install Type | PCB Through Hole |
| Insulation | PTFE |
| Features | High-frequency performance, secure locking, color-coded identification, suitable for Bluetooth and RF applications, compact design |
| Locking Type | Integrated locking mechanism (Fakra standard) |
| Core Material | Brass |
| Impedance | 50 I(c) |
| Conductor Shape | Other, Straight Pin |
| Tensile Strength | a%0Y= 100 N (housing-to-cable retention, if cabled) |
| Core Number | Single-core |
| Product Type | Fakra B SMB Male PCB Mount Plug, Straight End Launch |
| Length | Custom PCB mount (body length approx. 16.7 mm) |
| Voltage | Other, Maximum 335 V RMS continuous |
| Insulation Material | Other, PTFE (Polytetrafluoroethylene) |
| Application | Other, Bluetooth, RF communication, automotive telematics, GPS, multimedia systems |
| Conductor Material | Brass |
| Jacket Material | Other, N/A (Connector only) |
| Storage Temperature | -40AdegC to +85AdegC |
| Connector Color | Beige |
| Shield Material | Copper Alloy with Nickel Plating |
| Jacket Color | Other, N/A (Connector only) |
| Dimension (L*W*H) | Approx. 16.7 A-- 12 A-- 10 mm |
| Material | Plastic housing, metal contact (brass/copper alloy) |
| Color | Beige |
| Size | Standard Fakra B form factor |
| Main Domestic Market | All India |
Product Overview
Key Features
Features:
RF Connector,Fakra Connector,Straight,Male,Plate Edge,PCB mount,Brass,Nickel plating
FAKRA rf coax circular connector, designed for automotive industry With secondary locking structure
14 different mechanical and color codes discrimination and misplaced structure to prevent mismatch
Safe and fully automatic assembly system to ensure the competitive price and high efficiency Achieve the ROHS standard;
Widely used in car navigation systems, remote control systems, car TV, audio equipment, antenna and so on;
From the OEM Original Factory, same quality with much better price.
Appliance
WLAN
GPS
PC/LAN
Automotive
Base Station
Head End Equipment
Radios
Wireless/ Networks Antenna
Instrumentation
Telecom
