EMC Test Device Damped Oscillatory Magnetic Field Generator per IEC 61000-4-10

1.1 Overview

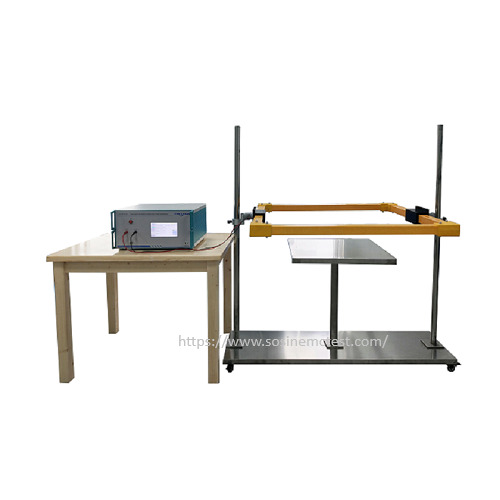

Damped oscillatory magnetic fields are generated by the switching of H.V. bus-bars by isolators or disconnectors. The magnetic fields to which equipment subjected can influence the reliable operation of equipment and systems. PFM S10 damped oscillatory wave magnetic field immunity test system consists of a damped oscillatory wave magnetic field generator and the coil, fully meet the requirements of latest standard IEC 61000-4-10.

1.2 Standard and basis of product designing & manufacturing
IEC 61000-4-10: Electromagnetic compatibility (EMC) - Part 4-10: Testing and measurement techniques - Damped oscillatory magnetic field immunity test

1.3 Power supply
Input voltage: AC 220V
Frequency: 50/60Hz
Voltage resolution: 1V
Voltage harmonic distortionAcA A 5%

1.4 Environment
Indoor use
Ambient temperature 15AcA A ~35AcA A
Relative humidity no more than 85%
No conductive dust, no fire or explosion hazard, no corroding metal or insulating gas, sine wave voltage waveform, waveform distortion rateAcA A 5%
Earthing resistance not more than 0.5A AC

1.5 Features
User friendly 7in touch panel display
Support multi-language & facilitate users
Built-in environment self-test program
RS 232/USB interface for PC control operation

1.6 Technical data
ModelPFM S10
Operation mode7AcA A touch color screen
Magnetic field strength5~100A/m, continuously adjustable
Oscillation frequency100kHz, 1MHz
PolarityPositive/negative/alternating
Rise time75ns
Decay rate50% of the peak value after 3 to 6 cycles
Repetition rate1~80Hz (100kHz frequency), continuously adjustable
1~500Hz (1MHz frequency), continuously adjustable
Test duration1~9999s
Interval1~9999s
Number of tests1~9999
Coil size1m*1m
Operation modeManual, auto
Ambient temperature15AcA A ~35AcA A

1.7 About us
Shanghai Sosin Electronics (EMCSOSIN)/Shanghai Shinegil is a leading high-tech enterprise integrating production, sales, and service. Wea ve been committed to the EMC (electromagnetic compatibility) testing field, specializing in providing EMC testing instruments, product rectification and training services. Products are widely used in electronics manufacturing, electric power, new energy, communication, aerospace, teaching, renewable energy, automotive, scientific research, and other industries. We also provide customers with professional EMC system integration solutions.
As a well-known professional instrument manufacturer, our products can meet various industrial testing requirements. With the company's strong product support, application technology strength, system supporting capabilities and high-quality service, we offer our users the most comprehensive testing solutions. We are also ISO 9001 & CE certified.
Our self-developed ESD (electrostatic discharge) generator, EFT (electrical fast transient)/burst generator, lightning surge generator, voltage dips simulator and other EMC testing equipment enjoy a high reputation at home and abroad. We have established a complete sales network and service system throughout the country. It is our goal to develop better products, offer higher quality service, create the best brand, and work hard to solve all kinds of EMC testing problems for our clients. Providing best service and creating values for customers is our eternal pursuit!
Please do not hesitate to contact us if you need any detailed info. Thank you!
