Electro Permanent Magnetic Tilting Plate Handling Equipment
Price:
Get Latest Price
In Stock
Product Specifications
| Material | Steel, Magnet |
| Dimensions | Variable |
| Lifting Capacity | Variable |
| Magnet Count | Variable |
| Magnet Spacing | Variable |
| Power Source | Electric |
| Control | Radio Remote |
| Features | Tilting magnets, Plate handling, Inching feature, Easy tilting, Remote control, Vertical stacking, Horizontal stacking, Efficient handling |
Product Overview
Key Features
Electro Permanent Magnetic Tilting Plate Handling Equipment
Features
- Tilting Electro Permanent Magnets for handling Single plates in either horizontal or vertical position.
- Supplied along with fixed spreader beam.
- "Inching" feature - drops additional plates making sure that only one plate is handled.
- Horizontally placed plates can be stacked in vertical position or vertically stacked plates can be kept in horizontal position by appropriate placement of the magnets.
- Simple self-tilting mechanism by appropriate positioning on plates lifted. No additional mechanism required.
- Spreader beam equipped with elastic suspension for EPMs / control panel / indicative tower lamp / Chain & Bull Ring etc.
- Radio Remote Control integrated.
Applications
- Unloading from trucks and stacking in vertical position.
- Typically from Vertical storage to a Flame / laser / plasma cutting table, etc.
- Can be utilized with EOT / Gantry / Mobile Cranes.
| Art No. | Beam Weight | Magnet Specifications | Plate Characteristics | Lifting Capacity | |||||
| Number of Magnets | Magnet Distance | Th | Length | Width | |||||
| L1 | min | min | max | min | max | max | |||
| mm | mm | mm | mm | mm | mm | kg | |||
| 2147.01 | 2000 | 4 | 1500 | 5 | 1500 | 3600 | 500 | 2500 | 4,000 |
| 2147.02 | 3000 | 4 | 2800 | 5 | 3000 | 12500 | 500 | 3000 | 7,500 |
| 2147.03 | 3200 | 4 | 2800 | 5 | 3000 | 12500 | 500 | 3500 | 10,000 |
| 2147.04 | 3500 | 4 | 2800 | 5 | 3000 | 12500 | 500 | 3500 | 12,000 |
| 2147.05 | 4000 | 6 | 2000 | 5 | 3000 | 12500 | 500 | 3500 | 16,000 |
- Owing to continuous upgradation in design there could be changes in specification.
- Other sizes on request.
Company Details
Focusing on a customer-centric approach, KRISHNA INTERNATIONAL has a pan-India presence and caters to a huge consumer base throughout the country. Buy Magnets & Magnetic Devices in bulk from KRISHNA INTERNATIONAL at Trade India quality-assured products.
Business Type
Exporter, Manufacturer, Supplier
Employee Count
25
Establishment
1984
Working Days
Monday To Sunday
GST NO
07AADFK0692B1ZP
Related Products
Hot Plate Magnetic stirrer, Model: AMBI - MSH AcA A 01
Price: 35446 INR
MOQ - 1 Piece/Pieces
Ambinova Technologies Private Limited
Delhi, Delhi
Permanent Plate Magnets - Gray Permanent Magnets | Industrial Application, Versatile Magnetic Strength
Price: 5000 INR
MOQ - 1 Piece/Pieces
Erich Magnetics
Delhi, Delhi
Magnetic Stirrer - Mild Steel, 2 LTR Capacity | 220 Volt Voltage, 1 Year Warranty, Laboratory Application
Price: 5500 INR
MOQ - 1 Unit/Units
Labments Equipments
Delhi, Delhi

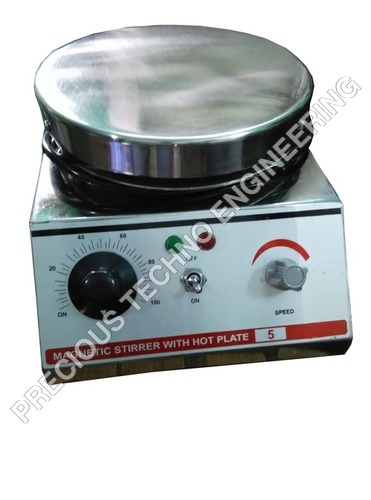

Hot Plate Magnetic Stirrer - Quality Material Construction | Rigorous Quality Checks, Comprehensive Spectrum of Distribution
