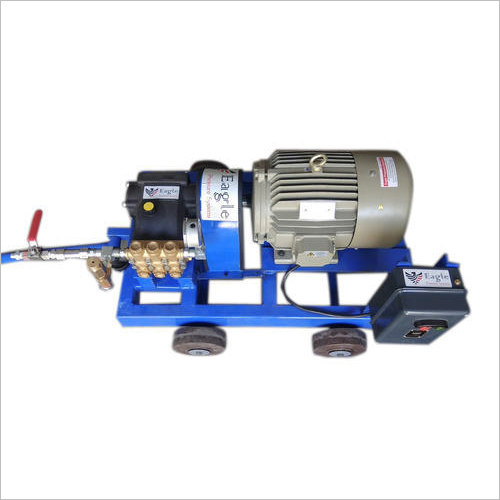

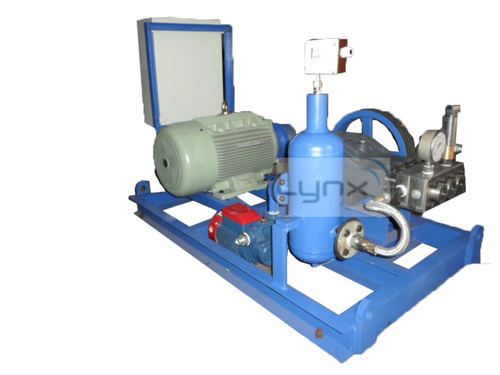

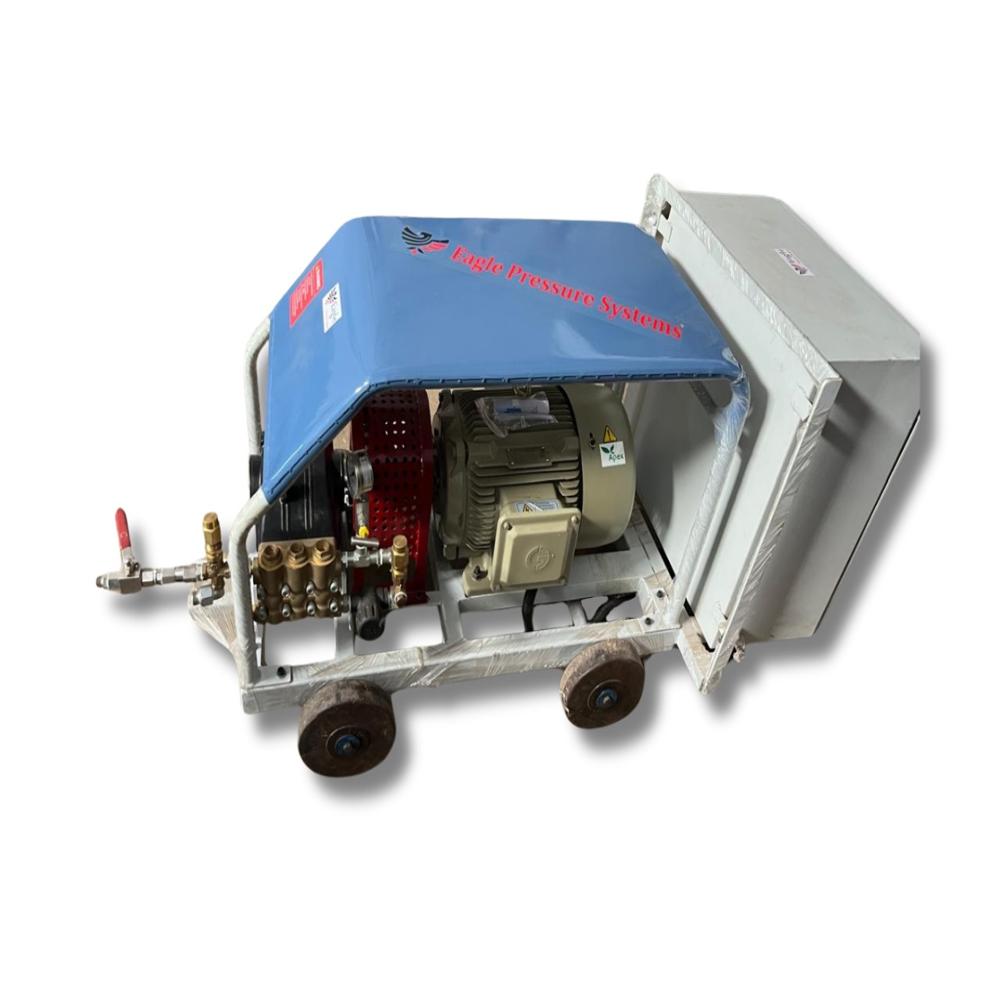

Electric Hydrostatic Pressure Testing Pumps For Leaks And Defects

We are major manufacturer, supplier and exporter of Electric Hydrostatic Pressure Testing Pumps For Leaks And Defects in Ahmedabad, Gujarat, India. Electric hydrostatic pressure testing pumps are characteristic capability to perform High Pressure Hydro Test of Tubes, Pipes, Hoses, Cylinder, Hydro test of Pressure Vessels & Boilers, Hydrostatic Test Pump of Cross Country Pipe Lines, Valves, Castings, Components, etc. for Leaks, Cracks or Defects.

Trii-plex Jettech Systems are Manufacturers; Suppliers & Exporters of High Pressure Test Pumps & Equipments 14 LPM and Pressure 150 BAR with Electric Driven.

Technical Specification:
Model No: NHD-14.150
Flow Rate: 14 LPM (3.70 GPM)
Min. Pressure: 50 BAR (725 PSI)
Max. Pressure: 150 BAR (2175 PSI)
Motor(HP): 2HP~5HP

Technical Features about Plunger Pump:
Pump Head: Forged Brass.
Plungers: Solid Ceramic Plungers.
Pump Main Body: Fully anodized Crankcase.
Connecting Rod: High wear resistant Forged Alloy Steel.
Crank Shaft: High wear resistant Forged Alloy Steel.
Plunger Seal: Improved low and high pressure seals.
Valve Assembly: High wear resistant Stainless Steel.
Oil: 15W40

Applications:
Cross Country Pipelines
Pressure Vessels
C.I. Mains
Casting Parts
Boilers
Gas Cylinders
Pipes & Tube Parts
Fire Extinguisher

Standard Accessories:
Pressure Release Valve made from Brass Metal.
Discharge Pressure Hose with Attachment of A a BSP Length 10 Mtrs.
Stainless Steel Glycerin filled Pressure Gauge with 4a inch Dial.
