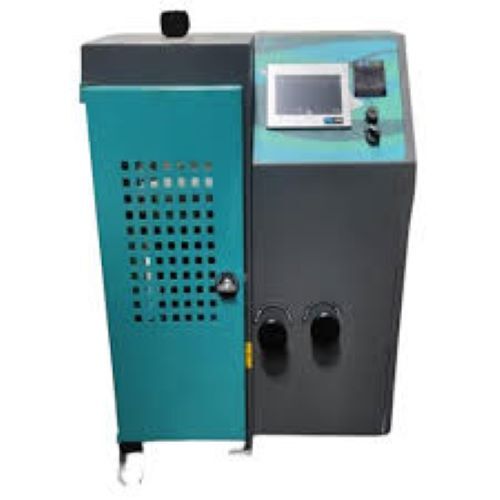

Eco Servo Smart Compression Testing Machine By Mkp Equipments

Smart Series Capacity : 1000kN / 2000kN / 3000kN An advanced servo compression testing machine developed by Zeal International is a robust compression tester manufactured as per International Standards. Equipped with touch screen display, this machine is easy to use and maintained. The load frame is a sturdy welded plate type complete with hydraulic power pack attached to it. Solid machined spacers are supplied to test different sizes of concrete specimen. The piston is duly hard chromed for fast lift and return. Features :- 7a LCD touch screen 10 point calibration facility with auto/manual pace rate regulator On board printing facility Overload cut off facility Piston over lift cut off facility Compact & sturdy design load frame to be base mount Pump clamped to frame Matt finished PU paint in dark color Safety lockable door Platen hardness 55HRC grinded to the finish of 0.02 mm Automatic pace rate control from 0.5kN/sec to 20kN/sec Real time graph for Load vs Time Emergency stop push button Safety for over lift of jack with limit switch cut of facility USB pen drive port for data saving Solid CNC finish distance piece SCADA Software available (at additional cost) Technical Specifications : Unit : ZI-2054-ESS-1 : ZI2054-ESS-2 : ZI2054-ESS-3 Capacity : kN : 1000 : 2000 : 3000 Electronic Display : : EO-D : EO-D : EO-D Ram Diameter : MM : 180 : 250 : 300 Ram Travel : MM : 50 : 50 : 50 Pressure Gauge Diameter : MM : Nil : Nil : Nil Pressure Gauge : kN : Nil : Nil : Nil Least Count : kN : 0.01 : 0.01 : 0.01 Maximum Pressure : Kg/cm : 410 : 410 : 410 Platen Diameter : MM : 220 : 300 : 300 Horizontal Clearance : MM : 260 : 320 : 380 Vertical Day Light : MM : 310 : 310 : 310 Height of Load Frame : MM : 770 : 890 : 890 Weight of Load Frame : Kg. : 250 : 580 : 800 Specimen Size (can be tested) : : : : Cube : MM : 50, 70.6, 100, 150 : 100, 150, 200 : 100, 150, 200 Cylinderical : MM : 100 x 200 : 100 x 200, 150 x 300 : 100 x 200, 150 x 300 Electrical Version : : : : Motor : H.P. : 230 V, 2 Ph, 50 Hz : 230 V, 2 Ph, 50 Hz : 230 V, 2 Ph, 50 Hz R.P.M. : : 1440 : 1440 : 1440 Electronic Spped Drive : : Yes : Yes : Yes Height of Pumping Unit : MM : 810 : 890 : 890 Weight of Pumping Unit : Kg. : 90 : 90 : 90
