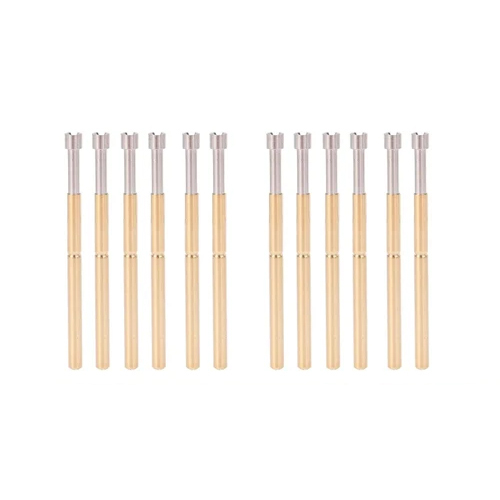

Golden Double-sided Spring Pogo Pin Test Probe Scpc028 Series 6.7 Mm In Total Length

Electronic Specification:
Current Rating2 amps
Contact Resistance100 milliohms max
Bandwidth7.7 GHz at -1dB
Inductance1MHZ at -0.02322 uH
Captance1MHZ at 1.09432 uF

Specifications:
Full Stroke1 mm
Rated Stroke0.8 mm
Spring Force12A 3 gf at load 0.8 mm
18A 5 gf at load 0.8 mm
Mechanical Lifeabout 100000 cycles
Common tip styles include B, J, J1, U, U1, etc. All of the probes are extremely thin and miniature, however, the requirement for their test accuracy is very strict. They are mainly applied to the fields of semiconductor tests and frequency tests of communication devices, for example, the frequency tests of mobile phones, walkie-talkies, computers, etc.

This product SCPC028 we will introduce is 0.28 mm in barrel diameter and 6.7 mm in total length. It can be applied to the tests of products which requires relatively high accuracy, for example frequency tests of semiconductor and communication devices. Developed and manufactured on our own, this product takes the lead in the test industry. Our complete production lines can also meet the needs for mass production.

The bottom plunger is made from beryllium copper plated with nickel and gold. The Top plunger is made from SK4 plated with gold and nickel. The inner spring is made from music wire plated with gold and nickel. This probe pin could withstand the current up to 2 amps. The typical maximal contact resistance is about 100 milliohms.
