Crosby S 421 T Wedge Sockets - Cast Steel 9-10mm to 30-32mm Red | High Efficiency QUIC-CHECK "Go/No-Go" Feature Fatigue Resistance

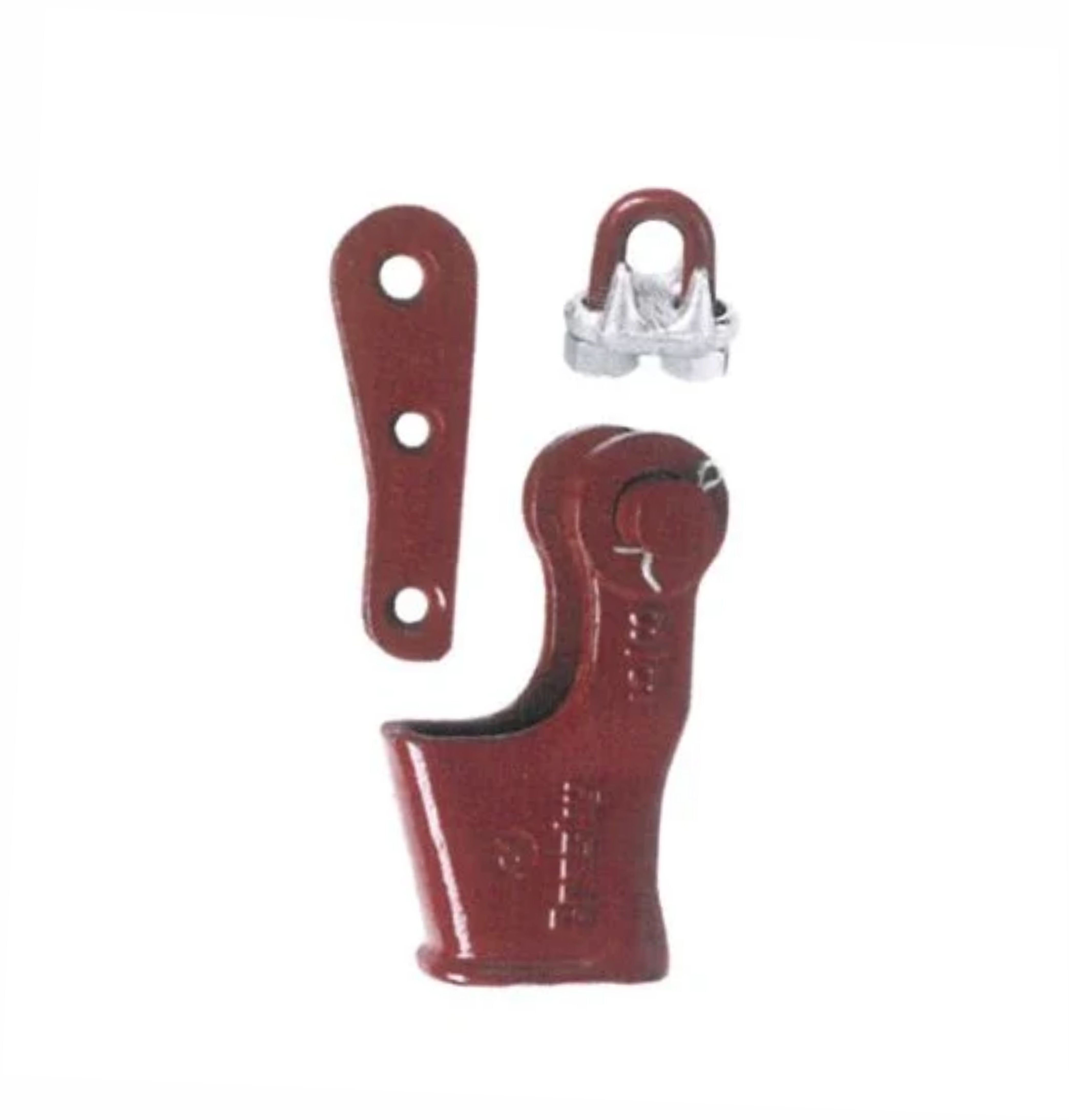

Crosby S 421 T Wedge sockets
Features

Secures the tail or "dead end of the wire rope to the wedge thus eliminates loss or "Punch out of the wedge.
Eliminates the need for an extra piece of rope and is easily installed.
The TERMINATOR wedge eliminates the potential breaking off of the tail due to fatigue.
The tail which is secured by the base of the clip and the wedge is left undeformed and available for reuse.
Incorporates Crosbys patented QUIC-CHECK "Go and "No-Go feature cast into the wedge.
Utilises standard Crosby Red-U-Bolt wire rope clip.
Generates a minimum efficiency of 80% based on the catalogue breaking strength of the wire rope.
Pin diameter and jaw opening allows wedge and socket to be used in conjunction with open swage and spelter sockets.
Wedge sockets meet the performance requirements of Federal Specificatio RR-S-550F Type C except those provisions required of the contractor.
