Colpit Oscillator - Application: Engineering Electronics Instruments
Price: 1000.00 INR / Piece
(1000.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Operating Temperature | 0C to 70C |
| Output | High Frequency Sine Wave |
| Interface | Terminal Block output |
| Thermal Conductivity | Standard PCB material |
| Features | Easy-to-use, Educational, Compact, Adjustable frequency |
| Response Time | Instantaneous |
| Color | Green and Black (PCB Mount) |
| Power Source | Battery or external DC supply |
| IP Rating | Not Rated |
| Components | Transistor, Capacitors, Inductors, Variable Resistor (Potentiometer), PCB Base |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Power Supply | External DC Source |
| Input | DC Power Supply |
| Product Type | COLPIT OSCILLATOR |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 9V DC |
| Supply Voltage | 9V DC |
| Size | 85mm (L) x 55mm (W) |
| Dimension (L*W*H) | 85mm x 55mm x 25mm |
| Function | Colpitt Oscillator used for generating sinusoidal oscillations at high frequencies. |
| Weight | 125 grams |
| Current Rating | 60mA (Max) |
| Thickness | Standard PCB thickness approx. 1.6mm |
| Capacity | General laboratory use |
| Frequency | Adjustable, typically 100kHz - 1MHz |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Color | Green and Black (PCB Mount) |
| GSTIN | 0% |
Product Overview
Key Features

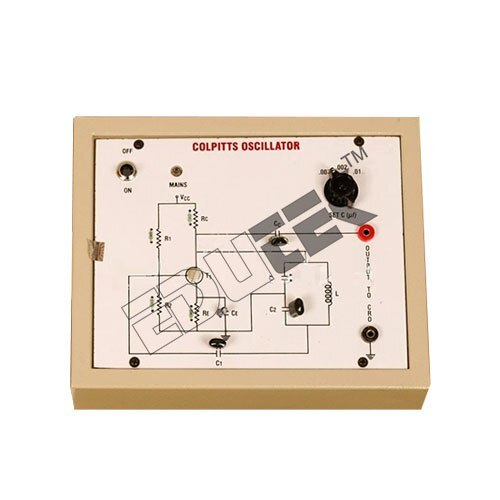

COLPIT OSCILLATOR
Objective: To study the Frequency and Wave shape generated by a Colpitts Oscillator.
Features:
Instrument comprises of 12 V DC Regulated Power Supply, Circuit diagram printed & components mounted on front panel.
