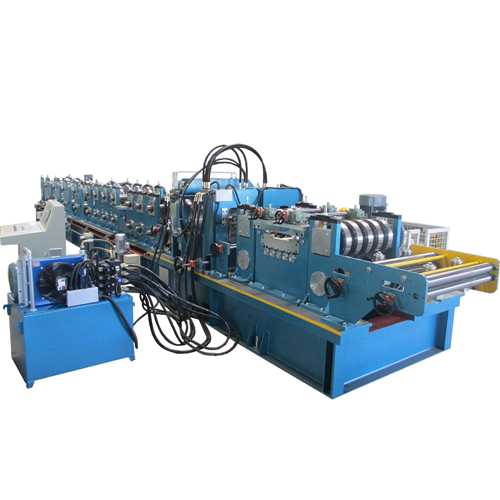

Cold Roll Forming Machine (Corrugate) Cas No: 357437-90-2

We are extensively known for manufacturing, exporting, distributing, trading and supplying Cold Roll Forming Machine (Corrugate) in Nantong, Jiangsu, China.

Main Equipment
1. (5+1) TonA 1250 Hydraulic Expand Uncoiler with Coil Car
-- Hydraulic system to expand coil inner hole
-- Support arm equipped at the end of the main shaft
-- Taper wedge expand type
-- Self-contained electric controller, out of control system of the complete line
-- Double roller Chain and Pinion
-- Coil car can move up/down and forward/backward
2. Entry Bench
-- Un-powered, Height Adjustable
3. Manual pre-shearing Device
-- un-powered
4. Roll Forming Machine
-- Gear/Sprocket driving
-- Manual Clutch to switch the driven system
-- Forming speed: Approx. 12m/min
-- Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside
5. Hydraulic Cutting Device
-- Stop to cut, Post cut, No blanking cut
-- Equipped with the lubrication cover in the moving parts of the cutting press.
6. PLC Control System
-- Control the quantity & cutting length automatically.
-- Combined with: PLC, Touch Screen, Inverter (Siemens), Encoder (Omron), etc
-- Cut-to-length tolerancea A 2 mm
7. S480 Inkjet Printer including encoder holder and printer table
8. Product rack
-- Un-powered, Height Adjustable
