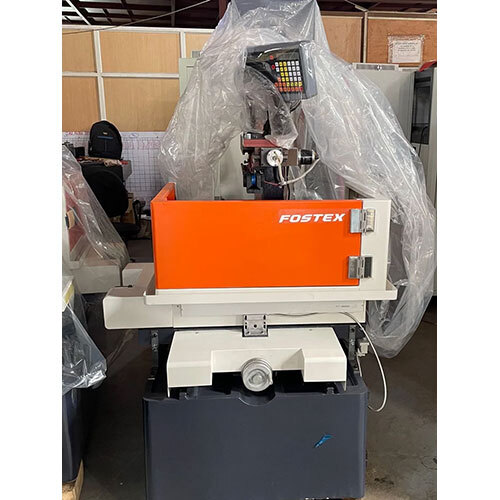

Cnc Wire Cut Edm Machine - Metal, 1300x1200x1400 Mm, Gray & White | Automatic Operation, High Accuracy, Multi-pass Facility, Low Maintenance

We are exporter, manufacture and supplier of this CNC Wire Cut EDM Machine in Pune, Maharashtra, India.

Product Details:

Minimum Order Quantity:1 Set
Automatic Grade:Automatic
Brand/Make:Fostex
Model:FDK-7732
Table Size:700x440 mm
Table Travel:450x350 mm
Max Z AxisTravel:450 mm
Max Workpiece Weight:400 kg
Max Cutting Angle:6 degree, 15 degree
Dimension:1300x1200x1400 mm
Position Accuracy:0.015/300 mm
Repeat ability:0.01 mm
Wire Moving Speed:11.5 m/s
Cutting Speed:120-140 mm2/min
Power:Single Phase, 220V/50Hz / Three Phase, 415V/50Hz (less than 2.0 kW)
Max Cutting Speed:160-180 mm2/min
Wire Diameter:0.12 to 0.25 mm
Net Weight:1200 kg

Features

Lowest running cost
Reusable molybdenum wire
Multi pass facility (optional)
It can make option of high speed and medium speed
High accuracy and fine surface quality cab be while machining speed in high
Coolant oil is used as dieletric / low cost soap gel can be used as cutting oil
Maximum cutting speed 180mm2/min
Low cost
Low maintenance
Function of taper processing
Functions of interpolation of straight line and circular arc
automatic centre find, edge find operation and pulse at wire break
Function of memorizing when power was cut and auto-stop after processing
Auto lock after giving run command
Good rigidity, running placidly. Strong function, convenient and reliable operation
CNC Pulse Generator
Display of cutting rate
Display of machining time
Single block execution
Display of operator help and error message
Operating Platform Window XP
Gap Short Recovery
Mirror Image of Program across X.Y was
Color CRT Display
Machine Tools
Ball screw for X, Y, table movement
Fine pitch screw for u.v movement
Stepper motor for X, Y, u, v axis movement
Flexible job stand for job mounting
Variable speed AC motor for wire drum assembly
Simultaneously controlled X, Y, u, v
