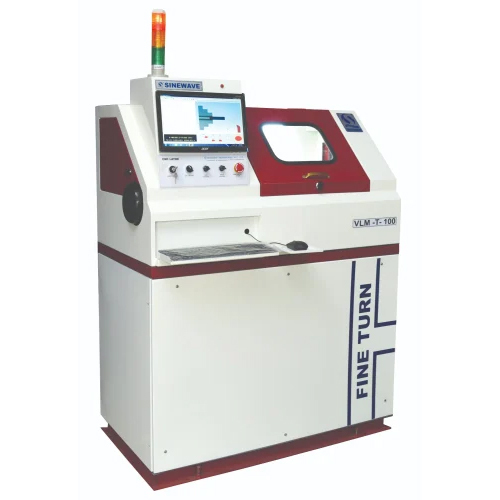

Cnc Lathe Trainer Kit - 92x94x67 Inches , White And Red Finish, 1000 Kg Weight, Rugged Design With Advanced Stepper Motors And Emergency Safety Features

With our expertise in the respective domain, we are engaged in offering CNC Lathe Trainer Kit, which is provided with table locking facility with stepper motor brakes. Known for their alarm & self diagnostic functions, these trainers can be directly linked to PC, thereby loading of program on micro-controller is not required. Besides, the trainer can also automatically detects wrong steps in programming.

Other Details:
CAD-CAM compatibility
Machine is directly linked to PC, hence loading of program on micro-controller is not required
Easy maintenance with spare card system by layman
Table Locking facility with stepper motor brakes
Powerful stepper Motors for axis control
Variable speed DC Drives for spindle with DC Motor
Burn in components test at 150% load
Rugged Machine with Ground Bed
Wear resistant Turcite coating is provided on beds
Stick slip motion is totally avoided
Powerful PC software for graphics
High speed integer interpolation system for Circular interpolation
Display of Actual Feed rate, Spindle speed in execution & simulation mode
Automatically detects wrong steps in programming
Safety Functions with Emergency Stop, Over travel Limits
Alarm & self Diagnostic Functions are Provided

Features:
Rugged Machine with Ground Bed
8 Station Programmable Turret
Industrial Motion Controller
Latest Technological Platform for Software
Interactive CNC Part Programming Software
3D Material Removal Simulation
STL Import / Export Facility
Innovative live View on Screen
Customizable Tool Library
Customizable STK Design
Manual Pulse Generator (Optional)
FMS & CIM Compatibility
Hydraulic Chuck (Optional)
Auto Door (Optional) features of cnc lathe trainers
Light weight
Accurate reading
Excellent load capacity

Other Specifications:

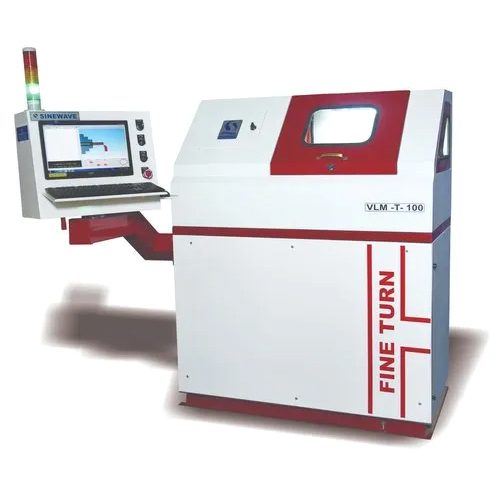

Model : VLM-T- 100
Spindle Motor : 2 H.P DC Motor ( 300-3000 RPM)
Automatic Lubrication Points : Provided
Interpolation : Linear, Circular
Programmable Feed Rate : 0- 800 mm/Min.
Rapid Feed Rate : 0- 1200 mm/Min
Coolant System : 40 Lts. ( Programmable )
Lubrication : Centralized ( Programmable )
Axis Motor : Stepper / Servo Motor (Optional)
Mains Supply : 230 V AC, Single Phase
