Clipping & Clamping Circuit Apparatus - Dc Regulated Power Supply 0-3v Dc / 150 Ma, Engraved Circuit Diagram, Two Diodes For Clipping & Clamping | Designed For Engineering Electronics Instruments
Price: 50.0 INR / Piece
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Features | Simple circuit design, rugged construction, easy-to-use for basic laboratory experiments. |
| Output | Clipped or clamped waveform via output terminals |
| IP Rating | Not Rated (Laboratory instrument) |
| Resolution | Analog, dependent on test instrument/oscilloscope used |
| Power Source | Mains powered (AC 230V A+-10%) |
| Input | Sine, Square, or DC input signals via external function generator (not included) |
| Display Type | Other, No display, test points for oscilloscope connection |
| Components | Includes diodes, resistors, capacitors, test points, and connection leads |
| Power Supply | 230V A+-10% AC, 50 Hz |
| Response Time | Instantaneous, depends on circuit components |
| Operating Temperature | 0AdegC to 50AdegC |
| Interface | Banana sockets/test points for input and output |
| Product Type | CLIPPING & CLAMPING CIRCUIT APPARATUS |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 230V AC |
| Supply Voltage | 230V AC |
| Size | Standard instrument box (approx. 25 cm x 18 cm x 8 cm) |
| Dimension (L*W*H) | 250 x 180 x 80 mm |
| Function | Demonstrates the working of both clipping and clamping circuits using standard electronic components. |
| Color | Blue/Black (As in image) |
| Weight | Approx. 1.3 kg |
| Current Rating | <50 mA (Operating current) |
| Capacity | Suitable for dual circuit experiments |
| Thickness | Approx. 3 mm panel thickness |
| Frequency | 50 Hz operation (mains frequency) |
Product Overview
Key Features
CLIPPING & CLAMPING CIRCUIT APPARATUS
Description:

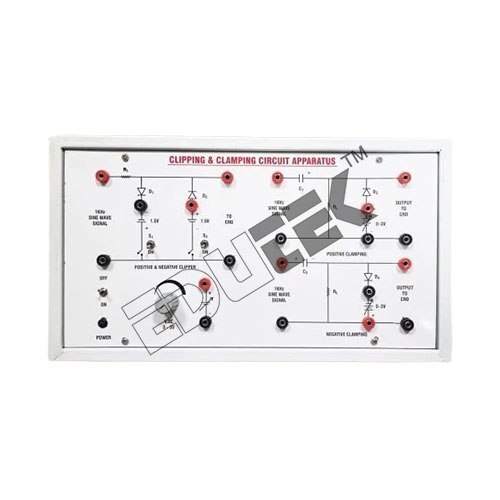

Instrument Comprises of DC regulated power supply 0-3 V DC / 150 mA, Two fix output DC power supplies connected in series of diodes for positive & negative clipping, circuit diagram for clipping & clamping circuit is engraved on front panel components placed inside & connections brought out at 4mm sockets.
