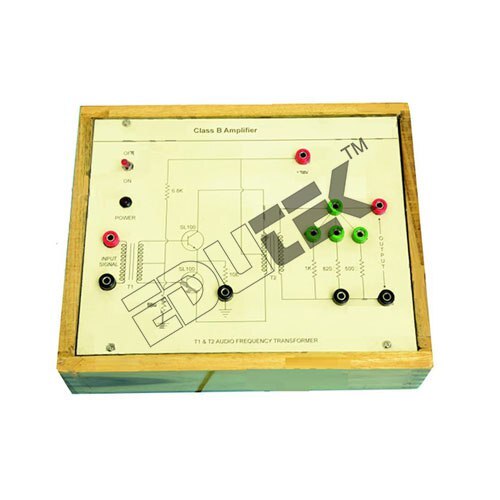

Class B Amplifier - 230v Mains Supply, Frequency Variable 10 Khz To 100 Khz, Amplitude Adjustable 0 To 5vpp | Engineering Electronics Instrument For Detailed Circuit Studies
Price: 50.0 INR / Piece
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| Power Supply | AC Mains / 12V DC |
| Display Type | Other, No Display |
| Operating Temperature | 0AdegC to 50AdegC |
| Power Source | AC Mains / DC Adapter |
| Input | Audio Signal Input |
| Thermal Conductivity | Aluminum Heat Sink for Cooling |
| Features | Low Distortion, High Efficiency, Built-in Protection |
| Output | Speaker / Load Output |
| Components | Transistors, Resistors, Capacitors, PCB Mounted |
| Interface | Binding Post Connectors |
| IP Rating | IP20 |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Response Time | Instantaneous |
| Product Type | CLASS B AMPLIFIER |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 12V DC |
| Supply Voltage | 12V DC |
| Size | Standard Compact |
| Dimension (L*W*H) | 260 mm x 200 mm x 80 mm |
| Function | Amplification of Audio Signals |
| Color | Blue & Black |
| Weight | Approx. 1500 grams |
| Thickness | 2 mm Cabinet |
| Current Rating | 1A |
| Capacity | 5W to 10W Output Power |
| Frequency | 20 Hz ~ 20 kHz |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features
CLASS B AMPLIFIER
Study of the working principle of class A Amplifier Study of the working principle of Class B and Class AB Push pull Amplifier Study of the working principle of class C Amplifier and its operation at tuned frequency Study of the working principle of Differential Amplifier
Technical Specifications:
Mains supply: 230V 10%, 50Hz
DC power supply Fixed: +12V, -12V, +5V, -5V
Frequency Variable: 10 kHz to 100 kHz
Amplitude Variable: 0 to 5Vpp
Fuse Slow Blow: 500mA
