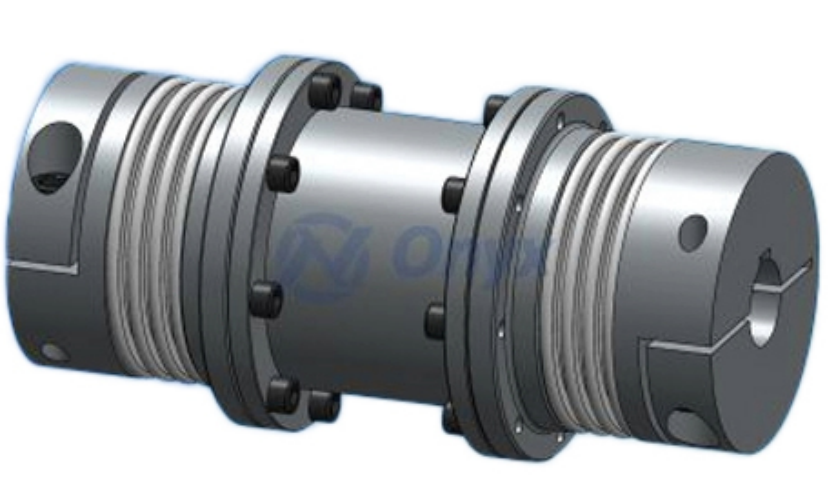

Clamping Hubs Line Shaft Bellow Coupling - Color: Grey

Key specifications
Specific specifications vary by brand and model, but here are general ranges based on common product examples:
Torque range: Approximately 0.1 to 1400 Nm, depending on the model and size.
Bore diameter: Typically available in a range from 3 mm to 80 mm, with some models handling larger shaft sizes. Bore tolerance is often H7.
Outside diameter (OD): Varies widely with torque rating and bore size. For example, a 60 Nm model has a 66 mm OD.
Length: From standard lengths to extended line shaft models up to 4,000 mm, for spanning large distances.
Material: The hubs are commonly made from aluminum (for lower torque) or steel (for higher torque). The bellows are high-grade stainless steel.
Speed: Capable of high speeds, often up to 15,000 RPM for standard models and up to 60,000 RPM for dynamically balanced versions.
Temperature range: A typical operating range is from -30 C to +120 C, though this may vary.
