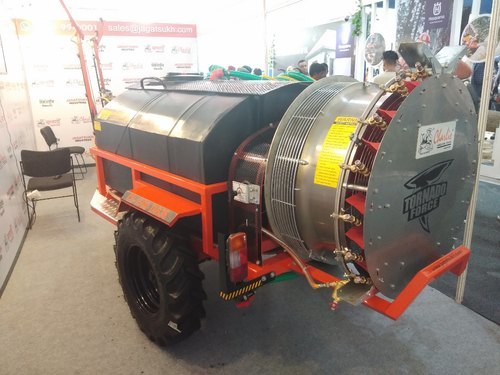

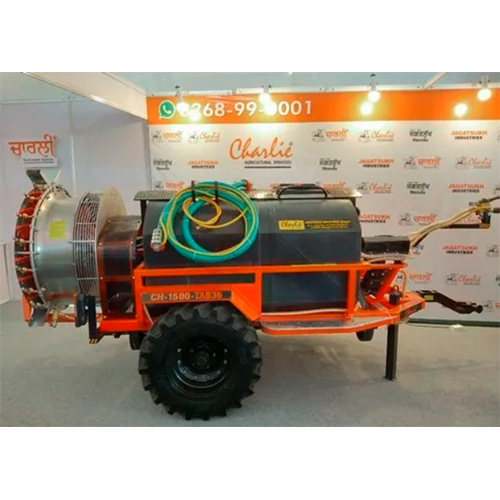

CHARLIE TORNADO FORCE DISINFECTION SENSITIZING MACHINE

Technical Specifications :- Model No. CH-1500-T-AB36 (800mm) ( For Commercial Use)

Tank :-



Capacity

1500 litters

Level indicator

Graduated circular dial

Pump :-



Capacity

75 litters/Min

Suction Filters :-



Capacity

100 litter/min

LineFilters :-



Type

Brass Body with flush out valve

Pressure and capacity

40 bars and 25 ltr/min

Fan Unit :-



Size & No of blades

800 mm 32”, 10 blades

No. of Nozzle

14 units (Italian Make)

Type of nozzle

Rotatable, Brass body, Ceramic Tip with cone variable adjustment

Gear Box : -



Type

Two speed gear box Comer® famous Brand Made in Italy

Drive through

propeller shaft and 3.2B pully

Auto filling :-



Size

40 mm id 16 feet long

Size :-



Length x width x height

138” x 67” x 66” inches / (350 x 170 x 168 cm)

Weight

1150 kg

Track width

135 cm

Ground clearance

12 inches

Tires

7.50 16R

PTO Shaft :-



Length

14 inches

Type & spline

6 spline telescoping (21 spline optional)

Agricultural Equipment is widely utilized in agricultural industries for increasing the productivity of the land. And, to protect the crops from harmful insects and pests, the pesticides are widely used by the farmers. Thus, to provide effective solutions to the agricultural needs of the customers, we, Jagatsukh Industries, came into formation. Being a trusted manufacturer and exporter of India, we are meeting the requirements of numerous Farmers and Cultivators with high quality range of Tractor Mounted Sprayer, Knapsack Sprayer, Battery Sprayer, Trailer Sprayer, HTP Power Sprayer, Motorized Power Sprayer, Boom Sprayers etc. Our entire range of product is known for its accurate performance, high productivity and can withstand heavy duty. We ar

Product Image :-
