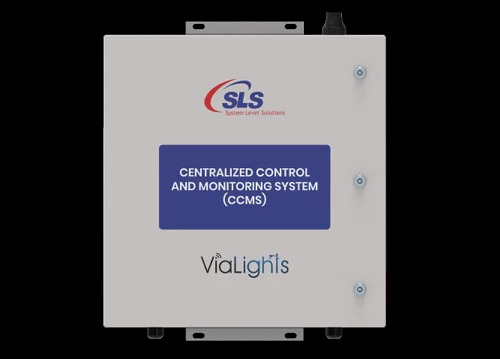

Vialights' Centralised Control & Monitoring System - Application: Industrial

ViaLights' Centralised Control and Monitoring System (CCMS) offers a complete feeder control panel for a group of street lights. Typically, a group of 30-50 lighting poles are connected to the feeder panel, which is further connected to the Internet using a 4G network. ViaLights has designed CCMS indigenously for Street Lighting Projects in India that controls lighting schedules, monitors energy consumption and provides fault and theft detection. It applies to all types of luminaries, such as LEDs, HIDs, CFLs, FTLs, and induction lamps.

CCMS Specification:
Panel Type: 3-Phase / 1-Phase
Operating input voltage: 90 Vac P-P to 440 Vac P-P
Mains Frequency: 50Hz
Operating Temperature Range: -10A C to +55A C
Working Humidity Range: 10% to 90% RH
Surge protection: Type-2, 40KA
Cabinet enclosure: Single Door, Unibody Construction, Right Hand Door Hinge with Cam Lock, Foam On Door Gasket, Separate Component Mounting Plate.
Protection rating: IP54 & IK08
Finish of Enclosure/Door/Mounting Plate: Powder coated with CED (Cathodic Electro Deposition) process in textured 7032 (Light Grey)
RTC / Calendar: 100 Years Calendar, RTC ( Real Time Clock) with Battery Backup
GSM / GPRS: GPRS Quad band 850/900/1800/1900MHZ @ GSM
GPRS multi-slot class 12, coding scheme CS-1 to 4
Packet data up to 85.6Kbps
GPRS Certificates: CE/ GCF/ FCC/ PTCRB/ IC/ANATEL/ NORM/
Energy Meter: Three/Single Phase
IS 13779 Certification. Make: L&T / Secure / L&G / Genus
Communication: RS 485/RS232
Measurement accuracy: Class 1
Switch gears: MCB, RCCB Contactor
RTU Interface: One micro USB port.
One extra relay
Rs485 / RS232 for meter communication
Ethernet port
Extra DOs, DIs and I2C for sensor integration
