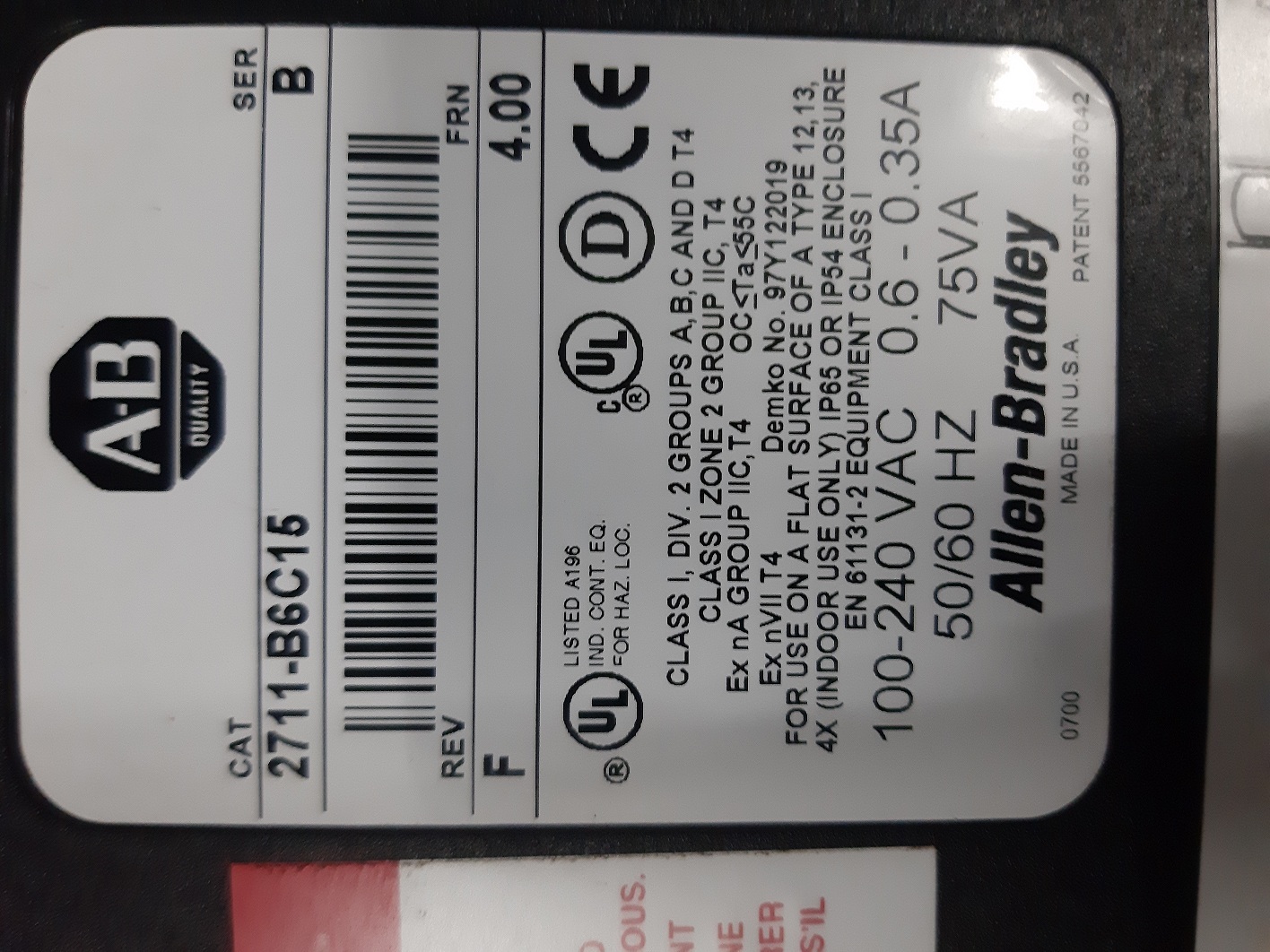

Allen Bradley Panelview 600 Hmi 2711-b6c15

Price:

Get Latest Price

Brand Name :

Allen Bradley

In Stock

Product Specifications

Components	Touchscreen, Keypad, LCD Display
Operating Voltage	18aEUR"32V DC
Panel Type	Operator Interface Panel
Rated Operation Voltage	24V DC
Current Rating	0.75A @ 24V DC
Features	Touchscreen and keypad input, configurable function keys, password security, alarm handling, recipe management, multilingual support
Connectivity Type	RS-232, RS-422/485, DH-485, Remote I/O, DF1, DeviceNet, Parallel printer port
Protection Class	Class I, Div 2
Protection Level	Other, IP65 (front panel)
Thickness	Approximately 60 mm
Control System	Programmable Logic Controller (PLC) compatible
Cabinet Material	Plastic
Cover Material	Other, Polycarbonate
Cooling System	Panel air cooling
Base Material	Other, Plastic
Product Type	Other, HMI (Human Machine Interface)
Material	Other, Plastic, Polycarbonate (PC)
Surface Finish	Other, Matte
Standard	UL, cUL, CE, C-Tick, Class I Div 2 Groups A, B, C, D certification
Surface Color	Other, Gray
Rated Voltage	24V DC
Dimension (LWH)	Height: 180 mm, Width: 240 mm, Depth: 60 mm
Application	Industrial process monitoring and control
IP Rating	Other, IP65
Display Type	Other, 5.7 Color STN LCD, 320 x 240 pixels (QVGA)
