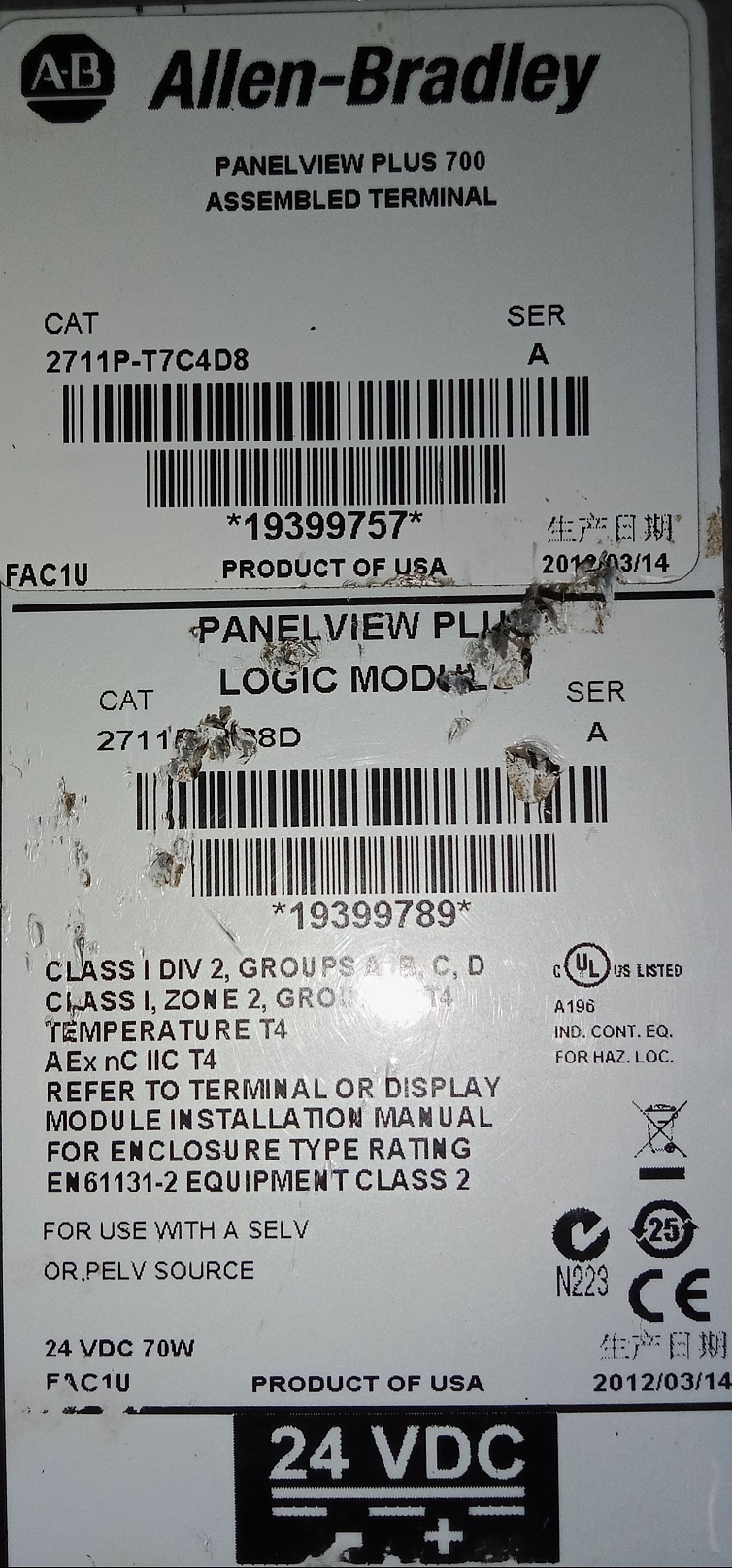

Allen Bradley Panel View Plus 2711p-t7c4d8

Price:

Get Latest Price

Brand Name :

Allen Bradley

In Stock

Product Specifications

Cabinet Material	Polycarbonate, Aluminum
Cooling System	Passive/Convection, No Fan
Operating Voltage	18-32V DC (nominal 24V DC)
Cover Material	Other, Polycarbonate Front Bezel
Rated Insulation Voltage	N/A (info not applicable for display units)
Components	Touchscreen, Serial/Ethernet/USB Ports, Power Supply
Rated Current	2.2A
Features	Touchscreen, Multi-protocol Support, Compact Design, Real-time Clock, Firmware Upgradable
Current Rating	2.2A
Protection Class	Class I, Div 2 groups A, B, C, D (HazLoc listed)
Control System	Programmable Logic Controller (PLC) compatible
Protection Level	Other, IP54 (front), NEMA Type 12, 13, 4X (indoor only)
Thickness	Approximately 56 mm (2.2 in)
Way	Touch Interface
Base Material	Other, Aluminum Back Panel
Panel Type	TFT Color Touchscreen
Connectivity Type	Ethernet, Serial RS-232, USB
Rated Operation Voltage	24V DC
Product Type	Other, Operator Interface Terminal / HMI
Material	Other, Plastic, Aluminum (for enclosure)
Surface Finish	Other, Matte Front, Anodized Bezel
Standard	UL, cUL, CE, RoHS, KC, RCM, EAC certified
Surface Color	Other, Gray
Rated Voltage	24V DC
Frequency (MHz)	50/60 Hz (for AC adapters only)
Maximum Output Current	2.2A (Max power consumption 53W)
Dimension (LWH)	Width 197 mm x Height 148 mm x Depth 56 mm
Application	Industrial Automation, Machine Interface
IP Rating	Other, IP54 (front) / NEMA 4X, 12, 13
Display Type	Other, 7-inch TFT Color, Resistive Touch
