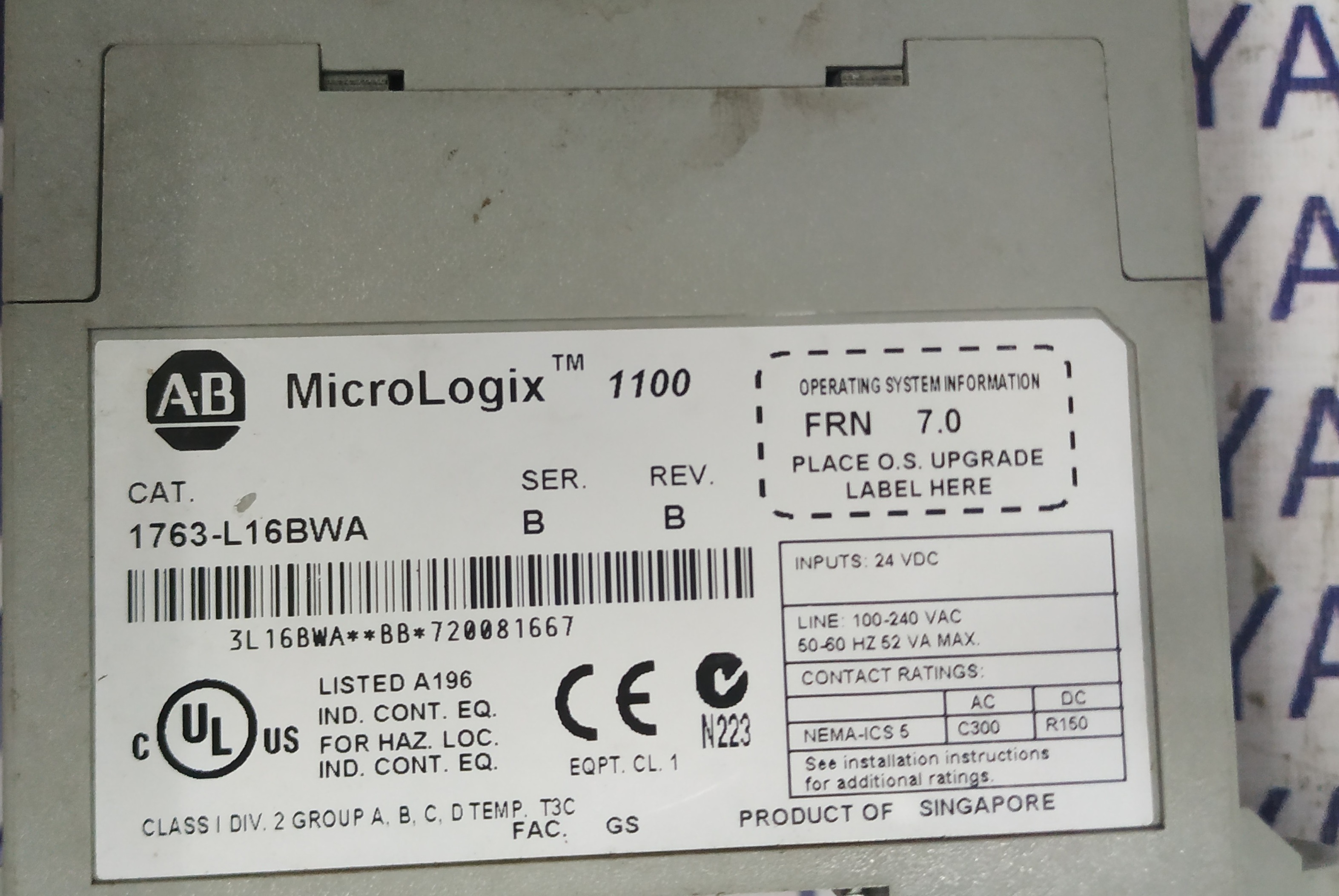

Allen-bradley Micrologix Controller 1763-l16bwa

Price:

Get Latest Price

Brand Name :

Allen-bradley

In Stock

Product Specifications

Panel Type	DIN Rail or Panel Mounted
Thickness	76 mm (Depth)
Current Rating	8A per output max
Features	Compact design, Onboard communication ports, Expandable, Easy programming
Cabinet Material	Polycarbonate
Components	Integrated CPU, Relay Outputs, Power Supply, Digital Inputs/Outputs
Way	16 I/O (10 Inputs, 6 Outputs)
Rated Current	8A maximum per output group
Connectivity Type	RS232/RS485 Communication Ports, DF1, DH-485, Modbus RTU
Protection Class	Class I
Cover Material	Other, Polycarbonate
Protection Level	Other, IP20
Cooling System	Natural Air Cooling
Base Material	Other, Polycarbonate
Rated Operation Voltage	120/240 VAC for Input, 24VDC/Relay Output
Operating Voltage	120/240 VAC
Rated Insulation Voltage	300V AC max
Control System	MicroLogix Modular System
Product Type	Other, Programmable Logic Controller (PLC)
Material	Other, Plastic and Metal (Enclosure: Polycarbonate, Components: Metal)
Surface Finish	Other, Matte
Standard	UL, CE, CSA, KC Certified
Surface Color	Other, Light Gray
Rated Voltage	120/240 VAC
Frequency (MHz)	50/60 Hz (AC Input Frequency)
Maximum Output Current	8A per output, 6A for relay outputs
Dimension (LWH)	118 mm x 87 mm x 87 mm
Application	Industrial Automation, Machine Control, Process Control
IP Rating	Other, IP20
Display Type	Other, LED Status Indicators
