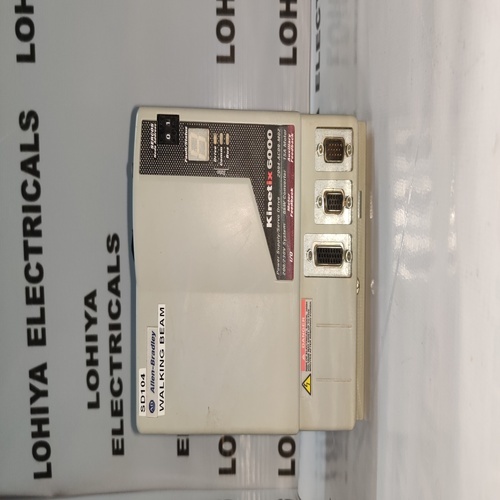

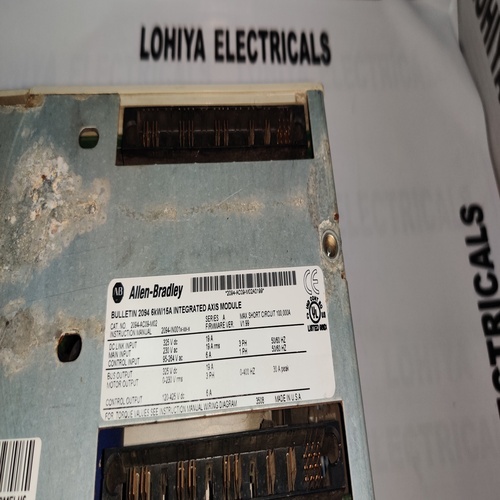

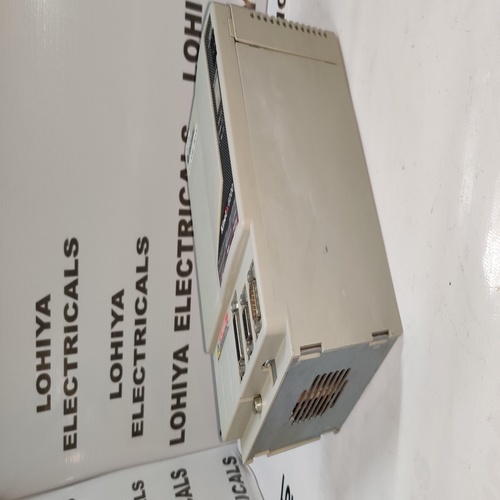

Allen Bradley 2094-ac09-m02 Kinetix 6000 Integrated Axis Module - Advanced Axis Control Technology | Precision Motion Control, High Performance, Reliable Operation

Price:

Get Latest Price

Brand Name :

Allen Bradley

In Stock

Product Specifications

Cooling Method	Natural convection, optional fan cooling
Working Temperature	0AdegC to 55AdegC operating
Features	Safe-off technology, integrated axis control, status LEDs, diagnostic functions
Output Current	2.5 A RMS continuous, 5.0 A RMS peak
Application	Motion control automation, multi-axis servo systems
Operating Temperature	0AdegC to 55AdegC
Connector Type	Removable terminal blocks and plug-in connectors
Phase	Other, Three-phase
Rated Power	1.5 kW
Noise Level	< 70 dB (typical industrial operation)
Output Type	Other, Digital servo drive outputs
Power Supply	AC powered (195-264V)
Rated Current	2.5 A RMS
Current Range	2.5 A RMS continuous to 5 A RMS peak
Power Factor	>0.95 (typical for Kinetix series)
Product Type	Integrated Axis Module
Output Power	1.5 kW continuous, 3 kW peak
Output Frequency	Up to 500 Hz (servo control)
Input Voltage	VM: 195-264V AC, DC bus: 250-670V DC
Voltage Protection	Overvoltage, undervoltage, short circuit, ground fault
Efficiency	High efficiency design (manufacturer rating not specified)
Material	Industrial-grade metal enclosure
Line Regulation	Regulated by input voltage tolerances
Storage Temperature	-40AdegC to 85AdegC
Weight	3.18 kg (approx.)
