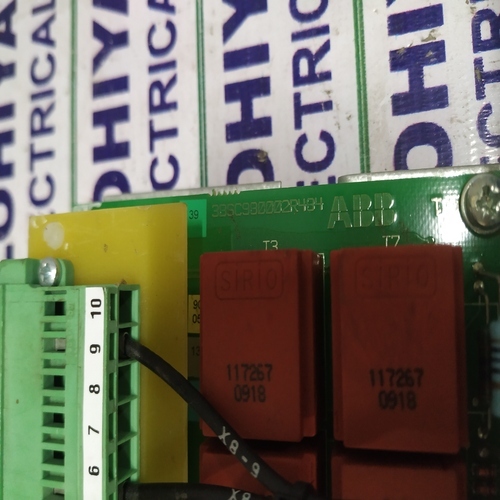

Abb 3bsc980002r484 Control Unit / Datx100 Pulse Transformer Board
Price:
Get Latest Price
Brand Name :
Abb
In Stock
Product Specifications
| Protection Level | Other, For installation in closed panel only |
| Rated Operation Voltage | 24 VDC (typical for pulse transformer boards) |
| Thickness | Approx. 1.6 mm (Board thickness) |
| Panel Type | Mountable Embedded |
| Features | High reliability, Original ABB, Board level protection, Pulse isolation |
| Cooling System | Ambient / Convection (No direct cooling) |
| Cabinet Material | For ABB system rack mounting |
| Control System | ABB MOD 300 / Distributed Control System |
| Rated Insulation Voltage | 500 V (PCB Isolation) |
| Cover Material | Other, None (bare PCB) |
| Components | Transformers, relays, connectors, passives |
| Rated Current | As per original ABB specification |
| Current Rating | Board level; see ABB documentation |
| Protection Class | Class II (as part of protected system) |
| Operating Voltage | 24 VDC typical |
| Base Material | Other, FR4 Fiber Epoxy |
| Connectivity Type | Plug-in Edge Connectors and Terminal Blocks |
| Product Type | Other, Pulse Transformer Board / Control Unit Board |
| Material | Other, PCB (Printed Circuit Board), Electronic Components |
| Surface Finish | Other, Lacquered |
| Standard | ABB Original OEM |
| Surface Color | Green |
| Rated Voltage | 24 VDC (Board level); Main Unit Supported Rating |
| Frequency (MHz) | 50/60 (System) / Not applicable for passive PCB |
| Maximum Output Current | As per ABB Control System Card Specification |
| Dimension (L*W*H) | Approx. 240 mm x 100 mm x 18 mm |
| Application | Process Control, DCS/PLC Interface, Automation Systems |
| IP Rating | Other, N/A (for internal control panel use) |
