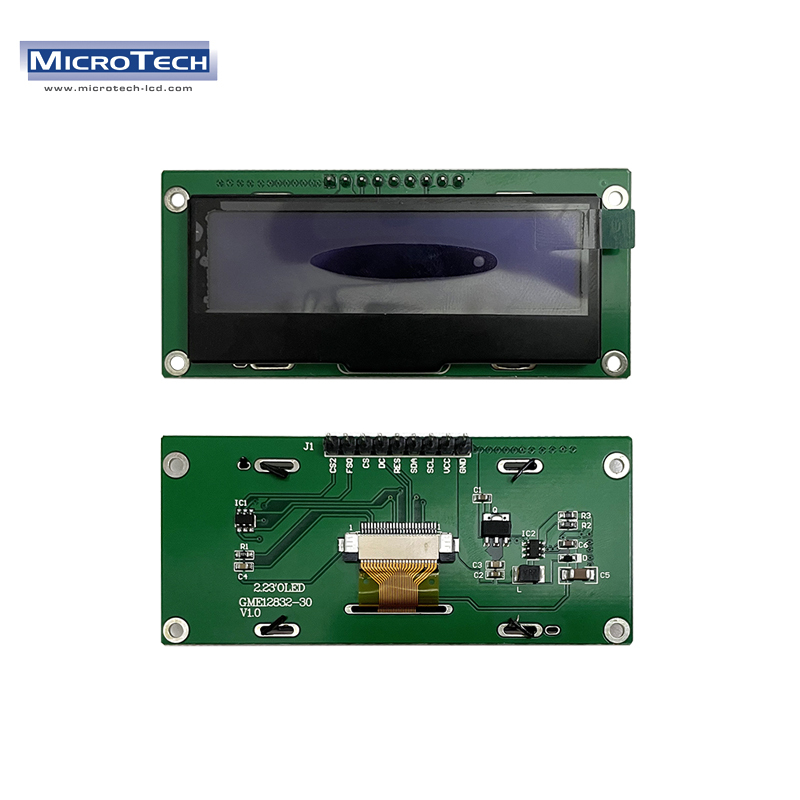

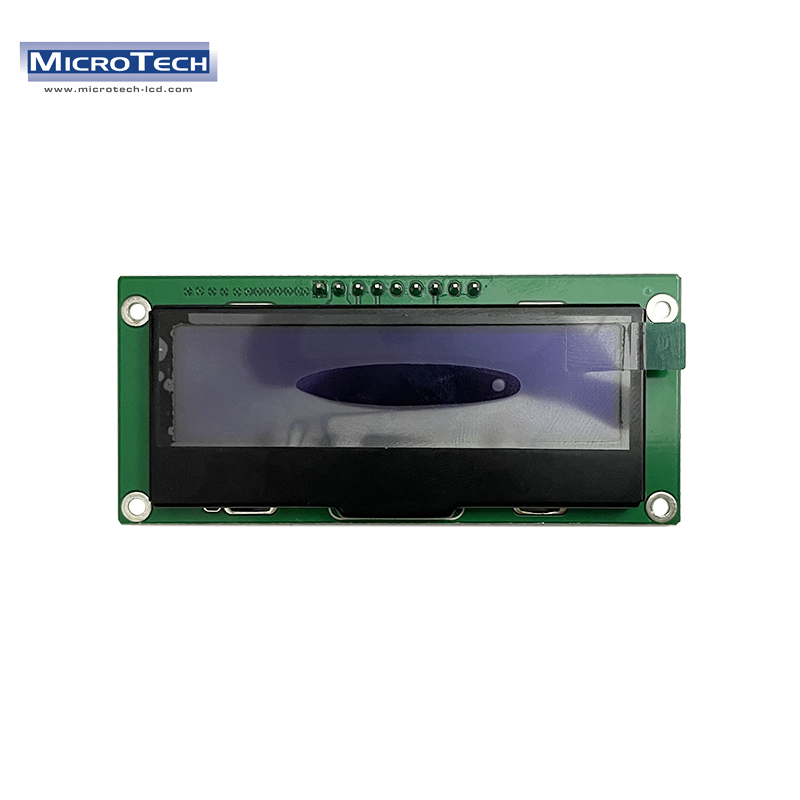

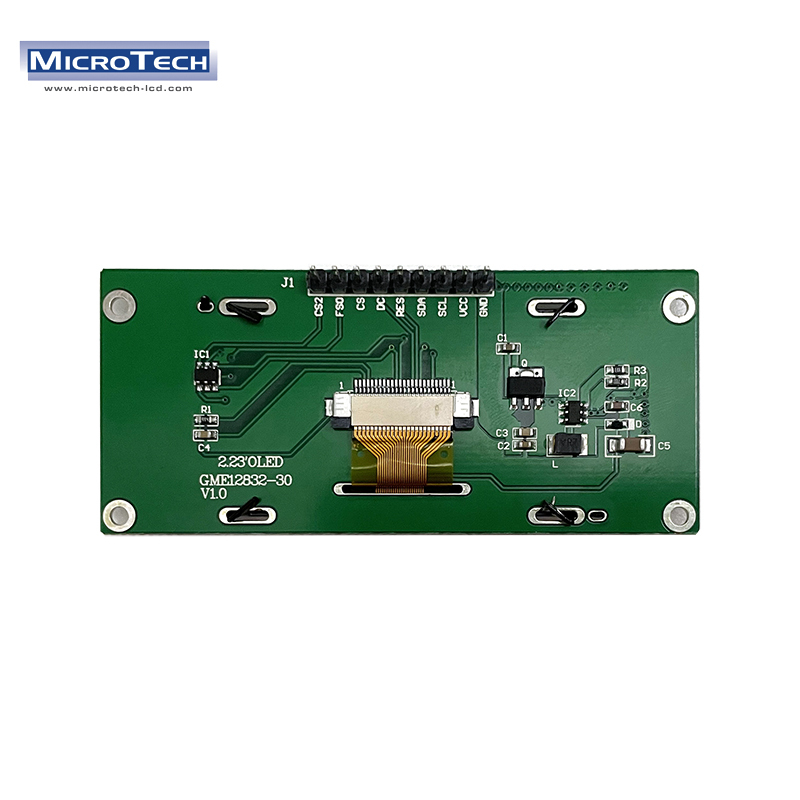

2.23 Inch Pmoled Display 128x32 Ssd1305 Sip Interface Cog Lcd Module - Pm_oled Material, 74.1mm X 33.1mm X 7.5mm Size, -30c To 70c Operating Temp
Share

2.23 Inch Pmoled Display 128x32 Ssd1305 Sip Interface Cog Lcd Module - Pm_oled Material, 74.1mm X 33.1mm X 7.5mm Size, -30c To 70c Operating Temp

Price: 1 USD / Piece

Get Latest Price

Minimum Order Quantity :

2 Piece

Brand Name :

Microtech

In Stock

In Stock

Product Specifications

UsageElectronic devices, Industrial controls
Operating Temperature-40AdegC to +80AdegC
IP RatingIP20 (basic electronic component protection)
FeaturesUltra thin COG design, High contrast, Fast response, Wide viewing angle
Response Time<10I1/4s
InterfaceSIP (Serial Interface Protocol)
Power SupplyDC
ComponentsSSD1305 controller, OLED, FPC
Power SourceDC Supply
Display TypeOther, Passive Matrix OLED
OutputVisual Graphics/Text
InputSerial Interface
Resolution128 x 32 pixels
Product TypePMOLED display module
ApplicationWearable devices, IoT, Medical equipment, Smart instruments
Rated Voltage3.3V
Supply Voltage2.8V ~ 3.3V
Size2.23 inch
Dimension (L*W*H)58.0 x 16.0 x 1.4 mm
FunctionGraphic display module
ColorMonochrome (White) OLED
WeightApprox. 10g
Thickness1.4mm (COG only)
Current RatingTypically <20 mA (in operation)

Product Overview

Key Features

Resolution: 128X32
OLED material: PM_OLED
Color: White
LCM working voltage (VCC): 35V;
OLED screen operating voltage (Vdd) 2.43. 5V
OLED drive voltage rejection Vop: 1213V
Working temperature: -30C70C
Storage temperature: -40C80C
Connection/Driver IC: COG/SSD1305
24P pitch 0.5mm FPC seat
Interface: SPI, with font
Module size: 74.1mm(L)x33.1mm(W)x7.50Maxmm(T)
Visible area (V/A): 57.00mm(L)x15.10mm(W)
Effective area (A/A): 55.02mm(L)x13.10mm(W)
Point distance: 0.43mm(L)x0.41mm(W)
Point size: 0.41mm(L)x0.39mm(W)
A4. Tolerance not noted: 0.3mm;
