What Are Led Pixel Lights?

Introduction

The electronic components of LED Pixel lights are built into a single, prefabricated unit, unlike in conventional LEDs. To utilize them, you need to do nothing more than plug them in. In addition, each LED Pixel has its own digital control chip that can be programmed via a computer. Therefore, the LED Pixel can be controlled entirely through software, just like a conventional computer monitor would be controlled by a psychophysicist via commands supplied by Matlab or Python. To connect a series of LED Pixels, just connect the output wire of one to the input wire of another.

Different Catagories of Led Pixel Lights


1. Strings or Nodes

There is a wide variety of LED pixel sizes and characteristics. Common characteristics include:

It is available in any desired length, although orders with more than 50 LED pixels may necessitate Power Injection due to a number of issues. Remember: Pixel strings should never be strung using their wire as a support like you would with normal light strings. The Led Pixels' waterproofing will be compromised as a result of this. Since they are typically produced to order, you can ask the supplier to make the distance between each unit to a specific measurement.

PVC tubing, EMT electric conduit, plastic strapping, and PixNode strips are common ways to hold up LED pixel strings.

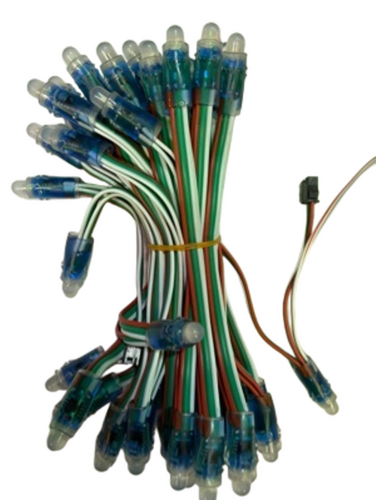

• 12mm pixel light node: This variety of Pixel is by far the most prevalent. Bullet-shaped is a common nickname for them. Inside the casing is a real LED that is 8mm in diameter. The package's outside diameter is 12mm. These enormous advertising display panels were initially intended for in-enclosure mounting.
• 12mm pixel light node: These pixels are available with either a wire exiting the rear of the pixel or one exiting the side of the pixel. Water can get into the pixels of the silicone injection molded units because the wires protruding from the side don't always seal properly.
• Pixel with Bulbs or cover: You can find Pixels that appear more like conventional C7 or C9 incandescent bulbs by purchasing one with a Plastic Lens attached to the RGB LED.
• Other Shapes: Various retailers stock a wide variety of additional shapes, such as spheres, domes, boxes, and more.

2. Strips

Are wire-free, long, flexible PCBs with the RGB LEDs and IC installed directly on them. Many strips are able to be shortened, but you must only make cuts at the indicated points. If you plan on performing Power Injection or slicing the strips, you may need to solder wires to the PCB.

Using flux and a smaller soldering iron can assist you to avoid damaging the flexible PCB's sensitive pads. Pixel Matrix on Flat Surfaces, or the Outlines of Doors and Windows, are Common Uses for Strips.

• Bare Board: There is no coating or protection on these, thus they cannot be used outside.
• Hollow Tube: This standard Pixel Strip design is the most widely used. They consist essentially of a length of bare board pixel strip that has been inserted within a hollow silicone tube. Waterproofing, such as neutral cure GE Silicone II, must be used to seal the ends of the wires where they connect to the PCBs.
• Coated Strips: There are a number of different waterproofing chemicals that can be applied to the bare PCBs. The wires can't be soldered to the PCB or snipped without first scraping away the waterproofing compound.
• Solid Tube: You can also buy the bare PCBs inside of hollow tubes filled with different types of waterproofing materials.


3. Modules

They look a lot like strings but are meant to be attached to a wall, ceiling, or other surface, therefore they usually come with mounting tabs. Brighter than standard strings, due to the use of several RGB LEDs per pixel. The standard operating voltage is 12VDC, which is supported by the vast majority of devices. Since they are typically produced to order, you can ask the supplier to make the distance between each unit to a specific measurement. The epoxy filling them makes them watertight. Their housings might be made of metal or plastic. Lighting tune to signage, outlining huge objects, and backlighting Coro designs are all common use for modules.

Led Pixel Lights Application


LED pixels are present all over the world at events such as light festivals, concerts, arcades, and Christmas light displays. LED strips are the most popular arrangement for LED pixels. My job as a software engineer has required me to spend years developing systems that are fully hidden from view of the end users. When you work on complex systems like this, it can be difficult to describe what you actually do all day to your loved ones at home.

When operating with led pixel light, on the other hand, the consequences of your effort are immediately evident, and everybody can take pleasure in the end product! If you take this class, you will learn how to harness this power to create stunningly amazing works of art that you will be proud to show off to everyone, regardless of their age, from one year old to one hundred years old.

In order to make the most of the LED Pixels within an experiment, it is necessary to have fine-grained control over their actions via a computer. For this, three different systems must coordinate with one another:

• here it is assumed that Matlab is used as the programming environment on the control computer;
• The microcontroller Arduino, with its scripted operation; and
• each LED Pixel's embedded controller.

If the Arduino tries to send serial data back to the computer, the callback function in Matlab will be executed.

Features of LED Pixel Light


The use of an LED display with small pixels comes with a number of features, some of which are listed below:

1. High Brightness Adjustable

The LED display with the small pixels possesses an exceptionally high brightness feature that allows it to function effectively in a variety of lighting circumstances, including those that are present in an area that is both well-lit and gloomy light.

Because the LED screen includes a changeable light detecting system that can track and analyze the light intensity in the environs, this assists in reducing the visual stress that the users have to go through in some of these settings. This is because some of these environments are brighter than others.

2. Flawless stitching

When it is customized, the technology that was developed for the splicing of a massive screen display cannot be fully free from the impact of the physical borders. This flaw can be remedied by utilizing a small pixel pitch LED panel, which flawlessly satisfies the clients' criteria for seamless presentation.

3. High performance

The grayscale of an LED screen with a small pixel pitch and a low brightness is exceptionally high, resulting in a level of clarity that is superior to that of a conventional display. They are able to present the image with increased details while maintaining access to all of the essential information included within it.

4. Faster Response speed & high Refresh frequency

When compared to a large pixel LCD screen, the frequency at which an electron beam scanned the image on a small pixel LED screen is exceptionally high. Because of this, the image will automatically have a greater refresh rate and will be more stable. A lower refresh rate indicates that the picture is less stable, which is tiring to the eyes. Because of this, an LED display with a narrow pixel pitch provides the audience with a solid image that has crisp edges.

5. Amazing Visual Experience

If the screen display has a narrow pixel pitch, then the audience has a better probability of being able to experience an image display in high resolution anytime they want to activate the three-dimensional display form.
