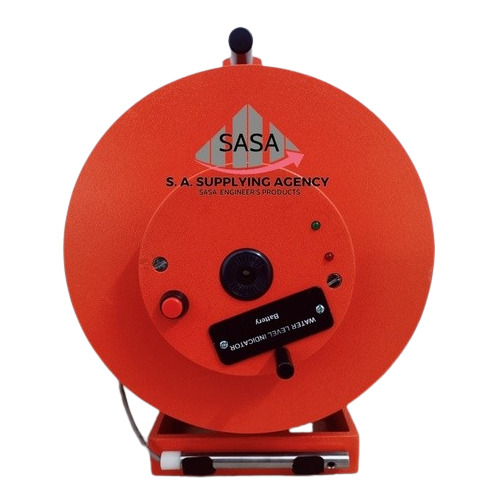

Water Level Indicator - Pvc Coated Steel Measuring Tape 50m/100m/150m/200m Cable Lengths Accurate Led Readings With Audible Tone

We are Making Exporting and Supplying Water Level Indicators in Roorkee Uttarakhand India. a LEWa make Water Level Indicator is a reliable instrument for measuring the water level and total depth in boreholes wells reservoirs etc. For the measurement the bob is lowered to the water level. When touching the level a sensor effects the illumination of a signal lamp & an additional acoustic signal will be released by a buzzer.

When the probe is touching the water-level there is a conductive connection between the tip of the probe and the sensor-body. Thereby a circuit of the lamp and the buzzer will be closed.

Response is seen on LED plus an audible tone is heard. Features include: Standard cable lengths: 100m also available in 50 150 200 meter with marking on every Millimeter Centimeter Meter. Reel-type spool for lowering cable and electrode assembly. Reel is mounted on a stand. Self-contained 9V AA type battery power supply a no danger of shock from an outside power supply. Standard brass electrode. Reel handles are shaped to fit your hands. Accurate of reading. Each Water Level Indicator is supplied with a battery.

Tape Specifications of water level Indicator:

-MATERIAL: PVC Coated Steel Measuring Tape a Two Wire
-STRENGTH is assured through an inner core of extreme tough Glass Fiber and an overlay of protective Poly Vinyl Chloride. The tape breaking point is more than 2000N.
-LEGIBILITY is excellent as all marking are printed on inner steel tape with ultraviolet-fixation permeating ink. Thereby the markings will never come off for years of use.
-Probe Diameter: >15mm
Ordering Guide:

S.No. DescriptionModel No.
1Water Level Indicator with 50m cable lengthWLI-50
2Water Level Indicator with 100m cable length WLI-100
3Water Level Indicator with 150m cable lengthWLI-150
4Water Level Indicator with 200m cable lengthWLI-200
