Washing & Dyeing Machine
Price:
Get Latest Price
In Stock
Product Specifications
| Basket Size | 610X710-1500X3660Mm |
| Capacity | 15-400Kg |
| Dimensions | 1790X815X1050-5400X17300X1750Mm |
| Features | Rugged Design, Long Life, Optimum Performance, Easy Installation, High Efficiency, Auto Controls, Stainless Steel, Cost Effective |
| Heating | Oil/Gas |
| Material | Stainless Steel |
| Motor | 0.37-15Kw |
| Volume | 200-6465Ltrs |
| GSTIN | 0% |
Product Overview
Key Features
Since our incorporation, we have been engaged in manufacturing, exporting and supplying Washing & Dyeing Machine. This machine is suitable for washing or milling of garments, cotton & woolen sweaters, denim or enzyme wash, bath mat dyeing and dyeing of knitted garments. Our offered machine is manufactured using supreme quality components under the supervision of our diligent professionals. In order to fulfill the variegated requirements of our clients, provided machine is made available in various specifications. Our clients can avail this Washing & Dyeing Machine from us at cost-effective prices.
Features:
Optimum performance
Rugged design
Long service life
Heat exchanger with automatically controlled oil or gas burner
Washing & Dyeing Machine

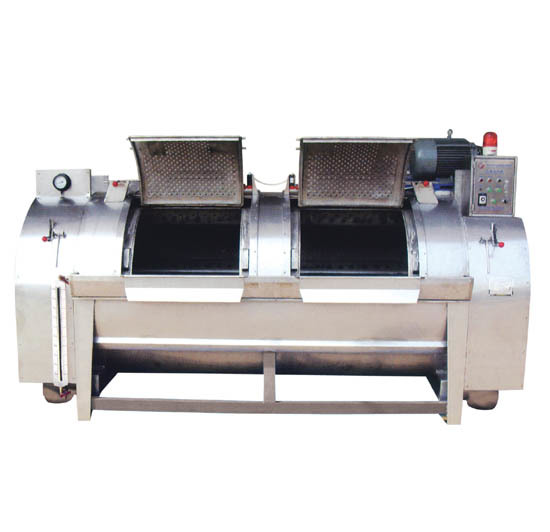

Side loading washing machine is suitable for washing/milling of garments, cotton & woollen sweaters. Denim/enzyme wash, bath mat dyeing and dyeing of knitted garments,
GURUSON side loading washing machine has auto timed, auto reverse, auto digital temperature control, and auto stop features with gear box drive in all models and sizes, The body of the machine is fabricated Out of stainless steel 304/316. Every joint is weided with argon weiding. The inner drum basket is made of perforated S.S. Sheet having single smooth and fine joint. Our machine is designed for minimum possible liquor ration.
Optional Features :
Fully automation with Programmable Logic Controller variable Frequency Drive (VFD) with required software.Specially designed for indirect heating system. Fully stainless steel(316) heat exchanger with automatically controlled oil/gas burner. High efficiency and easy to install.
Detailed Technical Specification Of Side Loading Washine Machine
| Model | Capactiy | Basket Size Volume | Loading Door Opening No. Of Doors | Drive Motor | Water Connection Water Consumption Per Dip In Ltr | Drain |
|
|
|
|
|
| Steam Connection | Electric | Diesel Fired Temp. Raise Per Min. | Thermic Fluid Conn. Consumption | Overall Dimensions (WXDXH) | |||||||
| GWS-15 GWS-15 GWS-15 | 15 KG. | 610X710 200Ltrs. | 520X300 1 | 0.37KW | 1Aca A BSP 85 | 3Aca A (75mm) | 15mm (0.5Aca A BSP) 8-10KG/HR. | 6-12KW | 1-15Ltrs. | N.A. | 1790X 815X1050 |
| GWS-30 GWS-30 GWS-30 | 30KG. | 760X950 420Ltrs. | 520400 1 | 0.75KW | 1.5Aca A BSP 210 | 3Aca A (75mm) | 15mm (0.5Aca A BSP) 15-20KG/HR | 12-18KW | 1.5-2Ltrs./jr Temp rise 2oC/min | N.A. | 1860X970X1200 |
| GWS-60 GWS-60 GWS-60 GWS-60 | 60KG. | 950X1350 950 Ltrs. | 665X450 1 | 2.25KW | 2Aca A BSP 450 | 4Aca A (100mm) | 15mm (0.5Aca A BSP) 30-40KG/HR. | 24KW | 3-4Ltrs./hr Temp rise 2oC/Min. | 1Aca A X1Aca A 22000KCAL/hr | 2515X1200X1350 |
| GWS100 GWS100 GWS100 GWS100 | 100KG | 1170X1350 1400Ltrs. | 665X470 1 | 5.5KW | 2Aca A BSP 700 | 4Aca A (100mm) | 15mm (0.5Aca A BSP) 60-80KG/HR. | 36KW | 5-6.5Ltrs/hr Temp rise 2oC/Min | 1Aca A X1Aca A 43000KCAL/hr | 2700X1470C1680 |
| GWS200 GWS200 GWS200 | 200 KG. | 1220X2240 2850Ltrs. | 665X470 2 | 10KW | 2Aca A BSP X 2Nos 1400 | 6Aca A (150mm) | 20mm X 2(0.75Aca A BSP) 160-180KG | N.A. | N.A. | 1.5Aca A X1.5Aca A 95000KCAL/hr | 4000X1475X1680 |
| GWS300 GWS300 | 300KG. | 1220X3660 4275Ltrs. | 665X4703 | 15.0KW | 2Aca A BSP X 3Nos 2200 | 8.8Aca A (224mm) | 20mm X 2 (0.75Aca A BSP) 200-250KG/HR. | N.A. | N.A. | 2Aca A X2Aca A 135000KCAL/hr | 5400X17300X1750 |
| GWS400 GWS400 | 400KG. | 1500X3660 6465Ltrs. | 665X470 3 | 18.5KW | 2Aca A BSP X 3Nos 3250 | 8.8L (224mm) | 20mm X 3 (0.75Aca A BSP) 300-350KG/HR. | N.A. | N.A. | 2Aca A X2Aca A 190000KCAL/hr | 5600X2010X2030 |
