Star-7 Elite Research Trinocular Microscope - Sturdy Aluminum Die-cast Stand, 220mm X 180mm Double Plate Stage, 40x-1000x Magnification, 3.5w Led Illumination

Star-7 Elite Research Trinocular Microscope - Sturdy Aluminum Die-cast Stand, 220mm X 180mm Double Plate Stage, 40x-1000x Magnification, 3.5w Led Illumination

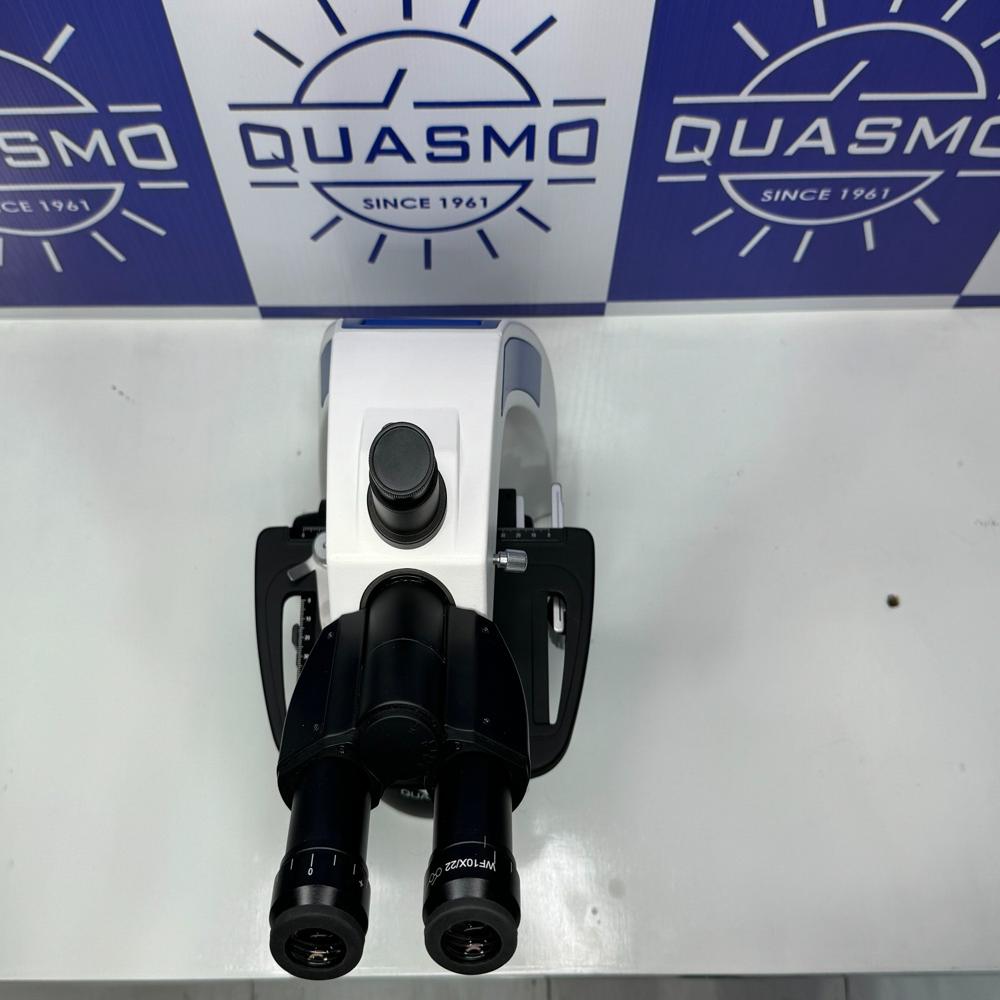

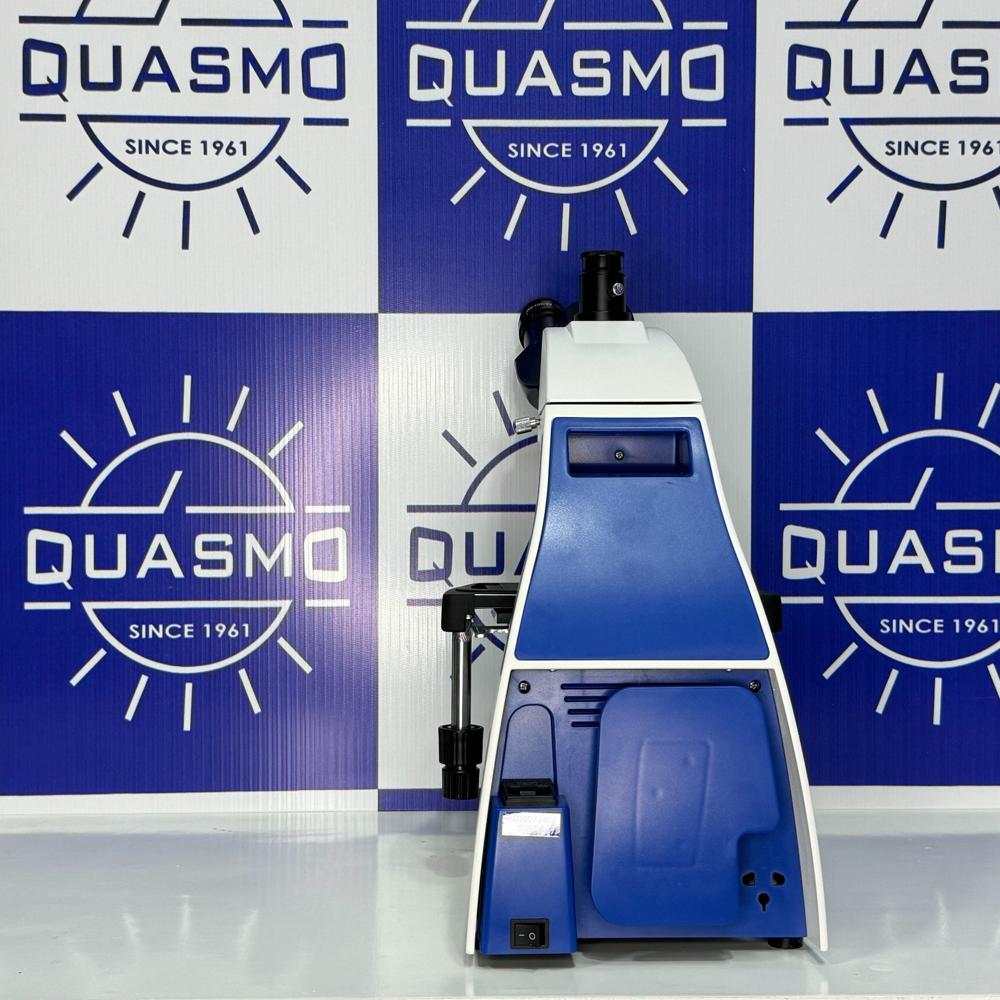

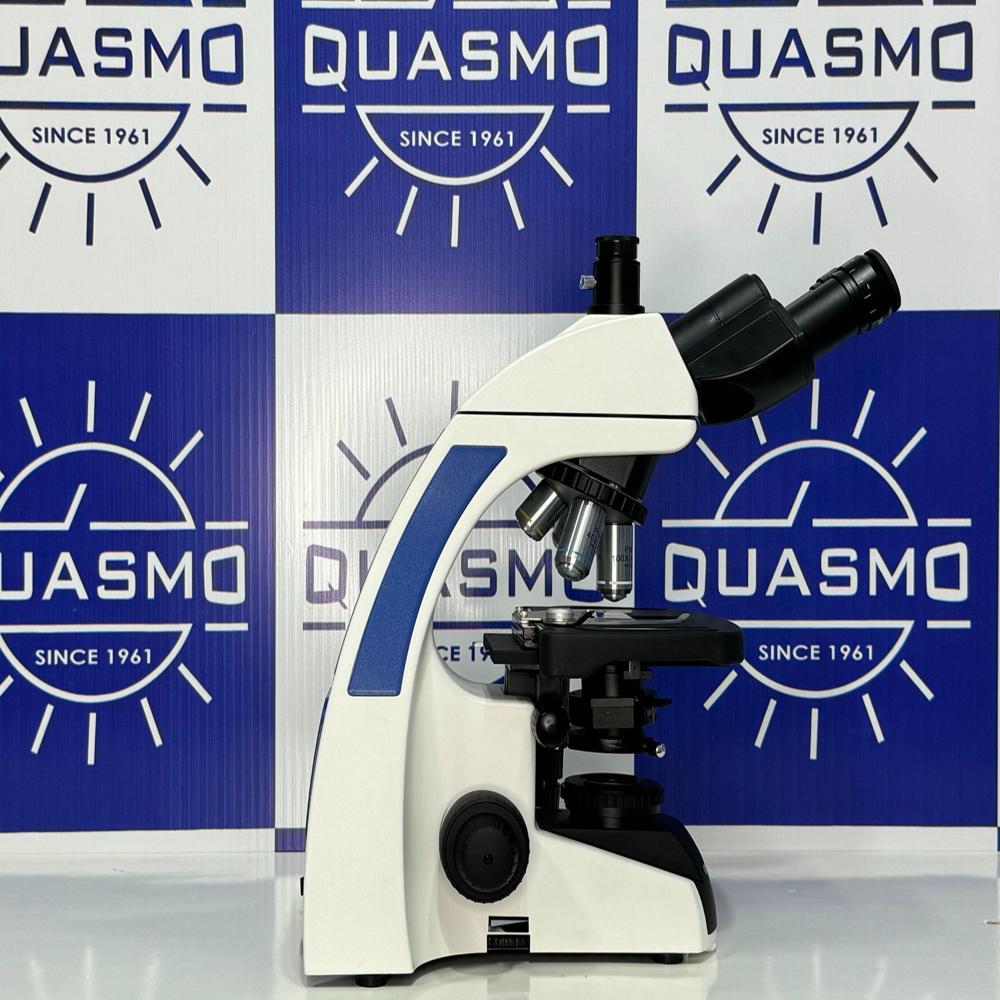

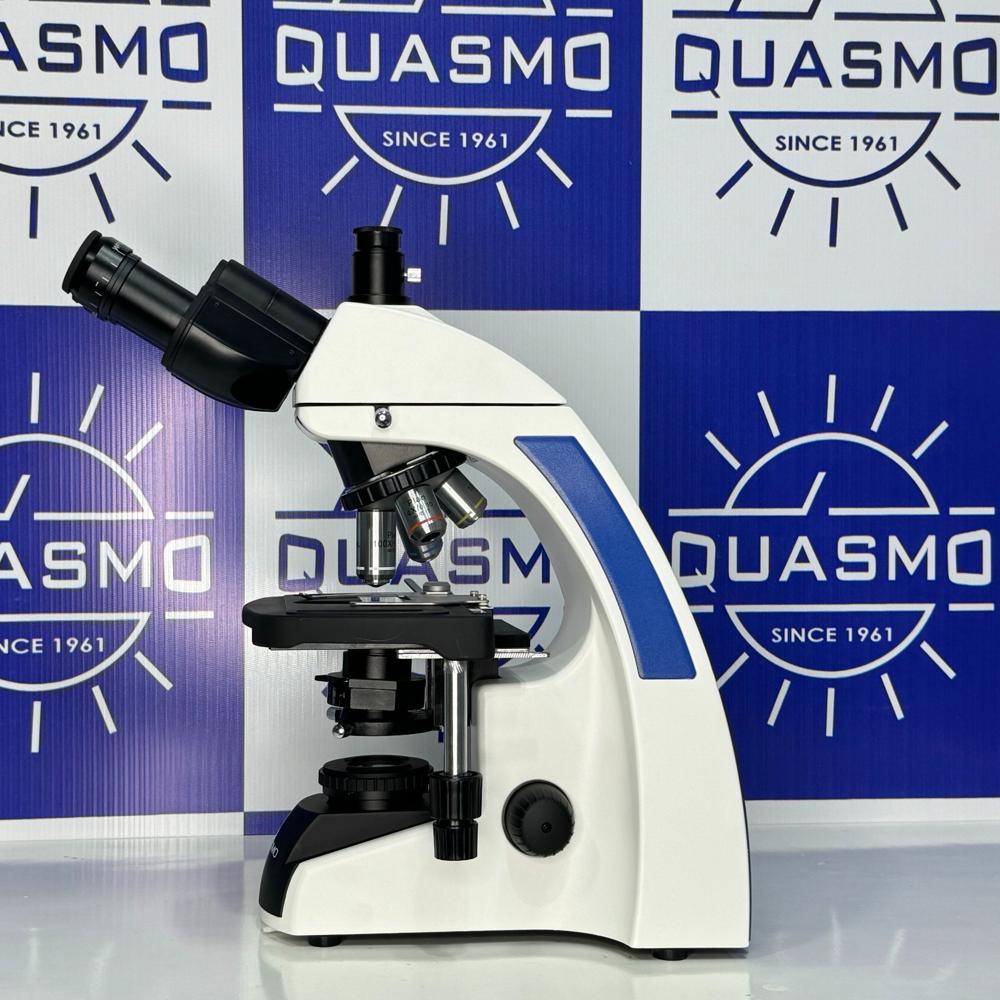

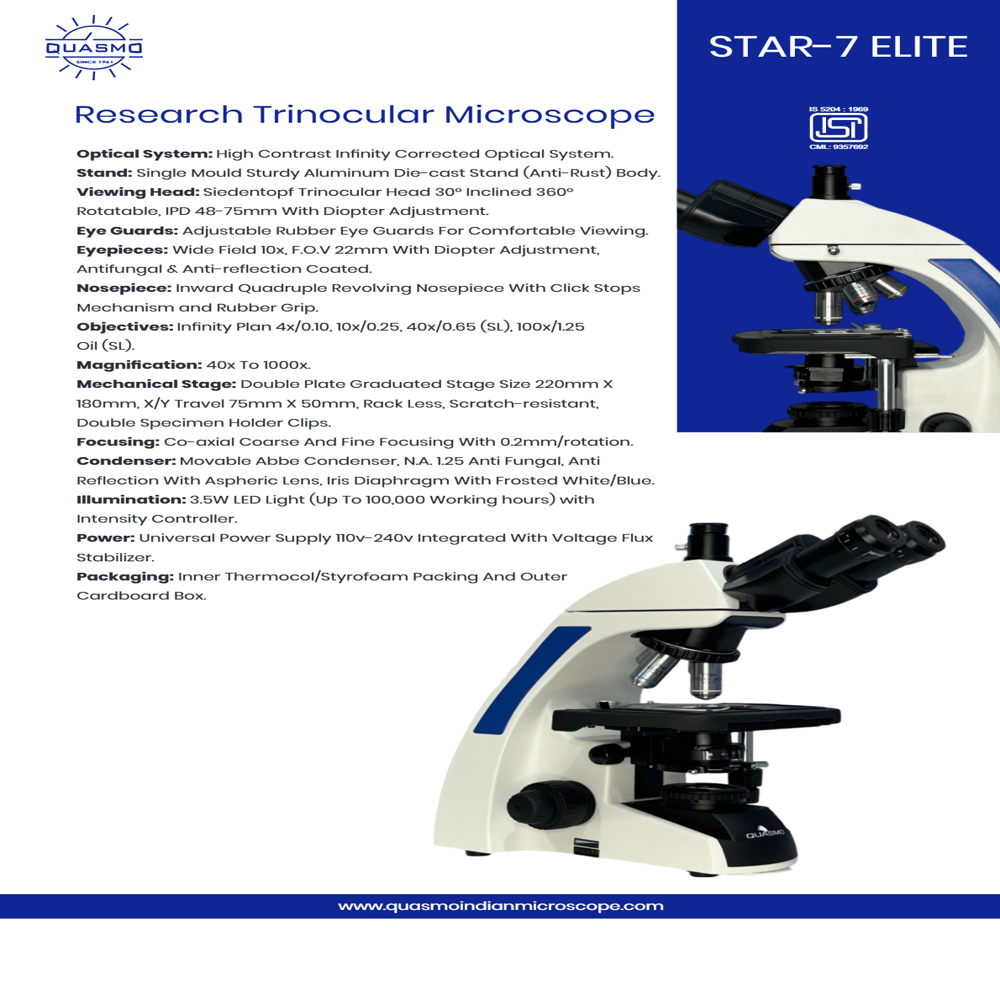

Name: Star -7 Elite Research Trinocular Microscope
Price: 70800 INR
Availability: InStock

Price: 70800.00 INR / Piece

(60000.00 INR + 18% GST)

Get Latest Price

MRP:

70800.00 INR / Piece

Weight :

7.00 Kilogram

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Product Specifications

Focus System	Coaxial coarse and fine adjustment system with tension control.
Spare Parts	Supplied with dust cover, user manual, power cord, and default eyepiece/objective covers.
View Head	Trinocular, inclined 45Adeg, rotatable 360Adeg.
Features	Trinocular head for simultaneous viewing and imaging, coaxial coarse/fine focus, LED illumination, mechanical stage, widefield eyepieces, robust metal construction, suitable for research and education.
Theory	Other, Research Trinocular Microscope with advanced optical performance suitable for laboratory and research applications.
Drawtube	Other, Trinocular, 360Adeg rotatable to accommodate camera attachment and comfortable viewing.
Sensor	Compatible with multiple camera sensors for imaging (sensor/camera not included, adaptable for C-mount digital cameras).
Resolution	Dependent on camera attached (microscope optics support high-resolution output).
Interface	Trinocular port for camera interface; standard mechanical stage controller interface.
Frame Rate	Dependent on attached digital camera (commonly up to 30 fps).
Focal Distance	Adjustable; ergonomic focusing with fine and coarse controls.
Magnification	40x to 1000x total magnification (using supplied objective and eyepiece combination).
Dimensions	Approx. 430 x 270 x 180 mm (HxWxD).
Focus Range	Coarse: approx. 30 mm; Fine: approx. 0.002 mm precision per division.
Eyepieces	Paired Widefield 10x (18 mm field of view).
Eyepiece Tube	Inclined at 45Adeg, interpupillary distance adjustable from 55~75 mm.
Illumination	Built-in LED/Kohler illumination with variable intensity control.
Coarse Adjustment Range	Approx. 30 mm coarse movement.
Fine Adjustment Range	0.002 mm precision per division.
Working Stage	Mechanical stage with 130 x 140 mm working area, double-layered and graduated.
Still Image Capture Resolution	Dependent on camera used (support for high-resolution digital cameras).
Video Capture Resolution	Dependent on camera used (typically up to 1920x1080 or higher).
Image Format	Dependent on camera (compatible with common formats: JPEG, TIFF, BMP, via camera interface).
Interpupillary Distance	55~75 mm adjustable.
Objective Achromatic	Achromatic objectives: 4x, 10x, 40x (S), 100x (S, Oil).
Condenser	Abbe condenser N.A. 1.25, with iris diaphragm and filter holder.
Light Source	3W LED illumination, with intensity control.
Payment Terms	Cash Advance (CA), Cash in Advance (CID)
Supply Ability	50 Per Week
Sample Available	Yes
Sample Policy	Contact us for information regarding our sample policy
Packaging Details	Styrofoam Packing
Main Export Market(s)	Asia, Australia, Central America, North America
Main Domestic Market	All India
Certifications	Certification: Our company is CE, BIS, NSIC, MSME, U.S. FDA, IEN ISO/IEC 17020, ISO 13485:2016, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, ISO 9022-11:2015, EN 12469:2000, IEC 60601-1:2024, IEC 61010-1:2010, IEC 61010-2-040:2020, IEC 60601-2-52:2009, BIFMA: 3 CERTIFIED, ROSH, WHO GMP, U.S. FDA, NSF-49, ANSI-49, CE, UL 61010-1, AIOTA, ISO 19012-1:2013, EN 60529, EN 55014-1:2000 certified
Moq	1
Price Type	fixed
MRP	70800.00 INR
Weight	7.00 Kilogram
Product Unit	1 Piece/Pieces
Price	60000.00 INR (Approx.)
Currency	INR
Returnable	No
Shipping Type	actual
Brand Name	QUASMO
Pkg Box Breadth	1.00 cm
Pkg Box Length	1.00 cm
Stock Quantity	10
Mop	1
GSTIN	18%
Unit Type	Piece/Pieces
Pkg Box Height	1.00 cm
Packsize	1
Minimum Order Quantity	1
Minimum Ordered Packs	1
