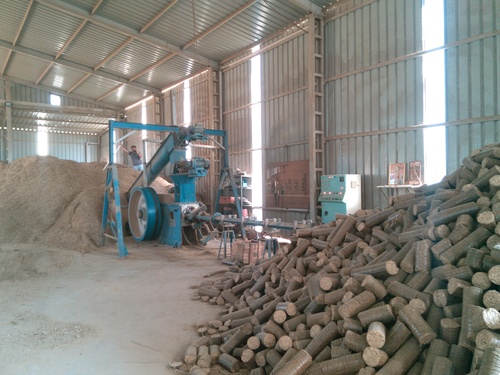

Customized Accessories Radhe_white Coal Manufacturing Machine

With More than 25+ Years of Domain Experiance, Radhe Engineering Co is a Pioneer & Leader in;



• Biomass Briquetting Machine
• Biomass Pellet Machine-16mm & 25mm

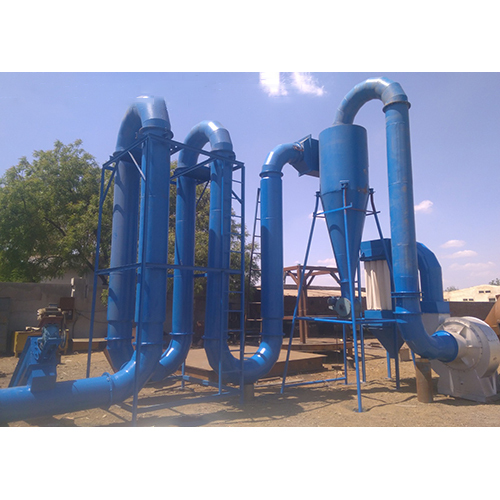

• Biomass Dryer - Flash Type
• Biomass Hammer Mill/Wood Dust M/C

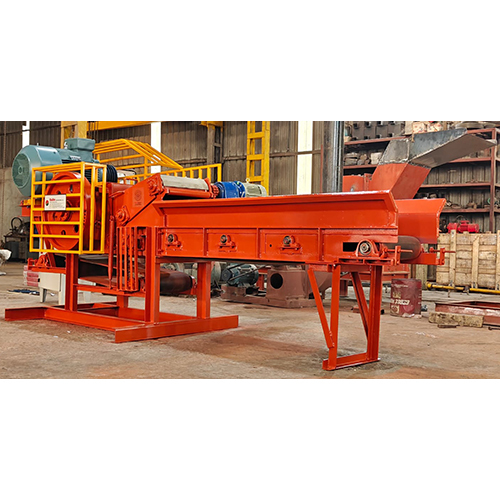

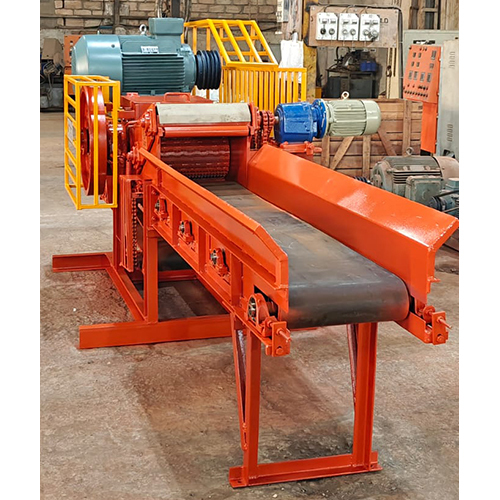

• Biomass Drum Chipper (For Making Wood Chips).



Application: Biomass Briquetting Plant is for converting agro forestry waste (Bio-mass) to Briquettes (Bio-coal).

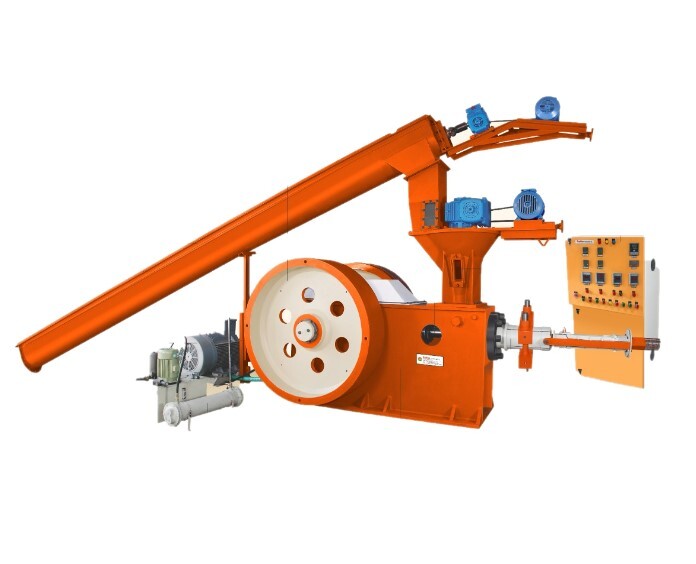

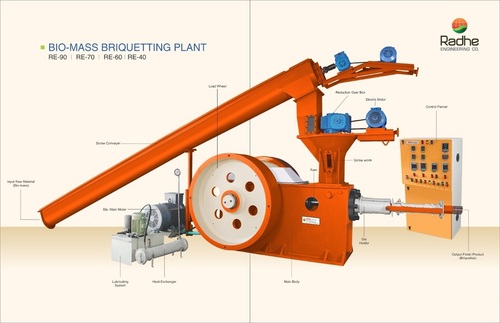

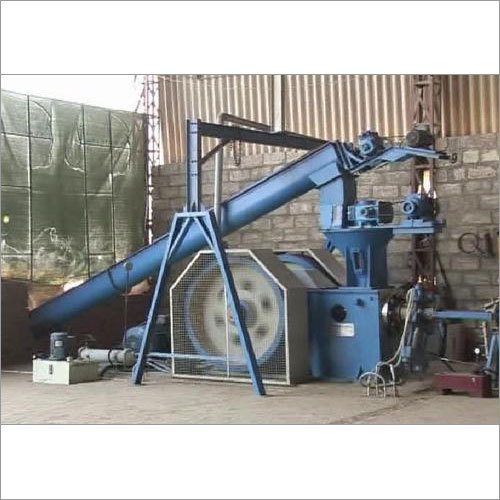

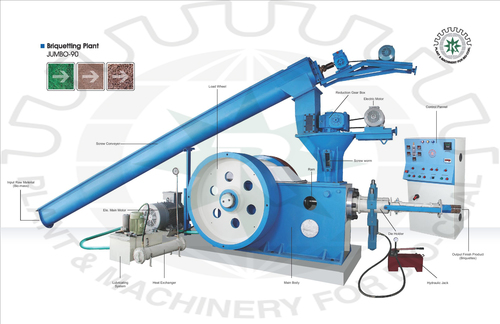

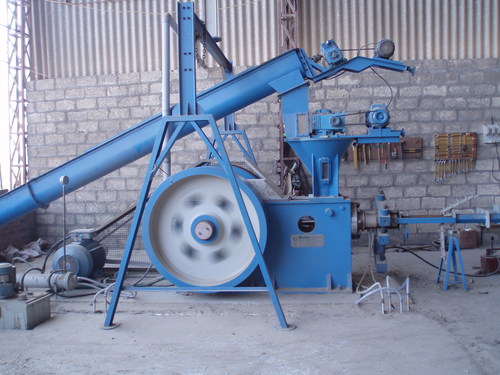

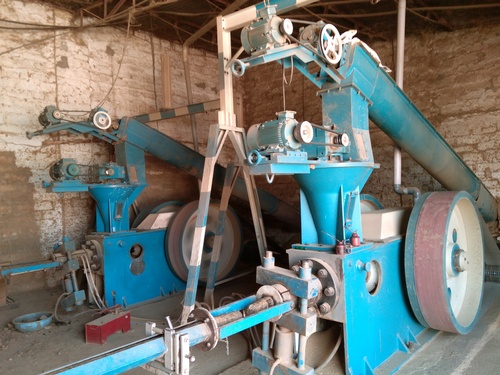

Description: The Briquetting Plant is a ram type press designed for continuous heavy-duty operation with two load wheels. One of the load wheels acts as a pulley, and driven by the main motor through a flat belt. Forced lubrication is provided by oil lubrication system which gives a longer life to the bushes.

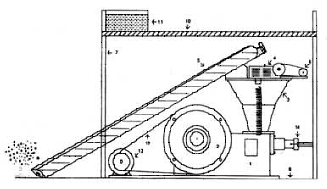

Dry agro - forestry waste as a raw material is fed through the screw conveyor to Kupy by means of vertical screws, with its own-geared motor. It pre-compress and forces the material downward into the feeder box. From the feeder box the material is forced by the Ram through Taper die and due to high pressure & heat, raw material (Biomass) is converted into solid cylindrical briquettes. Finally finished briquettes come out from die holder and passes through natural cooling lines.

During Process lignin content in the raw material (Biomass) is transformed into liquid form & acts as a natural binder. Therefore it is called the Binder less Technology.

Super-60 Model is ideal for low production and best for waste management in agro and wood industries. If raw material ( Biomass) is available in powdery form, so this smaller model is suitable to convert Briquettes.



Features:

• Standard genuine parts with applicable MOC and process

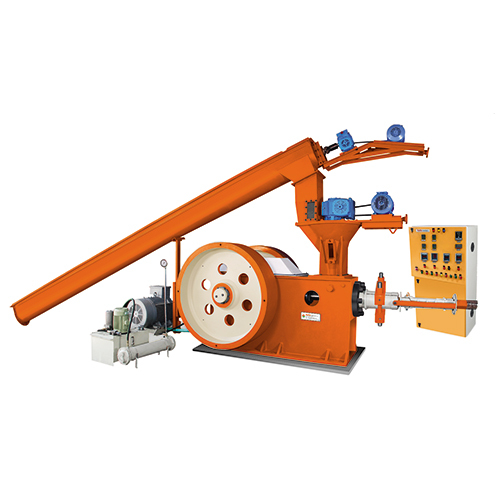

• Compact but ideal design reference to Jumbo-90
• Temperature sensors to all bushes to prevent life of bushes.
• Auto control feeding as reference to main motor load and auto restart
• VFD to screw conveyor to change speed of feeding
