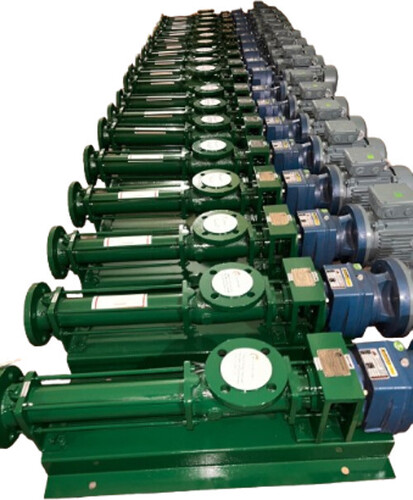

Progressive Cavity Pump By Bharati Solutions

Our Progressive Cavity Pump features single helix metallic rotor and a double helix elastomer stator. Pumping principle establishes sealing lines along the rotor's axis, ensuring stability in both static and dynamic conditions. With rotation of rotor within the stator, fluid-filled cavities progress seamlessly from suction to discharge, providing a uniform, metered, and non-pulsating flow. Key Benefits: Positive Displacement: Generates progressive cavities for a consistent flow, independent of rotational speed, with capacity proportional to speed. Self-Priming: Inherently self-priming, operates on snore, eliminating the need for a foot valve. Non-Clog Operation: Effectively handles solids in suspension or high-solid-content media without the risk of clogging. Less NPSH Requirement: Demonstrates effectiveness in high vacuum conditions, with suction lift capabilities up to 9 meters. Low RPM: Minimizes degradation of shear-sensitive media, accommodating highly viscous materials. Two-way Operation: Efficiently performs in either direction due to reversible rotation capabilities. Quiet Operation: Rotors turning inside a resilient stator ensure minimal noise during operation. Isolated Bearing Housing: Enables contamination-free fluid pumping. Universal Joint Coupling: Superior to conventional joints, withstands angular loads and high axial forces, making it ideal for Progressive Cavity Pumps. Shaft Sealing: External stuffing box for hassle-free maintenance of Gland Packing or Mechanical Seals without the need to dismantle the bearing housing. Applications: Refineries and Petrochemicals Chemicals and Fertilizers Paints & Varnish Man-Made Fibers Natural and Synthetic Rubber Mining and Construction Starch, Vegetable Oils Sanitary, Ceramics and Refractories Cellulose Sugar and Distilleries Soap and Detergents Cosmetics and Toiletries Pulp and Paper Effluent, Waste and Sewage Water Treatment Fisheries Steel Alternative Energy (Biogas, Ethanol)
